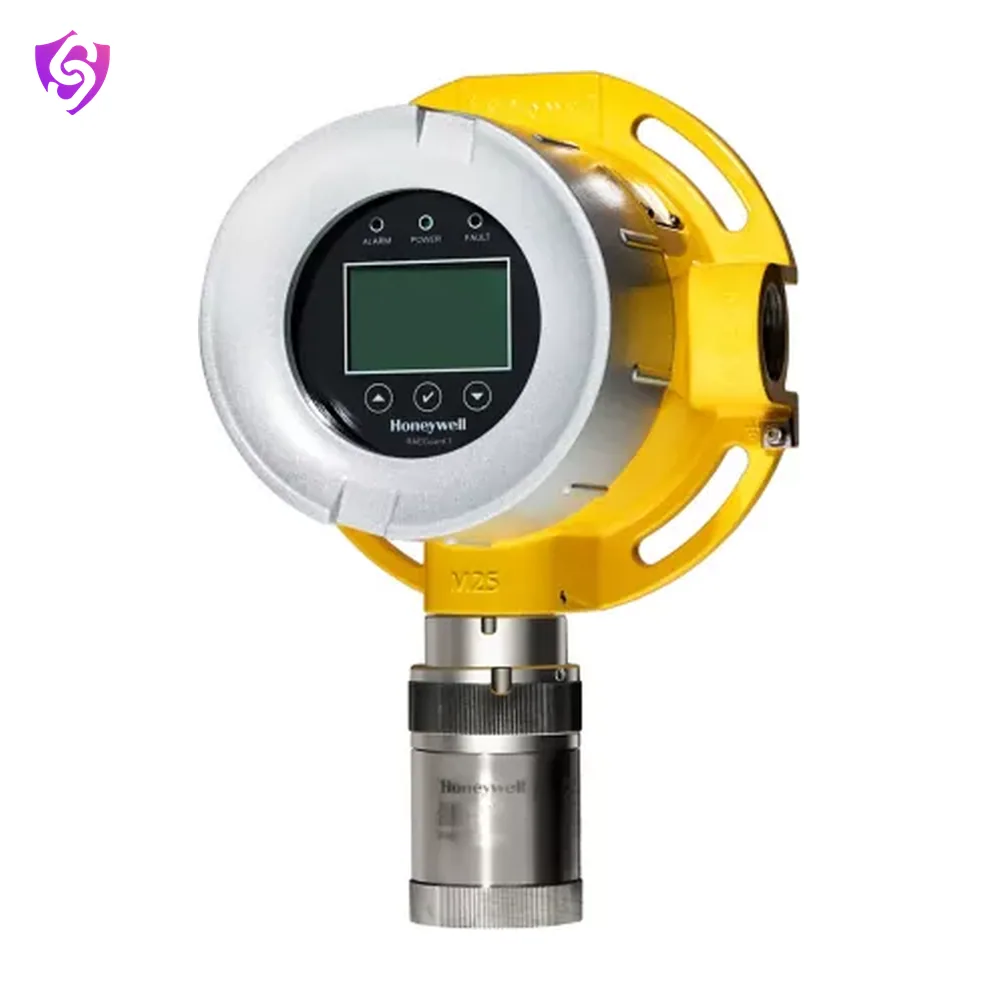

RAEGuard 3 Gas Detector

Name: Honeywell RAEGuard 3 Gas Detector
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXEN 50270IEC 61000IECEX

Specifications

Brand	Honeywell
Weight range	5000 / Aluminum Alloy: 3.0 kg / Stainless Steel: 5.0 kg
Sensor Range	0 to 500 ppm
Output Signal Range	-350 ± 50
Humidity Range	0 to 95% RH (Non-Condensing) / LEL/NDIR: 0 to 95% RH (Non-Condensing) / Toxic and Oxygen: 15 to 95% RH (Non-Condensing)
Digital Communication Ports	Modbus RTU / RS485
Relay Output Configuration	(3) 2A @30 VDC
Operating Life	2
Wireless Communication	Bluetooth
Mounting	Pipe / Wall
Conduit Entries	(2) 3/4 in NPT
Communication	Modbus RTU / RS485
Minimum Temperature	-40˚C
Storage Temperature	-20 to +50°C
Analog Output Signal Current	4 to 20 mA
Operating Current	4 to 20 mA
Electrical Connection	5 Terminals with Wire Diameter 0.5 to 2.5 sq.mm
Power Consumption	5.5W
Operating Voltage	24 VDC
Standards	ATEX / China: Ex, CPA, CCCF / EN50270:2015 / EU: CE, EMC / IEC 61000-4-5 / IECEx / TUV SIL2
Ingress Protection	LEL/NDIR: IP66 / Toxic and Oxygen: IP66/67
Repeatability	<2%
Measuring Principle	Amperometric 3-Electrode Sensor
For Use With	Use with a Wide Range of Applications for the Detection of Flammable, Toxic and Oxygen Gas Hazards
Application	Automotive Industry / Chemical Industry / Chemical Storage / Food and Beverage Production / Laboratories / Oil and Gas Pipelines and Pumping Stations / Pharmaceutical Plant / Power Plants / Refineries / Steel Plants / Utilities / Waste Water Facilities
Enclosure Material	316 Stainless Steel / Aluminum Alloy
Industry	Energy / Healthcare / Logistics & Warehouses / Retail
