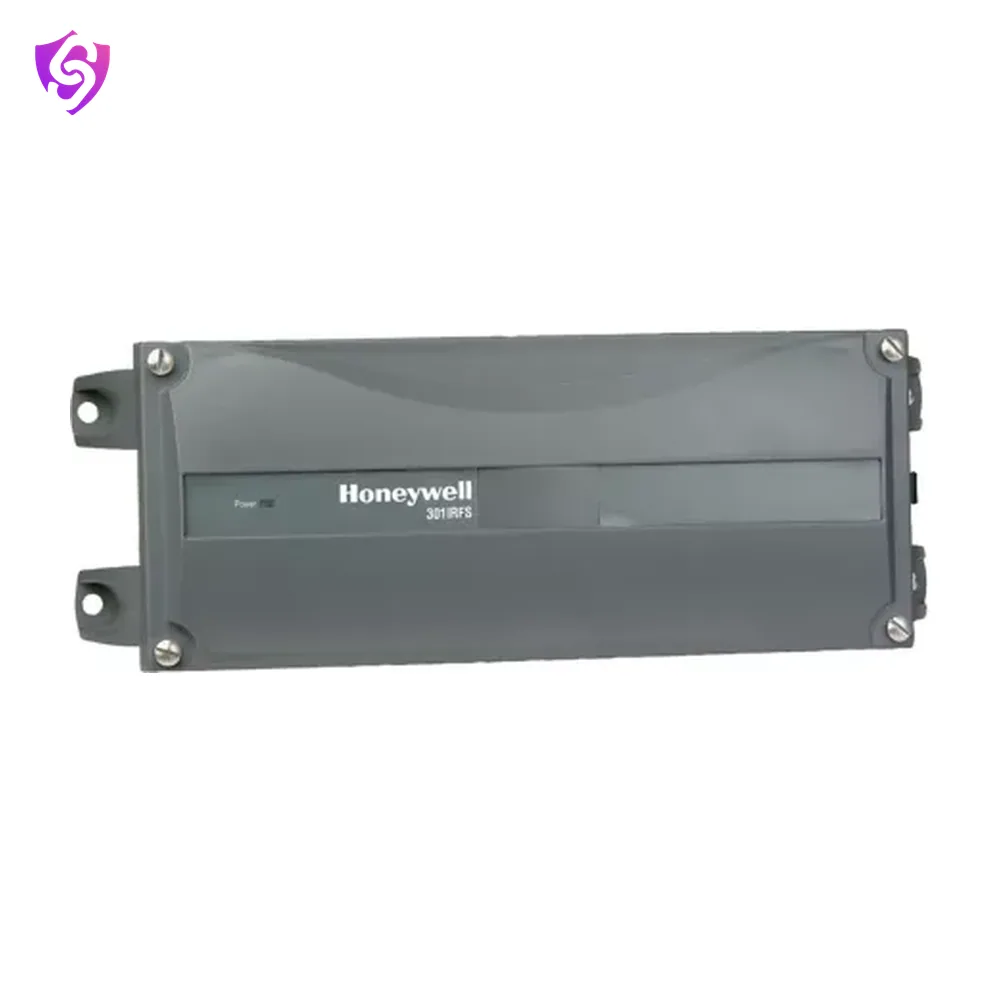

301IRF Refrigerant Gas Detector
Once signed in, you may be able to access additional documents for your account.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Alarm Type | Audible and Visual |
| Alarm Included | Yes |
| Display Included | No |
| Relay Included | Yes |
| Sampling Pump Included | No |
| Sensors Included | 1 |
| Visual Indicators | Failure Indication: LED will Remain ON / Normal Operation: LED Blinks According to the Sensor Addresses on the 301EM-20 |
| Measuring Principle | 3-Electrode Electrochemical |
| Weight range | 2.33 lbs |
| Overall Width | 11 in |
| Overall Height | 4 in |
| Overall Depth | 2.5 in |
| Sensor Range | 0 to 1000 ppm |
| Humidity Range | 0 to 95% RH (Non-Condensing) |
| Number of Analog Outputs | 1 |
| Sensing Method | Infrared |
| Operating Life | 5 |
| Accuracy | ± 40 ppm @500 ppm |
| Number of Relay Outputs | 4 |
| Mounting | Rack / Wall |
| Warm Up Time | 15 min |
| Minimum Temperature | 0°C |
| Batteries Required | No |
| Batteries Included | No |
| Material | ABS Polycarbonate |
| For Use With | 301EM-20 |
| Maximum Analog Input Supply Voltage | 12 |
| Maximum Analog Input Supply Current | 2 A |
| Industry | Energy |
Key features
- State-of-the-art infrared sensor technology
- Low-profile and rugged construction for low mounting in chiller/mechanical room
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
