Honeywell

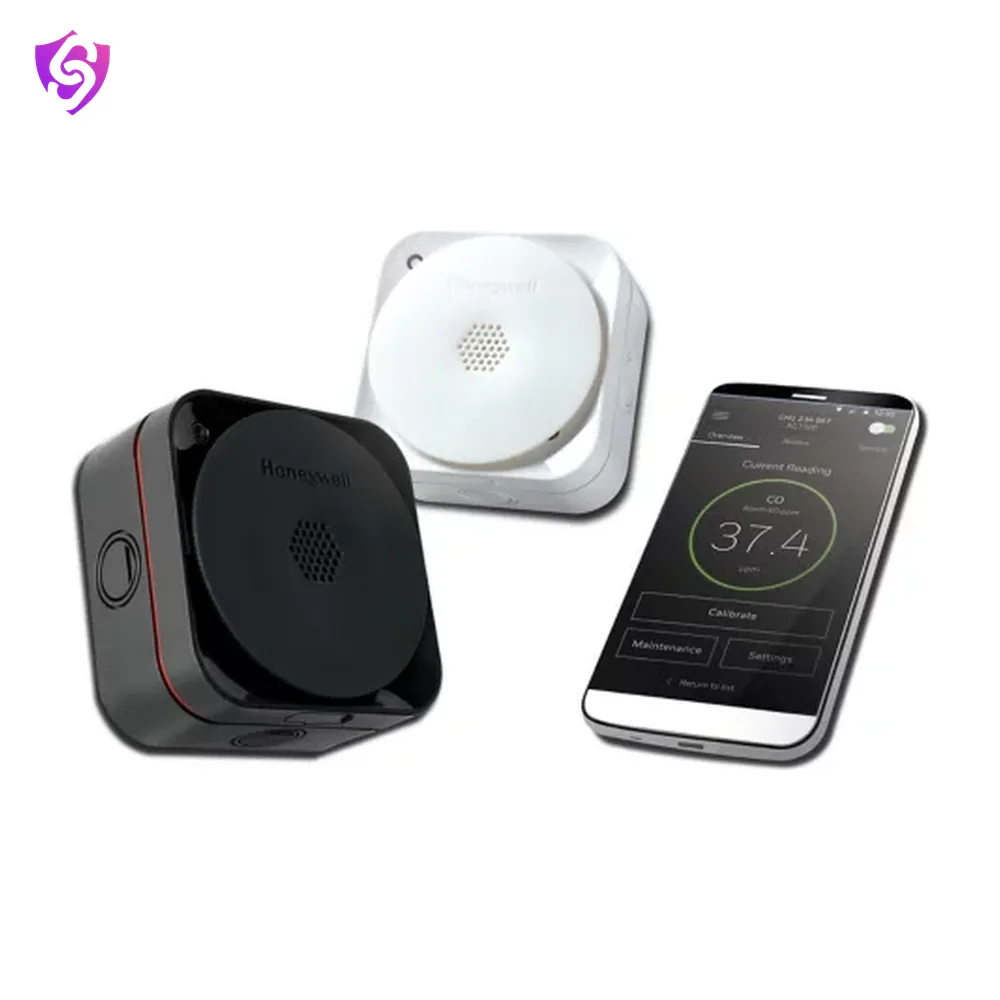

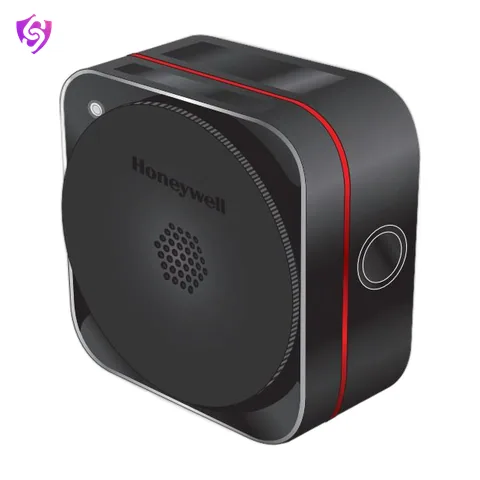

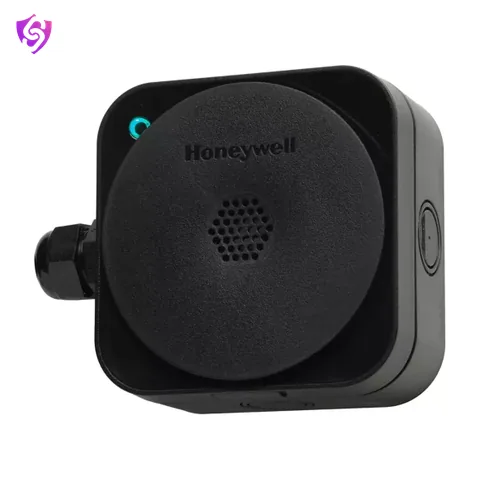

Sensepoint XCL Gas Detector

Once signed in, you may be able to access additional documents for your account.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Alarm Included	Yes
Display Readout	LED Indicator
Visual Indicators	Flashing Blue: Bluetooth Pairing in Progress / Flashing Green and Yellow: Warning / Flashing Red: Alarm / Flashing Yellow: Fault / Green: Normal / Solid Blue: Bluetooth Connection Established / Solid Yellow: Inhibited
Weight range	500 g
Dimension	113 mm x 113 mm x 59 mm
Humidity Range	15 to 90% RH (Non-Condensing)
Analog Outputs	0 to 22 mA
Relay Output Configuration	2 x @24 V DC/240 V AC, 5A
Wireless Communication	Bluetooth 4.0 (Bluetooth Low Energy)
Maximum Pressure	110 kPa
Measuring Range	CO2 (% vol Range): 5.0% vol (Adjustable Between 1.0 and 5.0% vol) / CO2 (ppm Range): 5,000 ppm (Adjustable between 1,000 and 5,000 ppm) / CO: 300 ppm (Adjustable Between 50 and 1000 Ppm) / Combustible: 0 to 100 % LEL (Factory Calibrated to Methane) / H2: 1,000 ppm / H2S High Range: 100 ppm (Adjustable Between 50 and 200 ppm) / H2S Low Range: 50 ppm (Adjustable Between 10 and 50 ppm) / NH3: 200 ppm (Adjustable Between 50 and 200 ppm) / NO2: 20 ppm (Adjustable Between 5 and 50 ppm) / O2: 0 to 25% vol
Digital Output	Modbus RTU
Minimum Temperature	-20°C
Maximum Operating Current	850 mA
Electrical Connection	Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
Operating Voltage	24 VDC
Ingress Protection	IP65 (Type 4)
Enclosure Material	Polycarbonate
Application	Apartments, Accommodation Blocks and Condominiums / Hospitals / Hotel and Leisure / Kitchens and Food Processing / Laboratories / Manufacturing Facilities and Factories / Retail Sites / Transportation and Parking
Industry	Commercial Buildings / Energy / Government & Public Sector / Healthcare / Manufacturing
