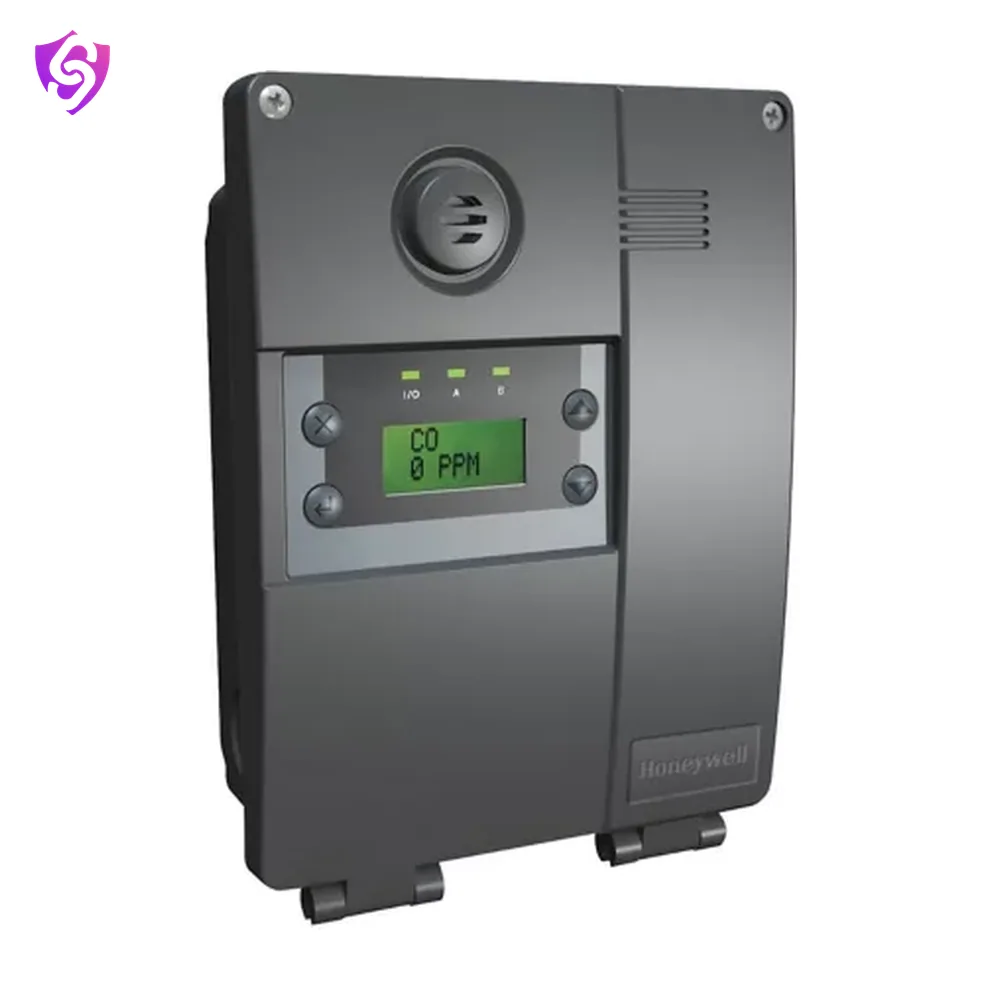

E3Point Gas Detector
Once signed in, you may be able to access additional documents for your account.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Product Type | Commercial Gas |
| Alarm Type | >85 dBA @3m (10 ft) |
| Alarm Included | Yes |
| Display Type | LCD |
| Display Included | Yes |
| Relay Included | Yes |
| Sampling Pump Included | No |
| Sensors Included | 1 |
| Visual Indicators | Amber LED 1: Alarm/Fault / Amber LED 2: Alarm/Fault / Green LED: Power |
| Minimum Temperature | -40˚C |
| Analog Output Signal Type | mA |
| Display Matrix | 8 Character, 2 Line Backlit LCD |
| Relay Rated Load | 5A @250 VAC, 5A @30 VDC |
| Relay Output Configuration | 2 DPDT |
| Accuracy | ± 3% Full Scale @25°C |
| Analog Output Signal Current | 4 to 20 mA |
| Maximum Operating Current | 20 mA |
| Power Requirement | 24 VAC Nominal (17 to 27 VAC), 50/60 Hz, 0.35A / 24 VDC Nominal (20 to 38 VDC) with Remote Sensor: 7W |
| Batteries Required | Yes |
| Batteries Included | Yes |
| Enclosure Material | Polycarbonate |

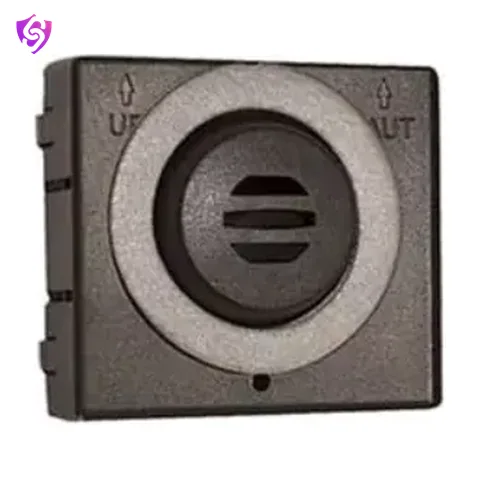

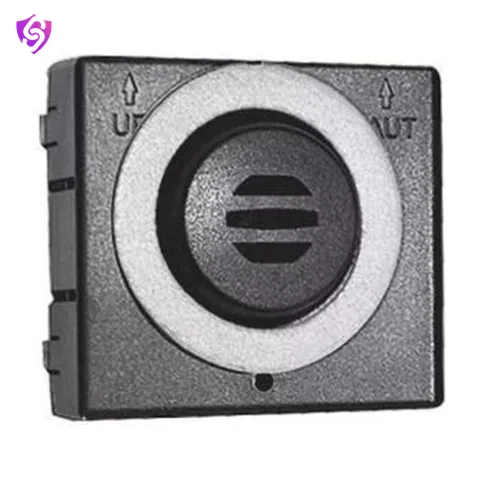

| Dimension | 8.09 in x 5.87 in x 2.65 in / Remote Sensor: 1.36 in x 1.75 in x 2.56 in |
| Application | Battery Charging Facilities / Boiler Room / Commercial Kitchen / Hospital/Ambulance Bay / Loading Dock / Parking Structure / Transport Terminal |
| Industry | Energy |
Key features
- Comes in standalone, standalone with remote (dual gas mode) or network versions
- Connects to analog or digital systems
- Works with virtually any BAS including BACnet and Modbus
- Connects to wired or wireless system (via 301CW wireless controller)
- Factory-calibrated cartridges
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
