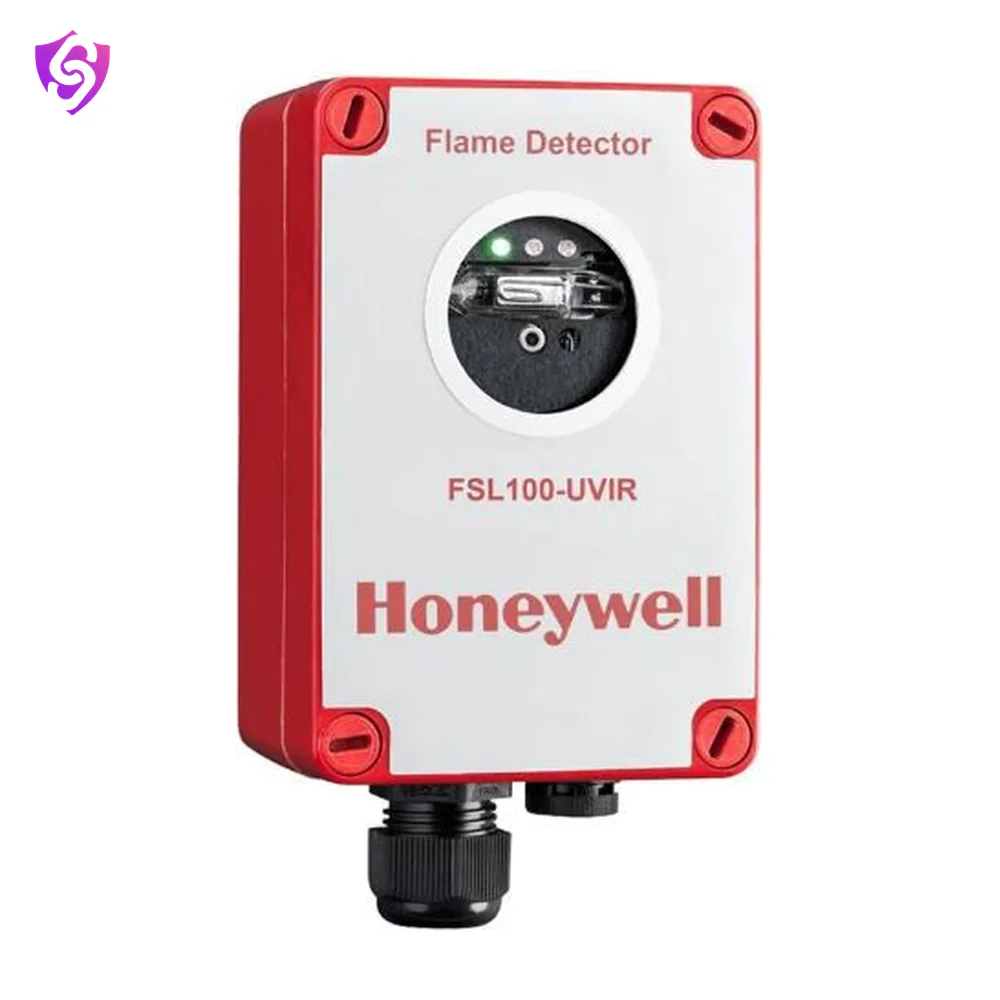

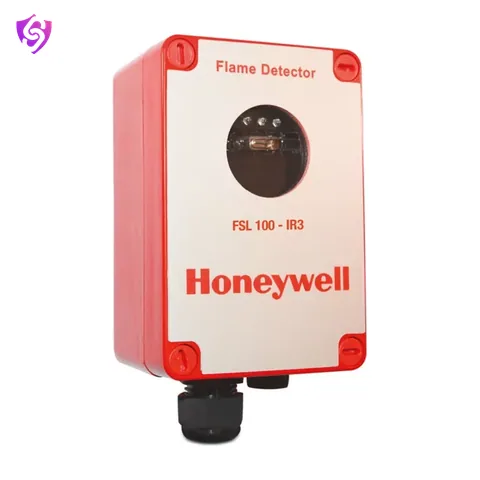

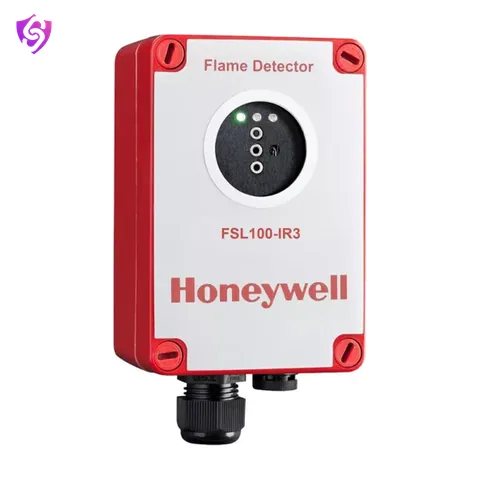

FSL100 Flame Detectors

Once signed in, you may be able to access additional documents for your account.

Specifications

Brand	Honeywell
Alarm Settings	Factory Setting: Latching / Selectable LEDs and Relays Latching/Non-Latching
Visual Indicators	Continuous Green: Normal Operation / Continuous Red: Alarm / Continuous Yellow: Fault / Flashing Yellow: Fault and Guide to Repeat Self-Test after a Self-Test Failure

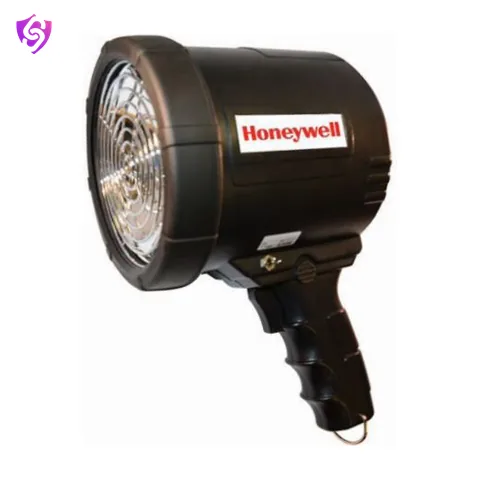

Replacement Parts	FSL100-TLBT: 12 VDC Battery for FSL-TL Test Lamp / FSL100-TLBU: H3 Light Bulb for FSL-TL Test Lamp / FSL100-TLCH: Universal Charger Kit for FSL-TL Test Lamp
Weight range	465 g
Dimension	4.9 in x 3.15 in x 2.25 in
Sensor Range	IR3: 110ft / UV and UV/IR: 80ft
Relay Output Configuration	Alarm Relay: De-Energized During Normal Operation, No Alarm, SPDT, 30 VDC - 2A, 60W Max / Fault Relay: Energised During Normal Operation, No Fault, SPDT, 30 VDC-2A, 60W max
Sensing Method	IR3 / UV/IR

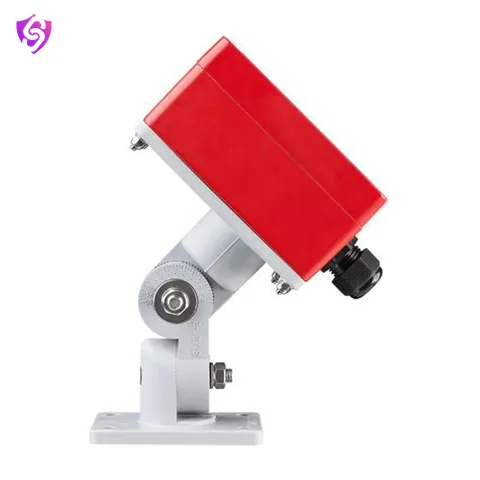

Mounting	Swivel Bracket Assembly
Warm Up Time	<10 sec
Field of View	90˚
Enclosure Rating	Self-Extinguishing V-0 (UL-94)
Conduit Entries	M20
Minimum Temperature	-40˚C
Operating Current	4 to 20 mA
Power Requirement	10 to 28 VDC
Ingress Protection	IP65
Enclosure Material	Glass Reinforced Polyester (GRP)
Industry	Energy
