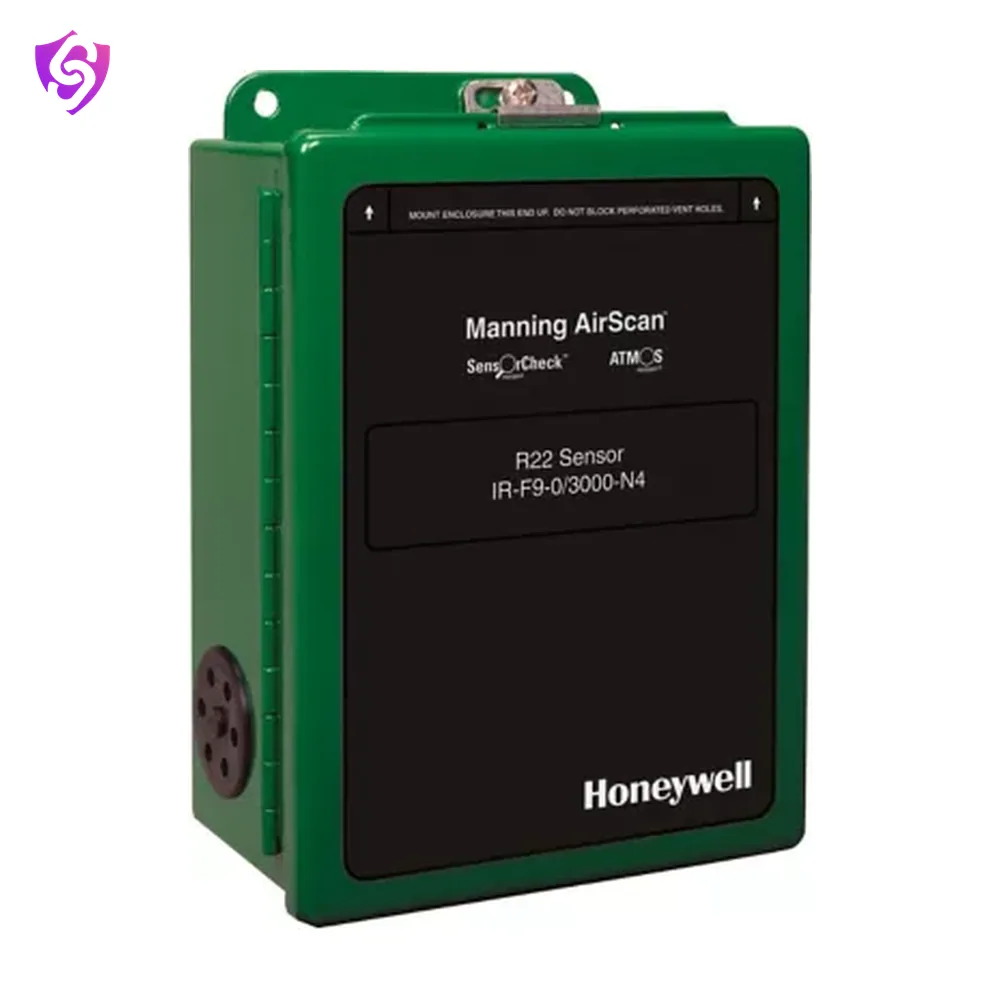

Manning AirScan IR-F9 Gas Detector

Infrared diffusion-based gas detection that enables thermal stability and freedom from vibration.

Specifications

Brand	Honeywell
Alarm Type	85-103 dB Horn
Alarm Included	Yes
Sensors Included	1
Repeatability	± 1% Full Scale
Weight range	4.4 lbs
Humidity Range	0 to 100% RH (Condensing)
Number of Digital Communication Ports	1
Digital Communication Ports	IR
Sensing Method	Refrigerant (Infrared)
Operating Life	10
Accuracy	± 3% Full Scale
Mounting	Duct
Signal Output	Linear 4 to 20 mA Output into a Load Resistor of 500 Ohm Max
Measuring Range	CO2: 0-1%, 0-3%; NH3: 0-2%, 0-4% / R Gases: 0-500 ppm, 0-1,000 ppm, 0-3,000 ppm
Gas Sampling	Diffusion Method with No Moving Parts, Real Time Continuous Monitoring of All Points
Enclosure Rating	NEMA 4
Communication	RS485
Minimum Temperature	-30°C
Storage Temperature	-28 to +60°C / -28 to 60°C
Analog Output Signal Current	4 to 20 mA
Operating Current	3 A
Power Requirement	24 VDC
Certifications - Regional	Global
Certifications - Hazloc	UL, CSA
Material	Stainless Steel
Enclosure Material	Stainless Steel
Application	Banana and Produce Rooms / Beverage Plants / Confined Space Entry / Food Processing / Gas Bottling Plants / Ice Rinks / Product Coolers / Rack Houses / Refrigeration Systems / Supermarkets / Wineries and Breweries
Industry	Energy
