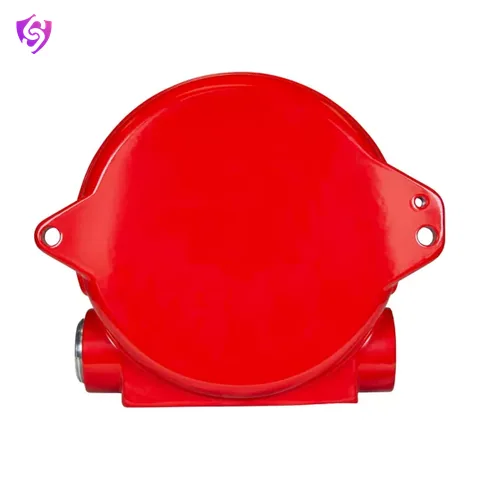

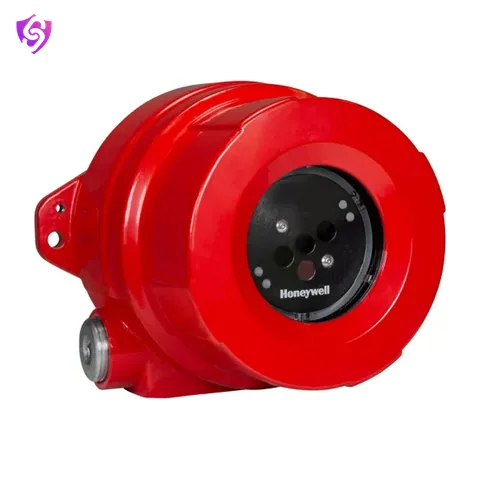

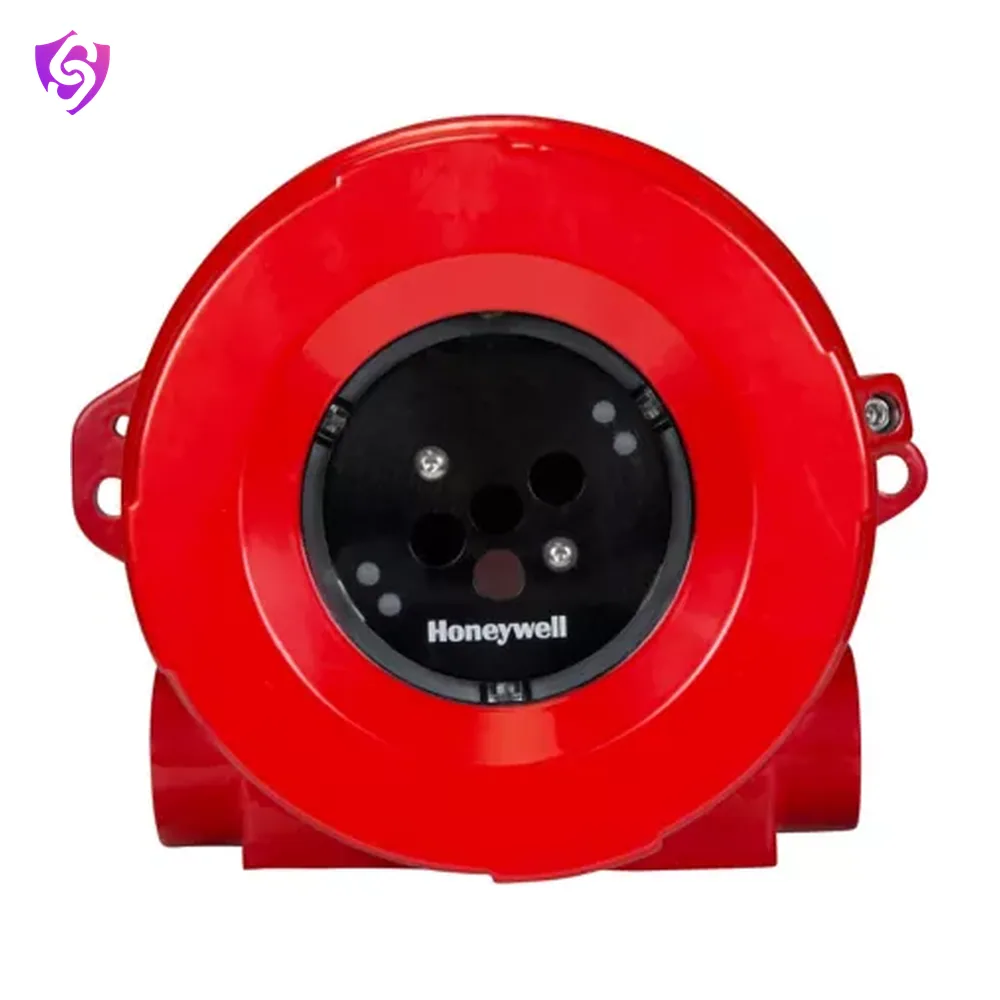

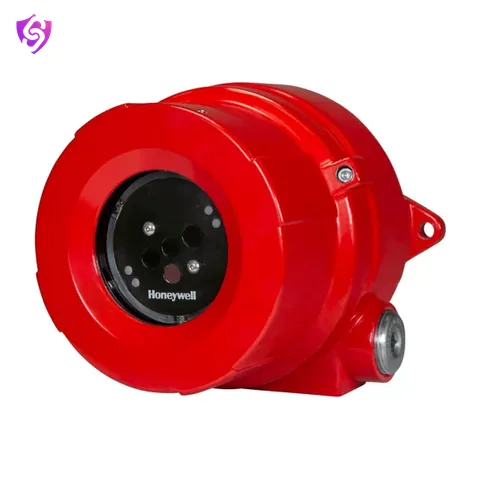

FS24X Plus Flame Detector
Elevate your gas detectors’ potential with Honeywell's expert maintenance services!
EN 54IEC 61508ATEXIECEX
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Weight range | Aluminum: 1.7 kg (3.7 lbs) / Stainless Steel: 3.4 kg (7.4 lbs) |
| Humidity Range | 0 to 99% RH / 0–99% relative humidity |
| Analog Output Signal Type | 4-20mA standard |
| Number of Analog Outputs | 1 |
| Analog Outputs | 4 to 20 mA |
| Connector Type | 2 x M25 or 2 x ¾” NPT Entries |
| Digital Communication Ports | HART® with Handheld Communicator or Hardwired / RS485: Modbus and FP2 / USB: FP2 |
| Relay Rated Load | 2A at 32 VDC |
| Relay Output Configuration | Alarm, Fault, and Auxiliary: SPDT1 (NO2/NC3), De-Energized/Energized, Latching/Non-Latching Rating: 2A @32 VDC |
| Relay Activation Settings | Single Pole Double Throw (SPDT) |
| Sensing Method | Triple IR |
| Response Time | 5 sec and a max of 10 sec (FM Witnessed) / Typically, 5 Seconds and a maximum of 10 Seconds |
| Number of Relay Outputs | 3 |
| Sensitivity | High 150 ft (45m) / Low 50 ft (15m) / Medium 100 ft (30m) / Very High 200 ft (60m) to 1 ft2 (0.1 m2) |
| Field of View | 120° Cone of Vision (50% on Axis Range) / 90° Cone of vision |
| Conduit Entries | (2) 3/4 in NPT |
| Minimum Temperature | -55°C |
| Storage Temperature | -55 to +85°C |
| Certifications - Performance | EN54-10: Class1 (Medium, High, Very High Sensitivities), Class 2 (Low Sensitivity) / FM3260 |
| Certifications - Other | IEC61508 SIL 2 Certified by TUV Sud / Maritime Type approved to ABS, Lloyds, BV, DNV |
| Certifications - Hazloc | ATEX: II 2 G Ex db IIC T5 Gb; II 2 D Ex tb IIIC T135° C Db IP66/67 / CCC / CU-TR / IECEx: Ex db IIC T5 Gb; Ex tb IIIC T135° C Db IP66/67 / INMETRO / cFMus: Class I, Div 1, Grps A,B,C,D; Class II/III, Div 1, Grps E,F,G NEMA 4X |
| NEMA Rating | Type 4X |
| Ingress Protection | IP66/67 (Type 4X) |
| Datalogging | 5000 events and ten 30-second FirePics™ |
| Relay Included | Yes |

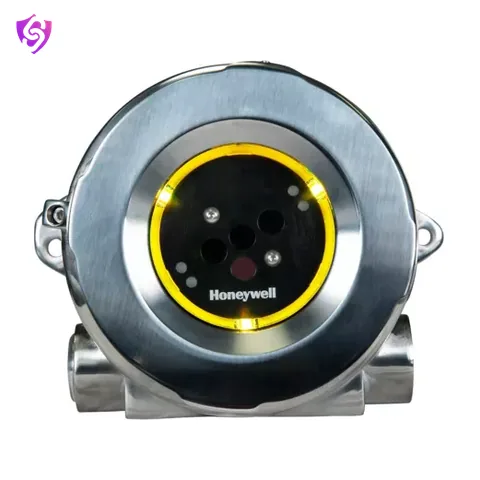

| Visual Indicators | LED halo light ring - Green, Yellow, Red |

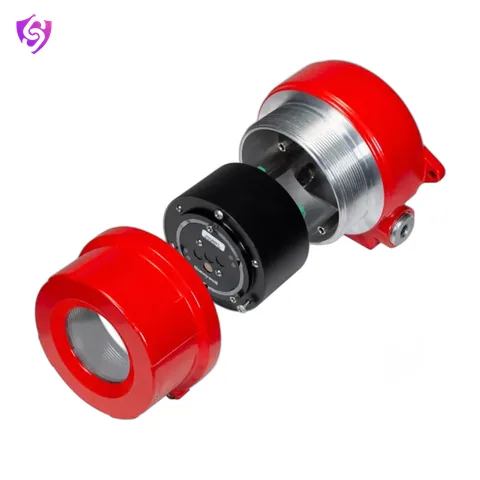

| Replacement Parts | FS24XP-PUCK |
| Material | 316 Stainless Steel / Low Copper Aluminum with Marine Grade Paint |
| Enclosure Material | 316 Stainless Steel / Low Copper Aluminum with Marine Grade Paint |
| Operating Current | 1.8 Watts (Nominal) / 12 Watts (max) = with heater ON 100% duty cycle. / 2.4 Watts (Alarm) |
| Standards | EN 54-10, IEC61508, ATEX, IECEX |
Key features
- Fast response to a wide range of hydrocarbon and hydrogen fires even in low visibility conditions
- Advanced diagnostics including window clarity to maintain site protection Easy to Use
- Sunshade and standard or marine mounting bracket included for quickly and easily positioning the detector in an optimal location.
- Powerful FlameManager software replaces legacy dip switches for detector configuration and provides simplified diagnostics and post event FirePics™.
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
