Honeywell

FS20X Plus fixed flame detectors

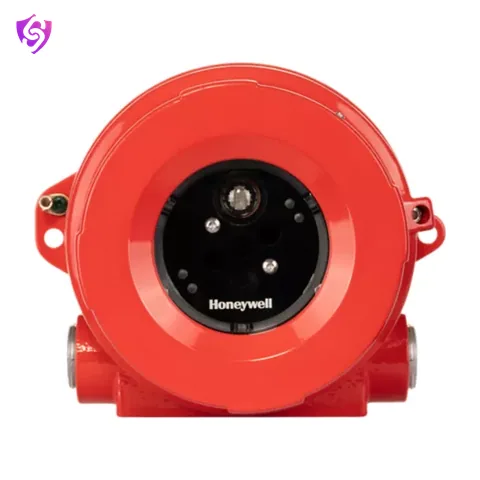

Name: Honeywell FS20X Plus fixed flame detectors
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

EN 54IEC 61508ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight range	Aluminum: 1.7 kg (3.7 lbs), Stainless Steel: 3.4 kg (7.4 lbs)
Humidity Range	0–99% relative humidity
Analog Output Signal Type	4-20mA – Source, Sink or Isolated
Number of Analog Inputs	1
Connector Type	2 x M25 or 2 x ¾” NPT Entries
Relay Rated Load	2A at 32 VDC
Relay Output Configuration	Alarm, Fault, and Auxiliary
Relay Activation Settings	Single Pole Double Throw (SPDT)
Sensing Method	Ultraviolet (UV) / Triple Infrared (IR)
Number of Relay Outputs	3
Certifications - Performance	EN54-10: Class1 (Medium, High, Very High Sensitivities), Class 2 (Low Sensitivity) - Pending / FM3260 - Pending
Certifications - Other	IEC61508 SIL 2 Certified by TÜV Sud - Pending / Maritime Type approved to ABS, Lloyds, BV, DNV, MED, USCG - Pending
Certifications - Hazloc	ATEX: II 2 G Ex db IIC T5 Gb; II 2 D Ex tb IIIC T135° C Db IP66/67; / CCCF - Pending / CUTR - Pending / IECEx: Ex db IIC T5 Gb; Ex tb IIIC T135° C Db IP66/67 / INMETRO / NEMA 4X / cFMus: Class I, Div 1, Grps A,B,C,D; Class II/III, Div 1, Grps E,F,G
NEMA Rating	Type 4X
Ingress Protection	IP66/67
Datalogging	5000 events and ten 30-second FirePics
Features	High-visibility halo light ring / Modbus, HART, 4-20 mA Source, Sink or Isolated, Relays Standard / Mounting bracket and sunshade as standard included / Multiple marine certifications / Proved UV + triple IR sensor technology
Relay Included	Yes

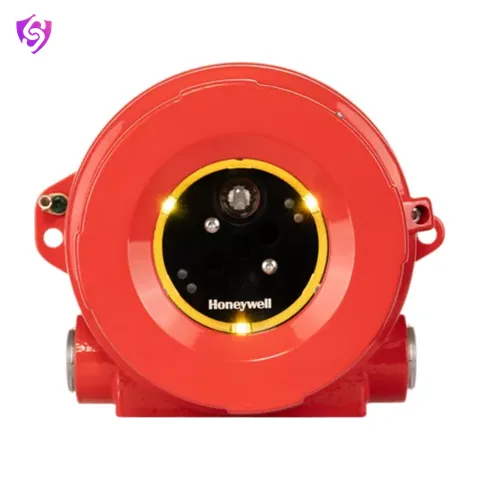

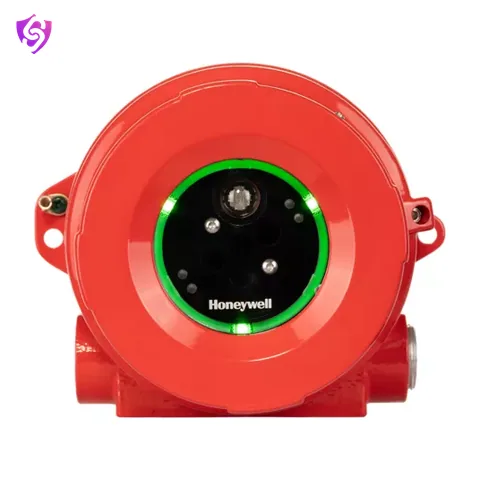

Visual Indicators	LED halo light ring - Green, Yellow, Red
Replacement Parts	FS20XP-PUCK
Material	Electropolished CFM8 Stainless Steel / Low Copper Aluminum with Marine Grade Paint
Operating Current	1.8 Watts (Nominal) / 12 Watts (max) = with heater ON 100% duty cycle. / 2.4 Watts (Alarm)
Industry	Commercial Buildings / Logistics & Warehouses
Standards	EN 54-10, IEC61508, ATEX, IECEX

Key features

Fast response to a wide range of Hydrocarbon, non-Hydrocarbon, and Hydrogen fires even in low visibility conditions
Advanced diagnostics including window clarity to maintain site protection
Wideband sensing technology can offer safety coverage even in limited visibility
No field calibration required, simple bump with test lamp
Electro-optical module enables quick replacement in the field
PC App allows simple set-up and interrogation including access to Event Logs and FirePics.
HART 7, Modbus, and relay outputs included
New marine mount with graduated movement and 2 axles of movement enables simple mechanical installation and alignment
HazLoc, performance, Marine and safety certified

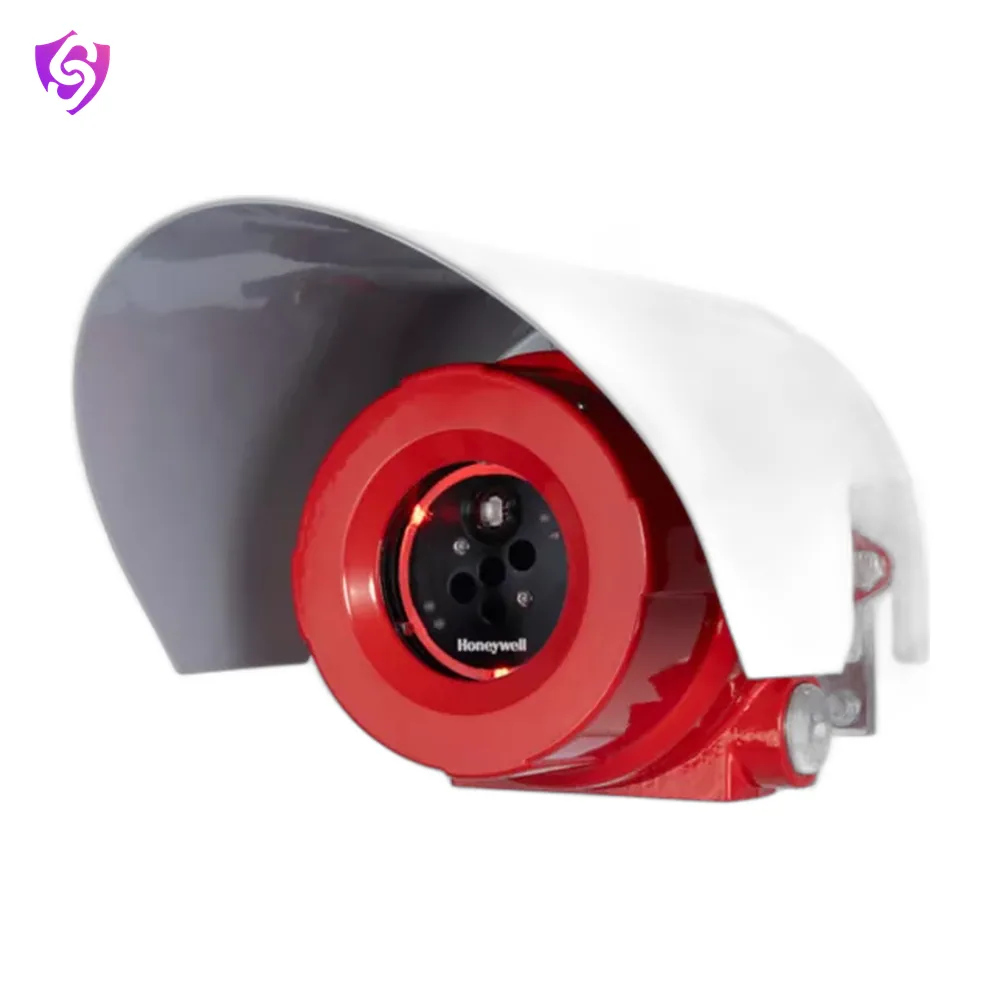

Comprehensive kit includes detector, enhanced sunshade and mount as standard
