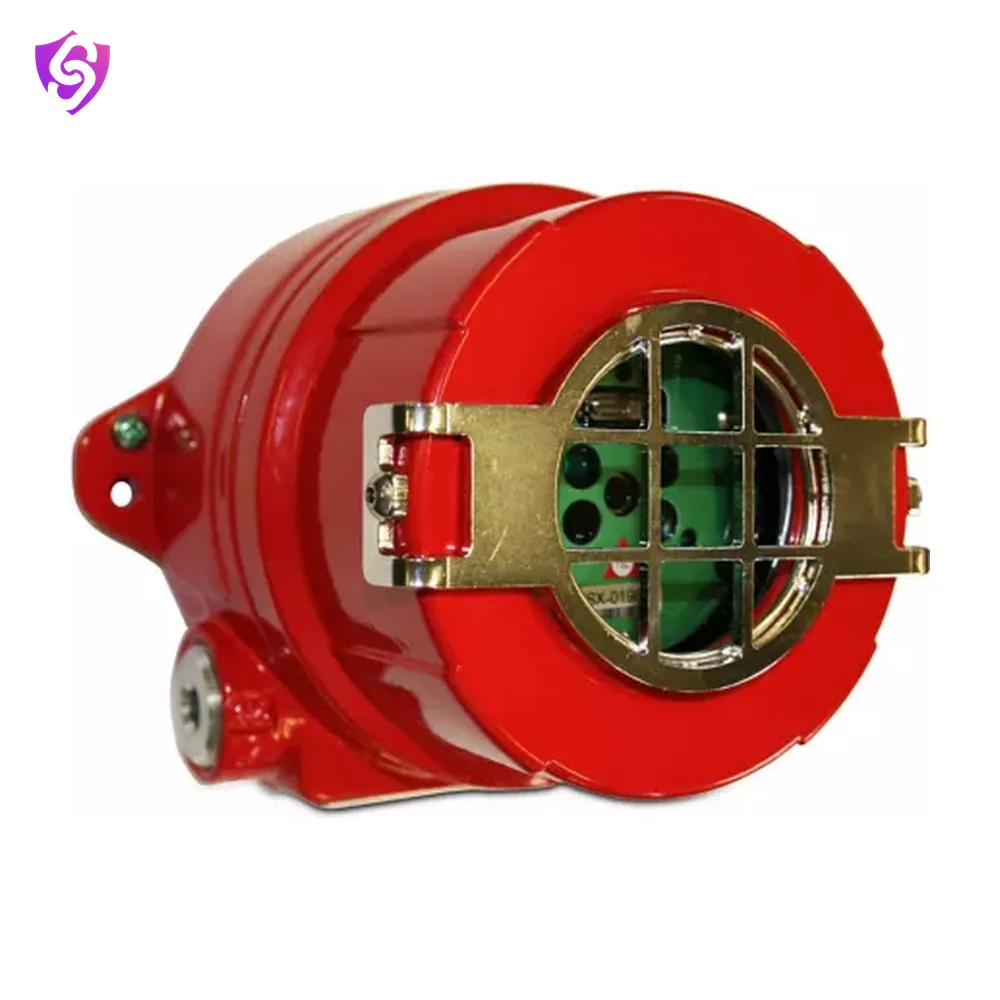

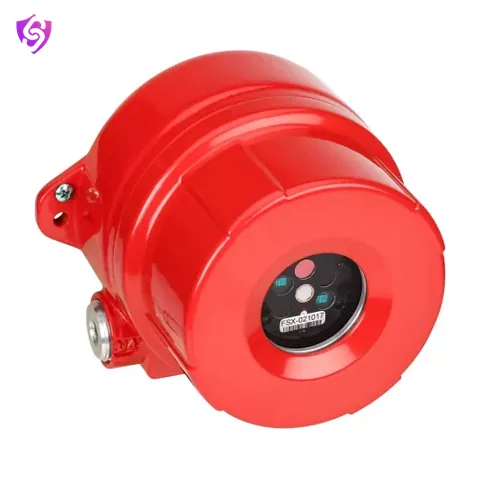

FS20X Flame Detector
Elevate your gas detectors’ potential with Honeywell's expert maintenance services!
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | 3 Years from Date of Shipment |
| Alarm Included | Yes |
| Features | Arc Welding Immunity |
| Relay Included | Yes |
| Wireless Technology | WideBand IR™ |
| Visual Indicators | Green LED: Power / Red LED: Alarm / Yellow: Fault |
| Vibration | Meets or Exceeds MIL Spec 810C Method 514.2, Curve AW12 |
| Mounting Hole Diameter | 0.25 |
| Output Signal Range | 4 to 20 mA |
| Humidity Range | 5 to 98% RH (Non-Condensing) |
| Altitude Range | 200ft (60m) |
| Analog Output Signal Type | mA |
| Number of Digital Communication Ports | 2 |
| Relay Rated Load | 1A @24V DC |
| Relay Output Configuration | Auxiliary: SPDT (NO/NC) / Fault: SPST (NO) / Fire Alarm: SPDT (NO/NC) |
| Relay Activation Settings | Relay 1: Fire Alarm / Relay 2: Fault / Relay 3: Auxiliary |
| Sensing Method | IR, UV |
| Maximum Analog Input Resistance | 400 |
| Plug Type | 10 pin for J2 Connector / 6 pin for J1 Connector |
| Output Signal Type | mA |
| Number of Relay Outputs | 3 |
| Mounting | Swivel Bracket Assembly |
| Default Relay Activation | Alarm Relay (Relay 1), Auxiliary Relay V (Relay 2), Fault Relay (Relay 3) |
| Wiring | Shielded: 2.5 sq.mm (14 AWG) to 0.326 sq.mm (22 AWG) |
| Spectral Sensitivity | Near Band IR: 0.7 to 1.1 microns / Ultraviolet: 185 to 260 Nanometers / Visible: 400 to 700 Nanometers / Wide Band IR: 1.1 to 3.5 Microns |
| Sensitivity | Very High, High, Medium, Low |
| Loop Resistance | 50 to 400 Ohms |
| Field of View | 90° Full 100% Core of Vision / ± 45° From On Axis |
| Conduit Entries | (2) 3/4 in NPT |
| Communication | FireBus II / ModBus Protocol / RS485 |
Key features
- Patented* WideBand IR™ Infrared combined with Ultraviolet
- Detection range greater than 200 feet to 1 sq. ft. heptane fire
- Patented* Electronic Frequency Analysis
- Visible Sensor for optimum false alarm rejection
- Selectable detection sensitivities
- Solar blind 90° full 100% cone-of-vision
- Dual Microprocessors for reliable performance
- Real-time clock for accurate time dating of events
- FirePic™ – Up to 6 pre-fire event data storage
- Event log – Up to 200 events with date and time stamp
- Built-in RS-485 ModBus Communication
- Built-in non-isolated 4-20 mA analog output (sink or source)
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
