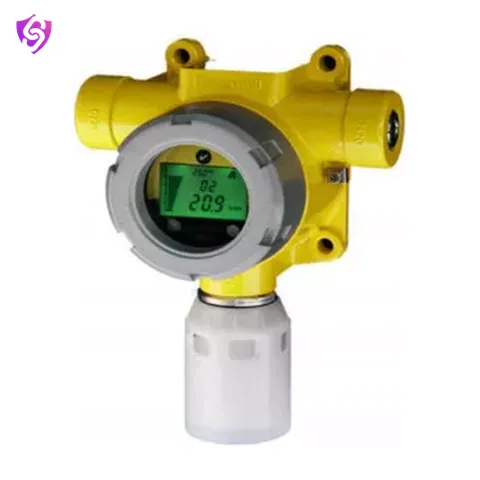

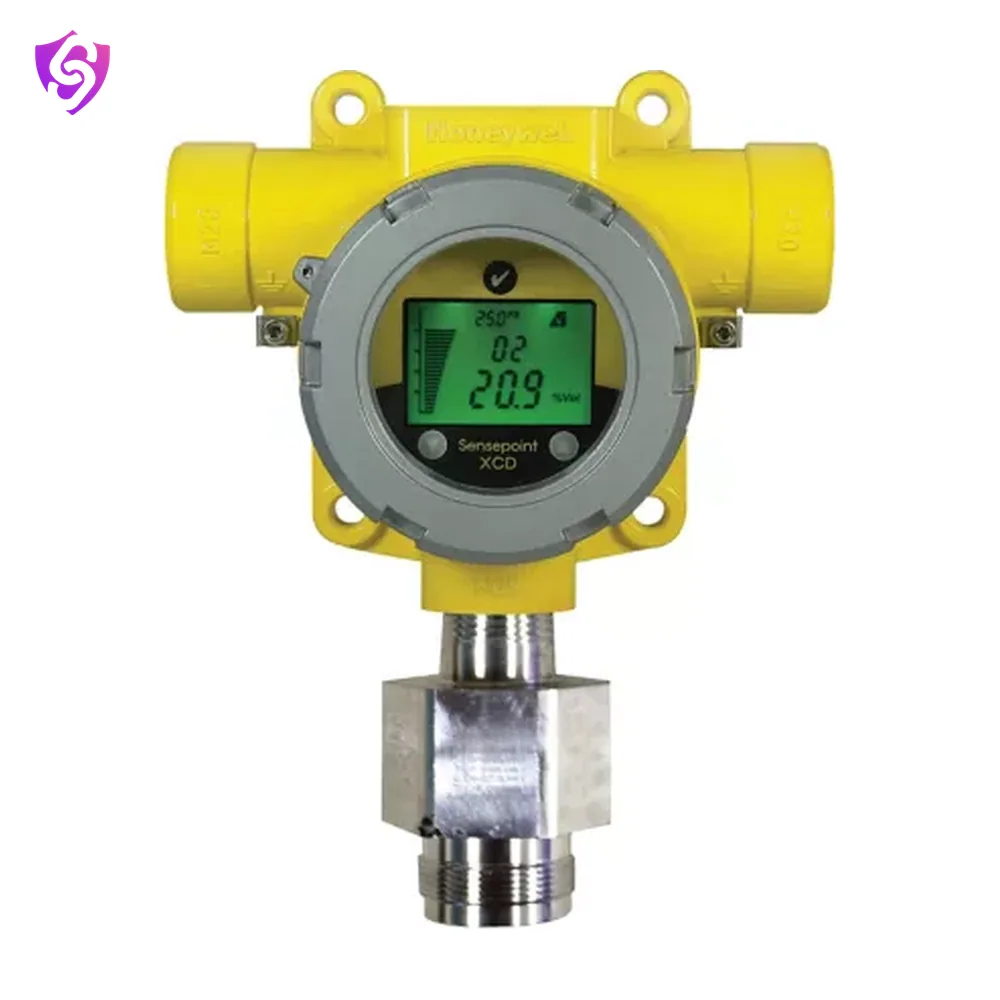

Sensepoint XCD RFD Gas Detector

Your most flexible, practical choice for remote flammable gas monitoring in Class 1, Div 1 areas.

Specifications

Brand	Honeywell
Weight range	316 Stainless Steel: 11 lbs / Aluminium Alloy LM25: 4.4 lbs
Humidity Range	Continuous: 20 to 90% RH (Non-Condensing) / Intermittent: 10 to 99% RH (Non-Condensing)
Relay Output Configuration	3 x 5A @250 VAC
Mounting	Wall
Maximum Pressure	110 kPa
Conduit Entries	(2) 3/4 in NPT
Communication	Modbus RTU / RS485
Minimum Temperature	-40˚C
Storage Temperature	-25 to +65°C
Operating Current	4 to 20 mA
Electrical Connection	15 x Screw Terminals with Wire Diameter 0.5 to 2.5 sq.mm (20 to 13 AWG)
Power Consumption	5W @24 VDC
Operating Voltage	16 to 32 VDC
Ingress Protection	IP66
Application	Compatible with High Temperature Sensors for Use in and around Gas Turbine Enclosures and Solvent Based Printing and Coating Drying Ovens / Compliant with the Requirements of HSE Guidance Note PM84 / Sensor can be Mounted up to 30m (100ft) from Transmitter / Standard Temperature Catalytic And Infrared Sensor Types Also Available / Transmitter can Be Mounted in Easy to Access Area Even if Sensor is in a Hard to Access or Restricted Access Area
Enclosure Material	316 Stainless Steel / Epoxy Painted Aluminium Alloy
Industry	Commercial Buildings / Energy / Manufacturing
