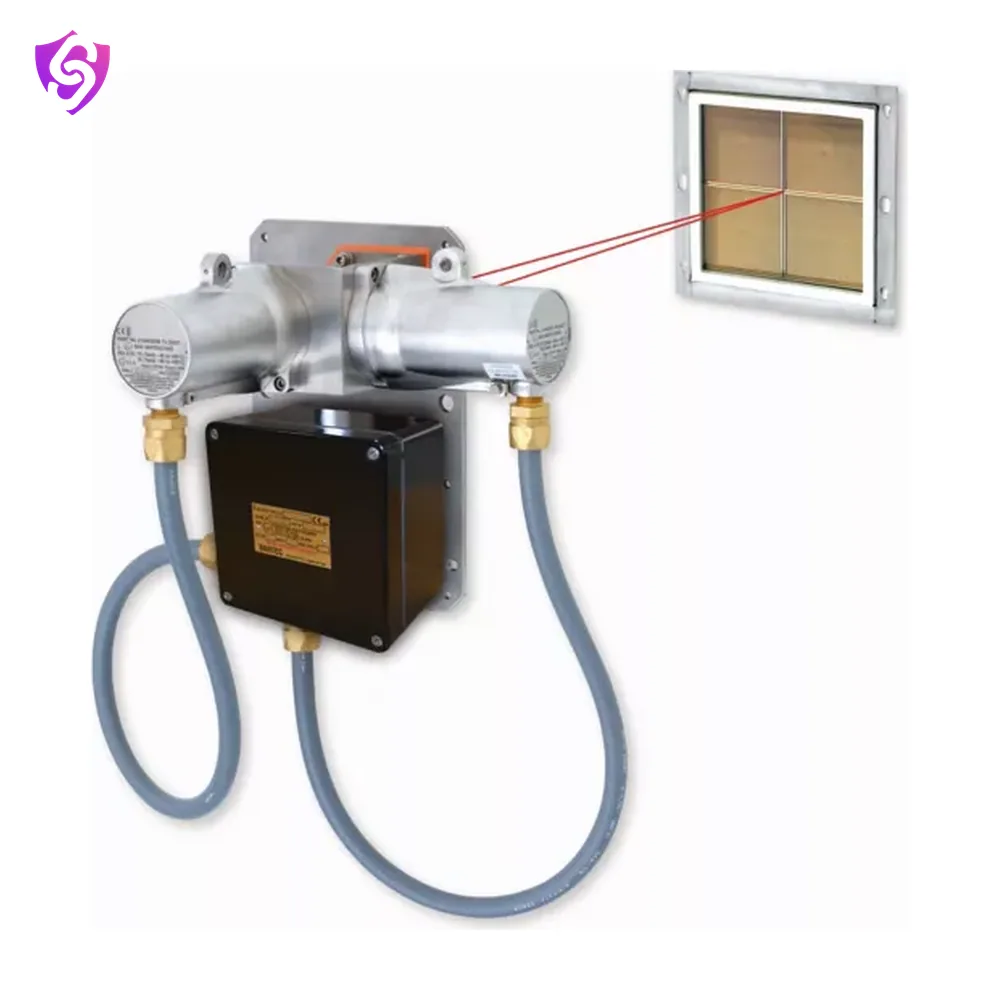

Searchline Excel™ Cross-Duct Open Path Gas Detector
Elevate your gas detectors’ potential with Honeywell's expert maintenance services!
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Weight range | Reflector Panel 10 kg (> 2.5 to 5.0m Duct Width) / Reflector Panel 5 kg (> 0.5m to 2.5m Duct Width) / Transceiver 13 kg |
| Humidity Range | 0 to 99% (Non-Condensing) |
| Calibration Gas | Methane |
| Maximum Pressure | 105.5 kPa |
| Speed of Response | T90 < 1 sec |
| Measuring Range | 0-100% LEL |
| Digital Output | Modbus RS485 Multi Drop. (Using DX100(M)) / XNX Universal Transmitter with Modbus Option |
| Signal Output | Beam Block: 2.5 mA / Fault: 0 mA / Inhibit: 2 mA / Measuring Range: 4 to 20 mA Sink or Source (Default Current Source) / Over Range: 21 mA / Warning: 3 mA |
| Warm Up Time | <1 Hour (Fully Stabilised) |
| Minimum Temperature | -40˚C |
| Alarm Settings | 10% LEL (>2.5m to 5m Duct Width) / 20% LEL (> 0.5m to 2.5m Duct Width) |
| Repeatability | 2.5% LEL (> 1m Duct Width) / 5% LEL (< 1m Duct Width) |
| Vibration | 2 to 60 Hz |
| Ingress Protection | IP66 / IP67 |
| Enclosure Material | 316 Stainless Steel |
| Power Requirement | Heated Reflector Panel: 18 to 28 VDC / Unit: 18 to 32 VDC |
| Power Consumption | Heated Reflector Panel: 6W / Unit: 13W max |
| Application | Control Rooms / Personal Refuge Areas / Turbine Enclosures |
| Industry | Energy / Logistics & Warehouses |
Key features
- Fast speed of response provides earliest warning
- High sensitivity allows low alarm set points
- Alignment free design makes installation simple
- Duct flex and vibration tolerance keeps the system online
- Integral functional gas test facility allows for simple system check
- Contamination resistant optics reduce the need for unscheduled maintenance
- Immune to catalytic poisons
- Works in inert atmospheres
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
