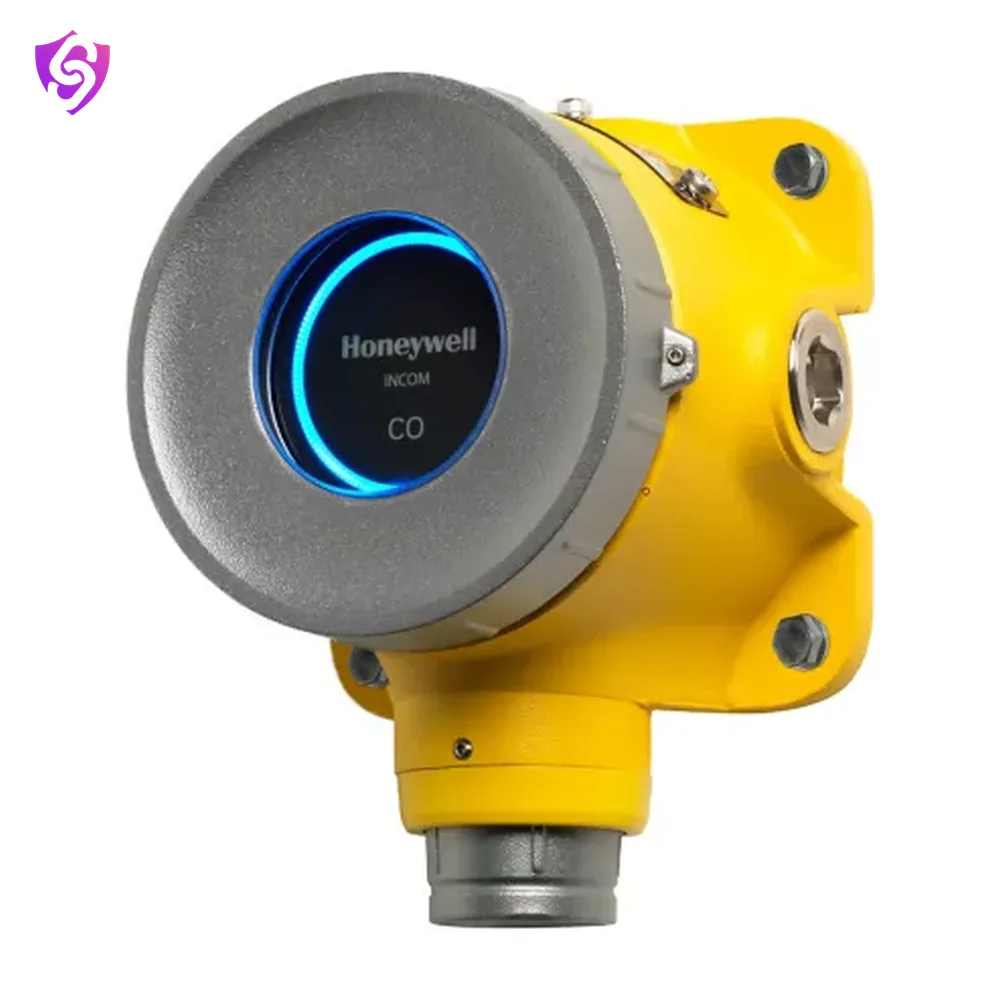

Sensepoint XRL Gas Detector

Sensepoint XRL is a fixed point gas detector with Bluetooth that allows the user to connect the gas detector to a smartphone or tablet running the Sensepoint gas detector app.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Visual Indicators	Flashing Blue: Bluetooth Pairing in Progress / Flashing Green and Yellow: Warning / Flashing Green: Normal / Flashing Red: Alarm / Flashing Yellow: Fault / Solid Blue: Bluetooth Connection Established / Solid Yellow: Inhibited
Weight range	1400 g
Dimension	118 mm x 159 mm x 93 mm
Humidity Range	0 to 99% (Non-Condensing)
Analog Outputs	0 to 22 mA
Wireless Communication	Bluetooth 4.0 (Bluetooth Low Energy)
Maximum Pressure	110 kPa
Measuring Range	CO: 0 to 300 ppm (Adjustable Between 50 and 1000 Ppm) / Combustible: 0 to 100 % LEL (Adjustable Between 20 and 100% LEL, Factory Calibrated to Methane) / H2: 0 to 1,000 ppm / H2S High Range: 0 to 100 ppm (Adjustable Between 50 and 200 ppm) / H2S Low Range: 0 to 50 ppm (Adjustable Between 10 and 50 ppm) / O2: 0 to 25% vol
Digital Output	Modbus RTU
Minimum Temperature	-40˚C
Storage Temperature	0 to 30°C
Maximum Operating Current	850 mA
Electrical Connection	Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
Operating Voltage	24 VDC
NEMA Rating	NEMA 4X
Ingress Protection	IP66
Enclosure Material	Aluminum Alloy LM20 (Charcoal or Yellow)
Application	Battery Charging Facilities / Fuelling Depots / Manufacturing Facilities and Factories / Petrochemical Plants / Vehicle Test Facilities / Water Treatment Plants
Industry	Commercial Buildings / Energy / Manufacturing

Key features

Choose from a Range of mA or Modbus Output Versions for Flexible System Design to Meet the Customers Requirements
Manage the Detector without Making a Physical Connection. Remove the Need for Physical Access to Hard-to-Reach Devices
Multi-Color Visual Indicator to Stow Status Makes it Easier to Know the Detector Status Immediately and Identify Detectors that Require Attention or are Warning of Danger
One Person Calibration without the Need to Open the Detector. Saves Time and Removes Need for Hot Work Permit
Selectable Source or Sink Current for Analog Output Enables One Detector to be Suitable for Both System Configurations
Simplified Maintenance with Familiar Smartphone Technology Saves Money and Time
The Ingress Protection of NEMA 4X/IP66 Allows Units to be Installed in Outdoor Environemtns
