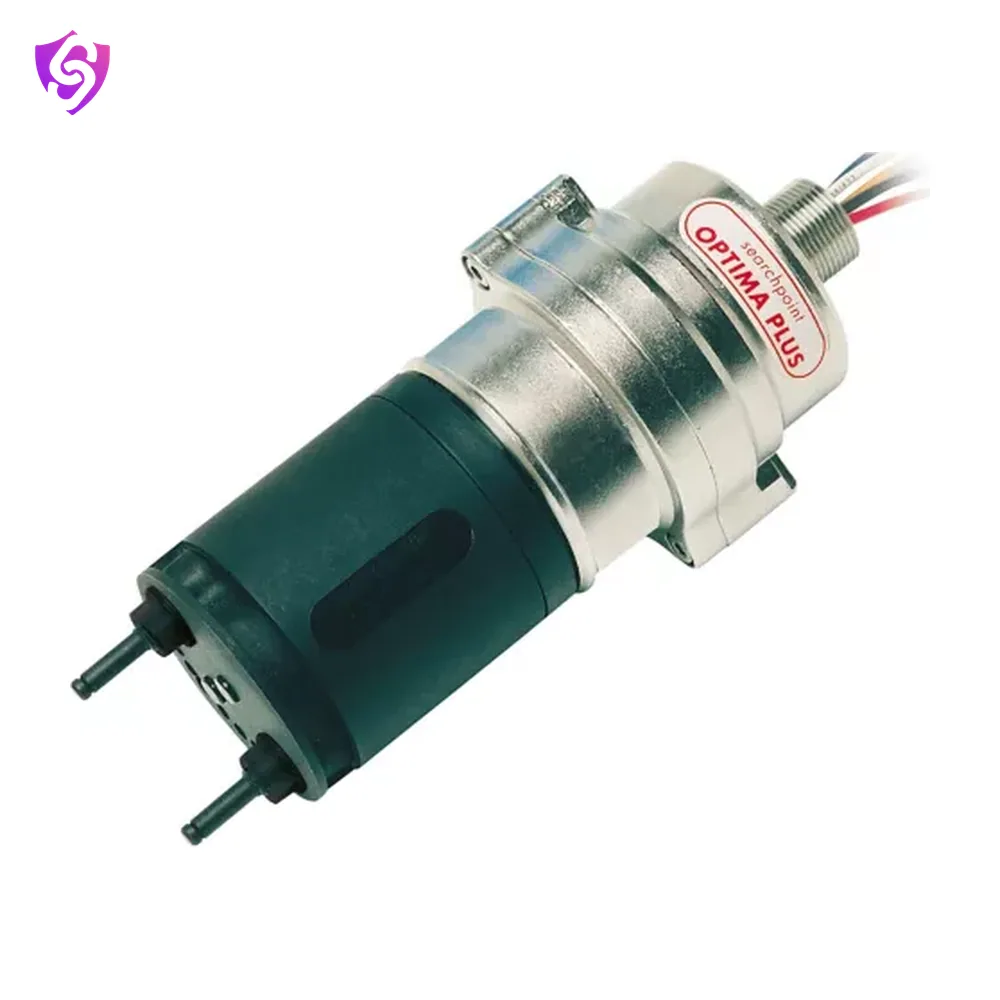

Searchpoint Optima Plus Point Infrared Gas Detector
Once signed in, you may be able to access additional documents for your account.
ATEXIECEX
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Alarm Settings | Fault: 0 mA (Hart® Units Adjustable to 1 mA) / Inhibit: 1-3mA (Default 2 mA) / Over Range: 20-21.5 mA (Default 21 mA) / Warning: 0 to 6 mA (Default 3 mA) |
| Repeatability | < ±2% fsd @50% fsd |
| Weight range | 1.6 kg |
| Output Signal Range | 4 to 20 mA Autosensing Sink or Source |
| Digital Communication Ports | UV/IR |
| Accuracy | Optima Plus (Ethylene): Baseline < ±2% fsd, 50% fsd <±3% fsd / Optima Plus (Hydrocarbon): Baseline < ±1% fsd, 50% fsd <±2% fsd |
| Measuring Range | 0-100% LEL |
| Digital Output | Modbus RS485 (via XNX, Optional HART® over 4 to 20 mA output (HART® Version 7) |
| Minimum Temperature | -40˚C |
| Material | 316 Stainless Steel |
| Enclosure Material | Plastic |
| Ingress Protection | IP66/67 |
| Power Requirement | 18 to 32 VDC |
| Industry | Energy / Healthcare / Manufacturing |
| Standards | ATEX, IECEX |
Key features
- Experience gained from over 100,000 units installed worldwide
- Optional HART® over 4-20mA output
- Can detect a wide range of hydrocarbon gases including solvents
- Increased reliability with no moving parts
- Increased stability from self compensating optics
- Immune to long term component drift
- Remote functional gas test facility
- Certified for North American and European Hazardous areas
- Increased false alarm rejection
- Increased uptime with contaminated optics warning
- Dynamic Heating Control ensures condensation free optics
- No undetected failures
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
