Honeywell

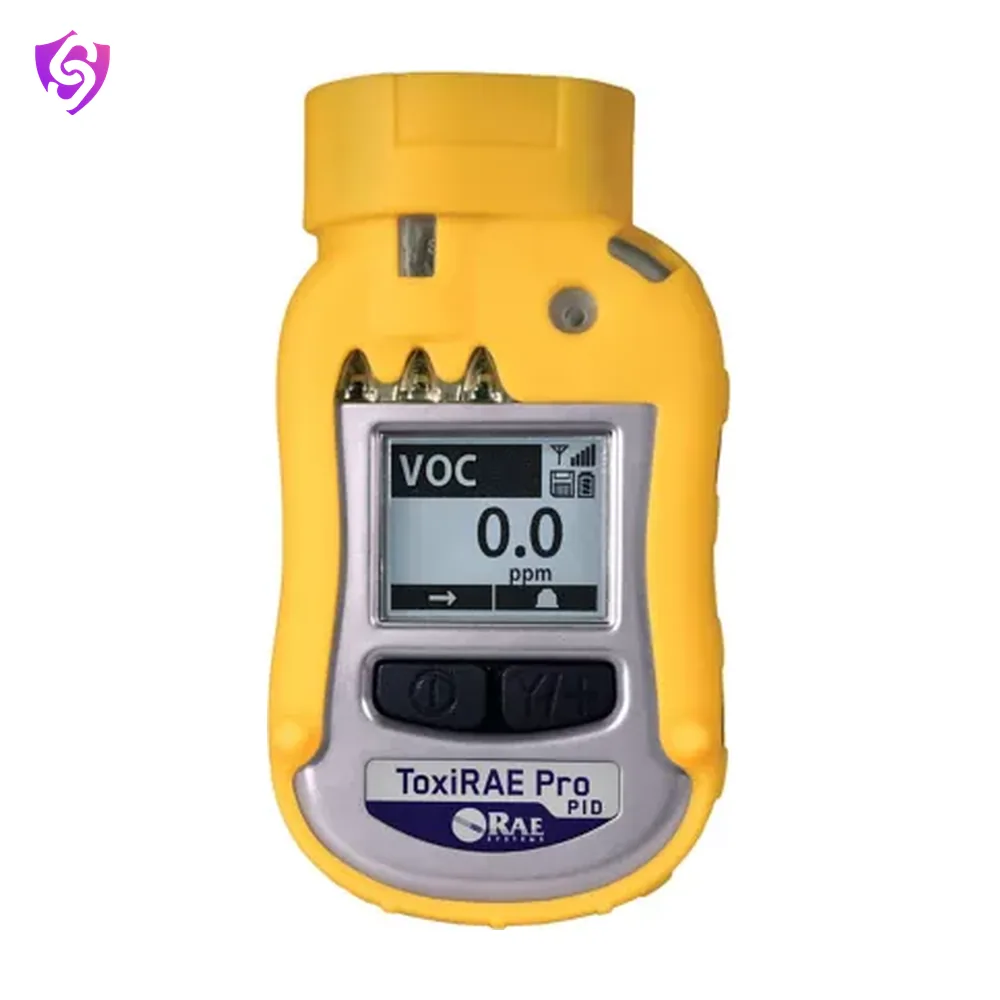

ToxiRAE Pro VOC Single Gas Monitor

Name: Honeywell ToxiRAE Pro VOC Single Gas Monitor
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Warranty	1 Year on All Other Sensors, Battery, and Other Consumable Parts / 2 Years on Non-Consumable Components
Weight	235 gram / 8.29 ounce av
Maximum Temperature	131 degree Fahrenheit / 55 degree Celsius
Alarm Included	Yes
Alarm Type	Audible (95 dB) / Vibrating / Visual (Flashing Bright Red LEDs)
Datalogging Interval	1 Min / 1 to 3,600 sec
Datalogging	Continuous (3 Months) / Three-month capacity
Display Type	Graphical LCD Display with White LED Backlighting
Display Readout	Real-Time Reading of VOC Concentrations in ppm or mg/m3; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality - STEL, TWA, and Peak Values
Display Included	Yes
User Options	Wireless remote alarm notification; audible (95 dB @ 30 cm)
Wireless Technology	MESH
Includes	AC Adapter (100 to 240 V, 50/60 Hz AC to 12 V DC) / CD with Documentation / Calibration Adapters / Calibration Card, Quality Certificate, and Warranty/Registration Card / Charging and PC Communication Cradle / Combined Instrument/Sensor Cap Removal Tool / PC Communication Cable / Quick Start Guide / ToxiRAE Pro PID Monitor with Sensor as Specified, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery Installed / Warranty/Registration Card
Weight range	235 g
Instrument Size	4.6 inch H x 2.4 inch W x 1.2 inch D (118 x 60 x 30 mm)
Dimension	H: 118 mm W: 60 mm D: 30 mm
Sensor Range	VOC (0-2000ppm)
Humidity Range	0 to 95% RH (Non-Condensing) / 0%-95%
Calibration	Automatic with AutoRAE 2 Test and Calibration System or Manual
Sensor Type	Photoionization Sensor
Gas Type	VOC
Wireless Range	ToxiRAE Pro PID to Mesh Router, EchoView Host, or Mesh Reader2 - 330 ft (100m) / ToxiRAE Pro PID to RAELink3 Mesh or RAELink3 Z1 Mesh Modems - 33 ft (10m)
Wireless Network	Closed-Loop Network with the EchoView Host / ProRAE Guardian Real-Time Wireless Safety System
Wireless Frequency	ISM License-Free Bands
Sampling	Internal Fan
Keypad Type	2 Buttons for Operation and Programming
Detectable Gases	A Wide Variety of Ionizable Chemicals Using 190 Built-in and Over 300 Published Correction Factors
Communication and Data Download	Data Download and Instrument Setup on PC via Charging and PC Communication Cradle / Data Download via AutoRAE 2 Automatic Test and Calibration System / Wireless Data and Status Transmission via Built-in RF Modem (Optional)
Battery Life	12 Hours
Battery Run Time	12 Hours
Standards	ATEX, IECEX

Key features

Compact, personal wireless monitor
PID sensor accurately monitors over 300 VOCs
Built-in library of 190 correction factors for automatic reading in equivalent units
5-way local and remote wireless alarm
Water-, dust-, and shock-resistant
Built-in man down alarm
Fully automatic bump testing and calibration with AutoRAE2
