Udyogi

Ultra 5001 LRX non-vented

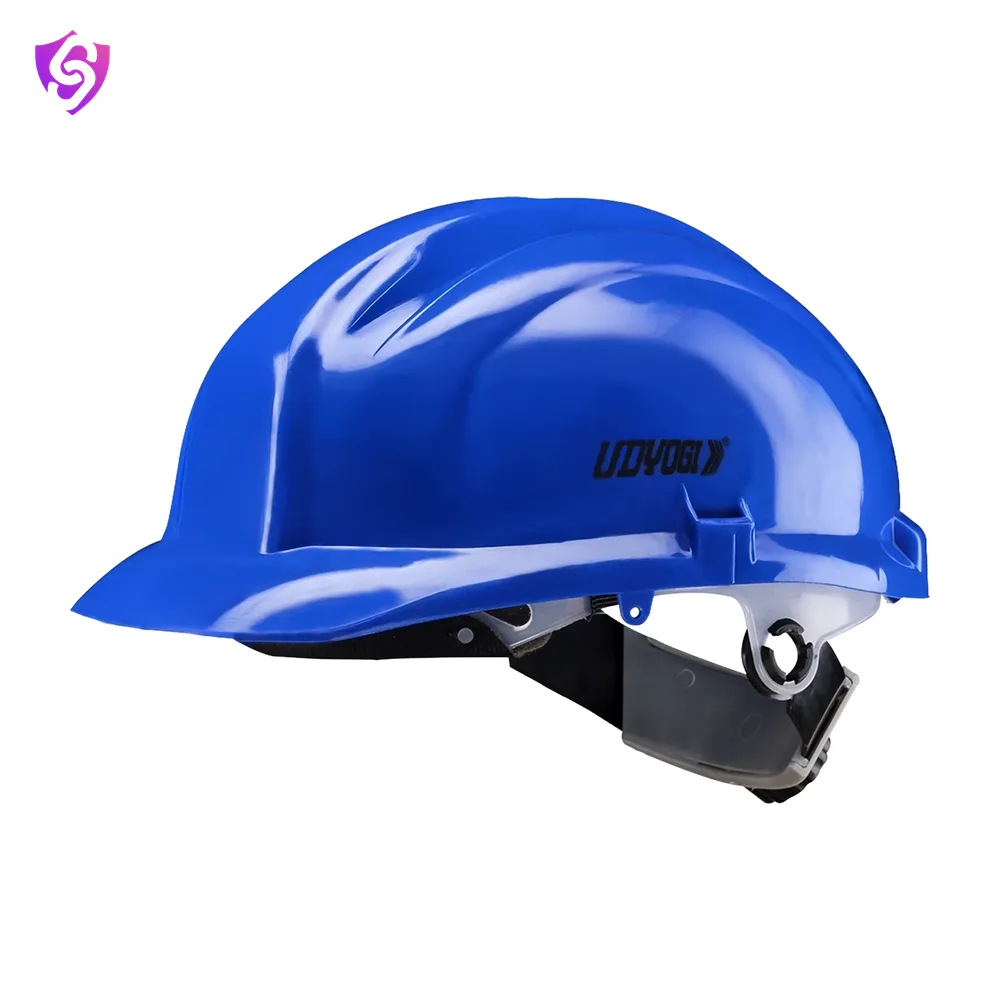

Name: Udyogi Ultra 5001 LRX non-vented
Brand: Udyogi

Non-ventilated HDPE Safety Helmet- Unique accessories slot, 3-ribbed shell with 6-point suspension

IS 2925EN 397

Colours

YellowPurpleRedWhiteBlueDark GrayGreenOrange

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Shell	HDPE (High Density Polyethylene)
Ventilation	Non-ventilated
Suspension	6-point Textile suspension
Head adjustment	Ratchet fit
Peak size	22 mm.
Accessories slot size	15 mm
Internal vertical clearance	Textile- 31 mm.
Wearing height	95 mm (textile)
Circumference of Headband	530 mm – 600 mm.
Cradle width	24.58 mm
Chin strap width	19.85 mm
Weight	400 grams
Standards	IS 2925:1984, EN 397:2012
Colours	Yellow, Purple, Red, White, Blue, Dark Gray, Green, Orange

Key features

Nonvented durable safety helmet, made of HDPE compound
Three ribs structure at the top of the helmet helps in absorbing the shock of the falling objects

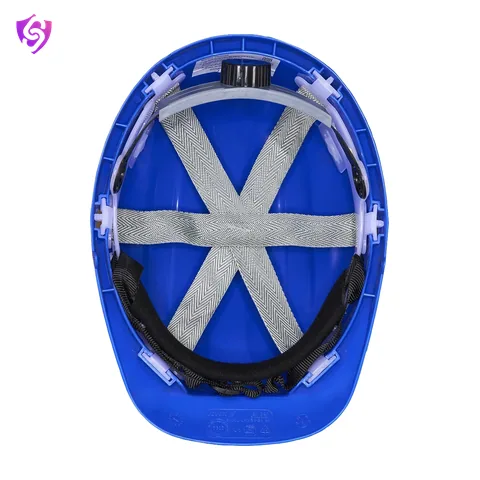

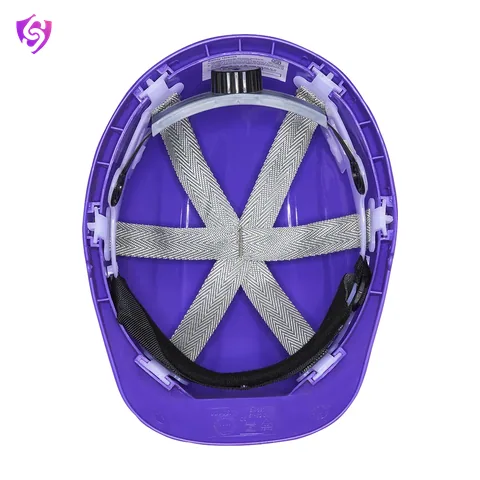

6-point textile helps to distribute the load while impact occur
Ratchet fit adjustment for universal fit
Adjustable chin strap for customized fit and comfort
High quality sweat band provides comfort
Unique slot on both sides for its face shield and ear muff accessories
Aesthetic look with smooth finish – solid colour resin for a permanent, no-chip, no-peel finish"

Applications

Cement
Mining
Pharmaceutical
Chemical & Fertilizer
Construction
Oil & Gas

Care and replacement

Inspect the shell and harness before each use. Replace the helmet after any significant impact, or if the shell is cracked, dented or discoloured. Replace within the service life marked by the manufacturer. Do not paint or apply solvents to the shell.
