Karam

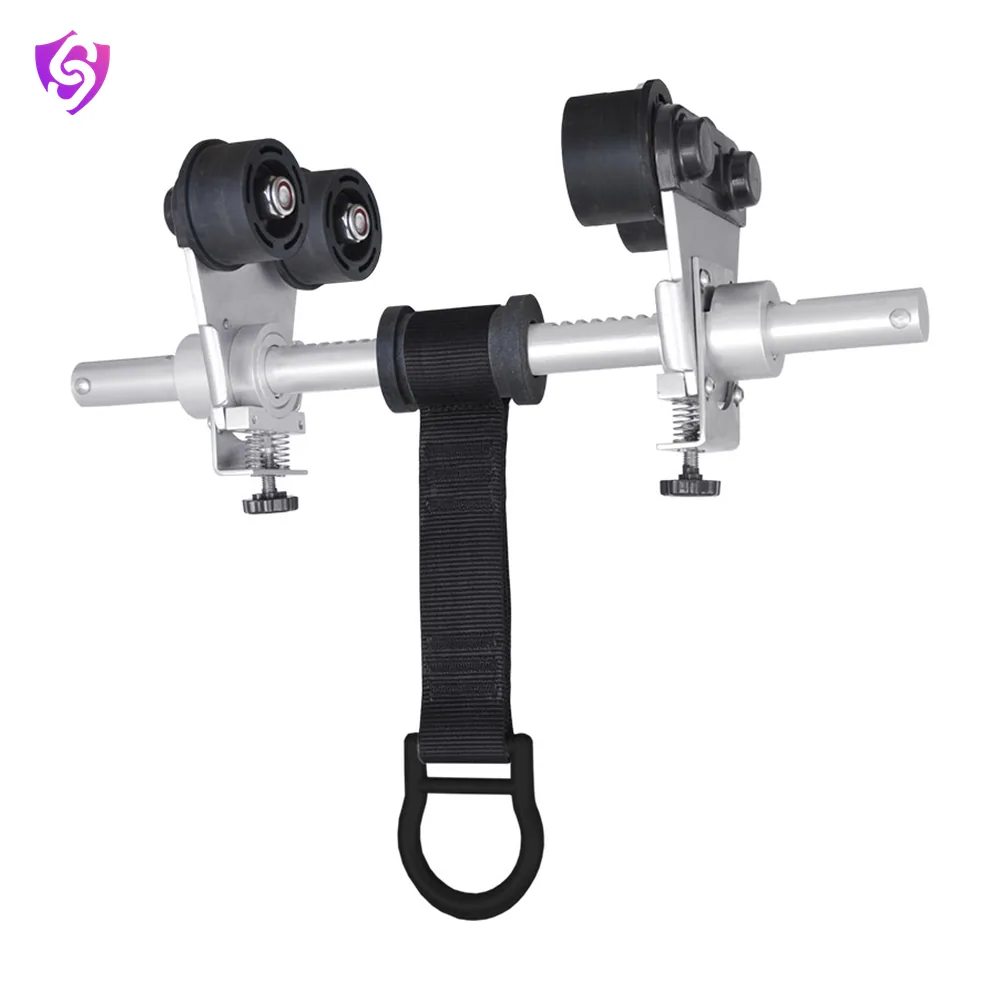

Di-Electric Beam Anchor Trolley

Name: Karam Di-Electric Beam Anchor Trolley
Brand: Karam

The SA15B is engineered to deliver reliable safety and mobility for workers performing elevated tasks.

Model SA15B- Type B Anchor EN 795IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA15B- Type B Anchor
Material	Aluminium and stainless steel
Minimum Breaking Strength	23kN
Flange Width	80mm to 250mm
Net Weight	3.70kg ± 0.01kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 795:2012 Type B, IS 3521(Part 7):2021 Conforms to ANSI Z 359.18:2007

Key features

Smooth gliding design for effortless horizontal mobility.
Adjustable jaw fits a wide range of flange widths.
Electrically insulated rollers for added protection in electrical zones.
Durable build using polymer, aluminium alloy, and stainless steel.
Provides dependable anchorage with enhanced hand protection.

Applications

Construction
Work at Height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
