Door and Window Anchorages

Name: Karam Door and Window Anchorages
Brand: Karam

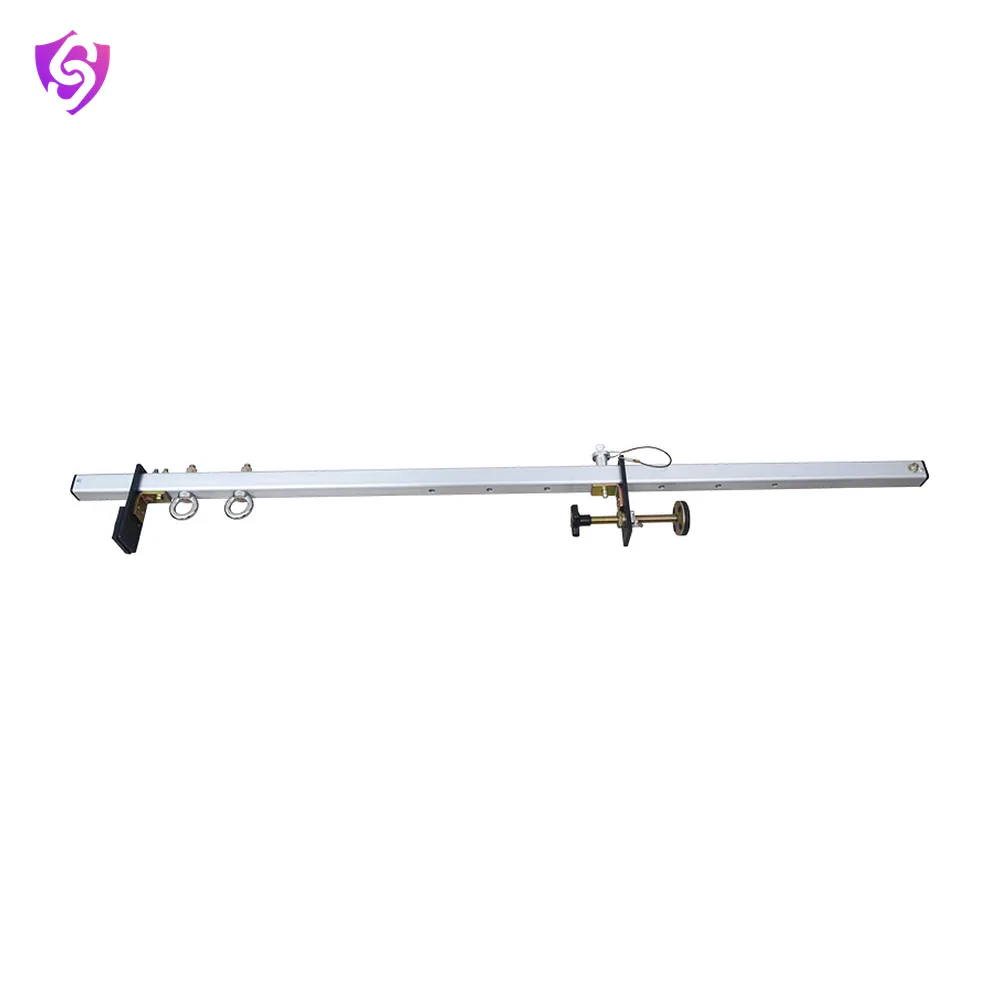

The PN 802 is a lightweight, portable anchorage solution designed to provide secure fall protection in challenging environments.

Model PN802 Type B Anchor EN 795IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN802 Type B Anchor
Material	Aluminium alloy
Minimum Breaking Strength	15kN
Net Weight	4.85kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 795:2012 Type B, IS 3521(Part 7):2021, TS 16415:2013 Type B (for upto 2 users)

Key features

High-strength aluminium alloy construction with anodized finish for durability
Lightweight and portable design for easy transport and setup
Adjustable opening range from 600 mm to 1250 mm
Secure spring-loaded pin mechanism for safe locking
Two eye bolts for dependable anchorage points

Applications

Work at Height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
