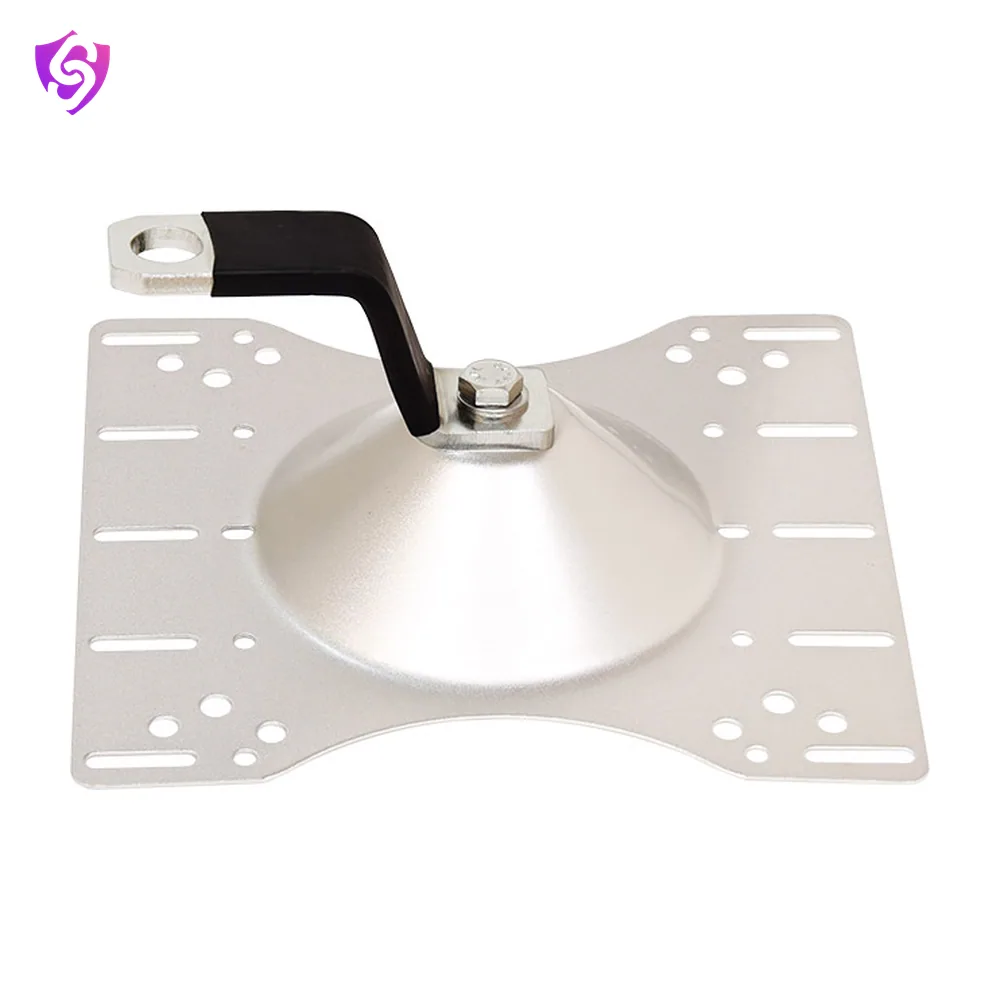

Extremity Anchor Post for Trapezoidal Roof

Name: Karam Extremity Anchor Post for Trapezoidal Roof
Brand: Karam

The extremity anchor post is typically installed at the edge of the trapezoidal roof and is securely fixed to the structural elements of the building.

Model SA87A(E) EN 795AS/NZS 5532

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA87A(E)
Material	Stainless Steel 316
Finish	Body: ED coated grey Swivel Anchor Eye: Electropolished
Weight	1.90kg
Breaking Strength	15kN
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A, AS/NZS 5532:2013

Key features

Extremity Anchor Post designed to be fixed on the Trapezoidal Roof with help of rivets and self-drilled screws supplied with anchor post.
Anchor to be fixed on the roof sheets peak to prevent water clogging.
Specially designed Swivel anchor eye at center of the plate to be used as anchorage point.
Swivel anchor eye comes with inbuilt shock absorption to reduce the impact on roof.
It is compatible with below mentioned pitch from 200.0mm, 250.0mm and 300.0mm on trapezoidal sheets

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
