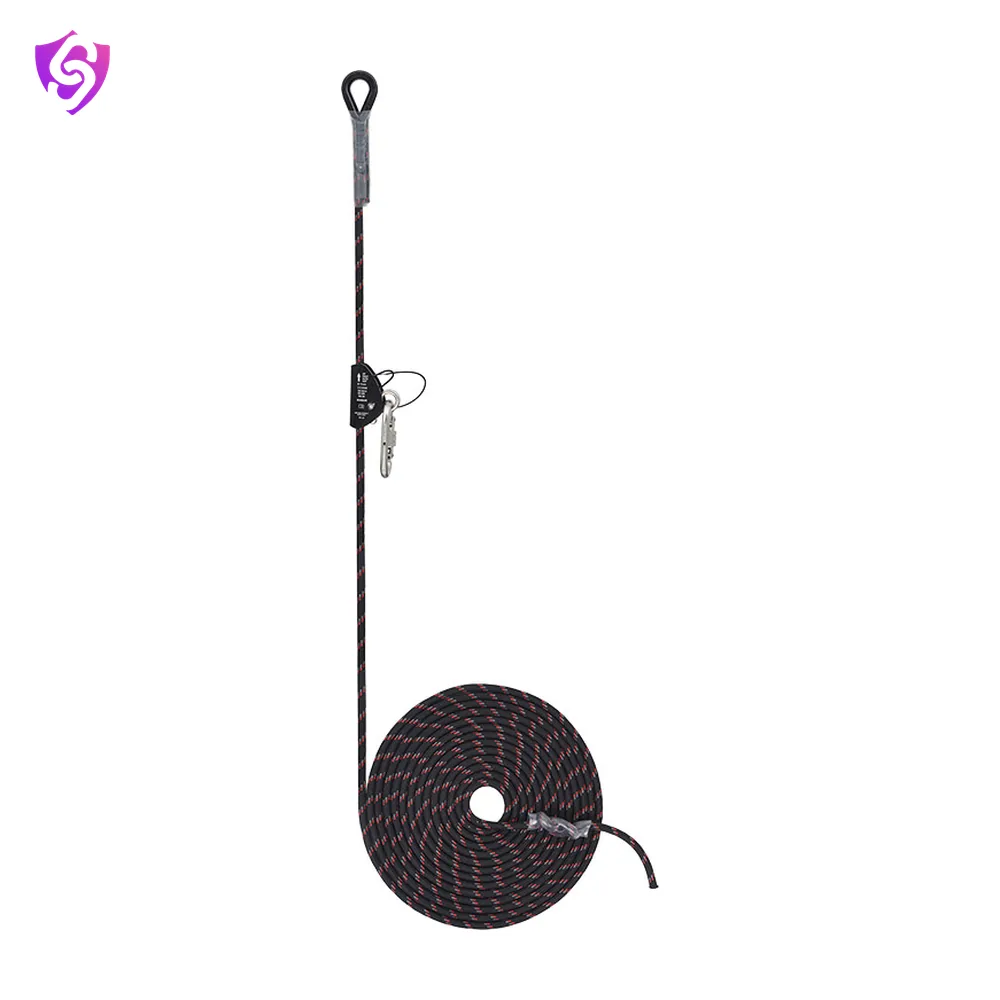

Guided Type Fall Arrester System on Flexible Anchorage Line

Name: Karam Guided Type Fall Arrester System on Flexible Anchorage Line
Brand: Karam

PN 2009 is a robust rope grab system engineered for consistent fall protection during vertical climbing and descent on fixed lifelines.

Model PN2009 EN 353IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN2009
Rope Grab for PN2009	Openable aluminium alloy rope grab: RG09
Rope Grab for PN2009(F)	Non-openable aluminium alloy rope grab: RG09(F)
Rope Grab for PN2009(SA)	Openable aluminium alloy rope grab RG09 permanently stitched with shock absorber PN300(S)
Attachment Element	Steel screw locking karabiner PN112(C)
Anchorage Line	Kernmantle rope of dia 11mm
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 353-2:2002, IS 3521(Part 4):2021

Key features

Aluminium rope grab for smooth upward and downward movement
Strong, secure connection with steel screw-lock karabiner
Ensures controlled mobility on vertical lifelines
Designed for regular industrial and field height operations

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
