H-Base Davit

Name: Karam H-Base Davit
Brand: Karam

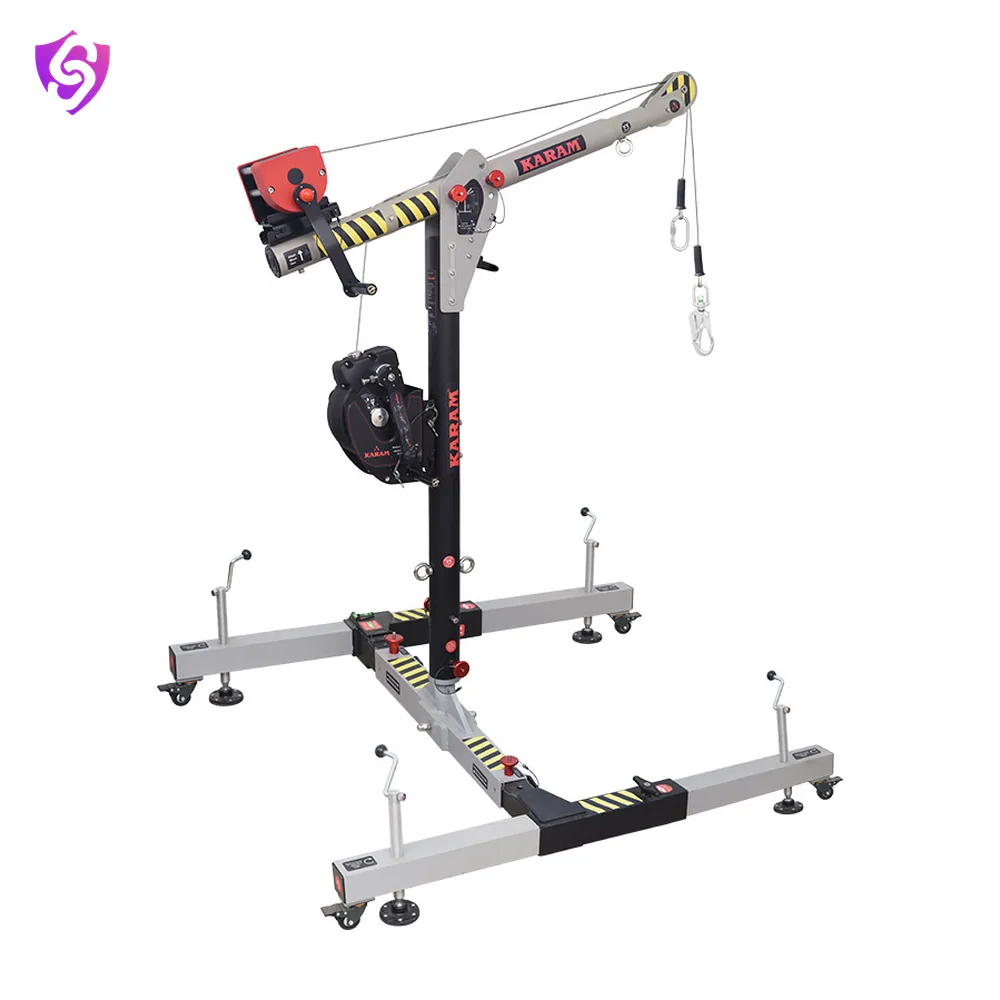

The DA01 H-Base Davit is a portable and modular overhead anchorage solution designed for safe entry and rescue in confined spaces.

Model DA01 AS/NZS 5532EN 795ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	DA01
Material	High strength and durable aluminium alloy
Min-Max. Opening of H-Base	Ø1100mm - Ø1510mm
Maximum Load Capacity	500kg
Finish	Powder coated
System Strength	21kN
Weight	62.56kg ± 0.10kg
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	AS/NZS 5532:2013, EN 795:2012 type B, Atex 2014/34/EU

Key features

Tool-free, five-component modular setup
Three adjustable arm height positions
Foldable legs for effortless transport
Swivel column rotates smoothly under load

Applications

General Industry
Public Utilities

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
