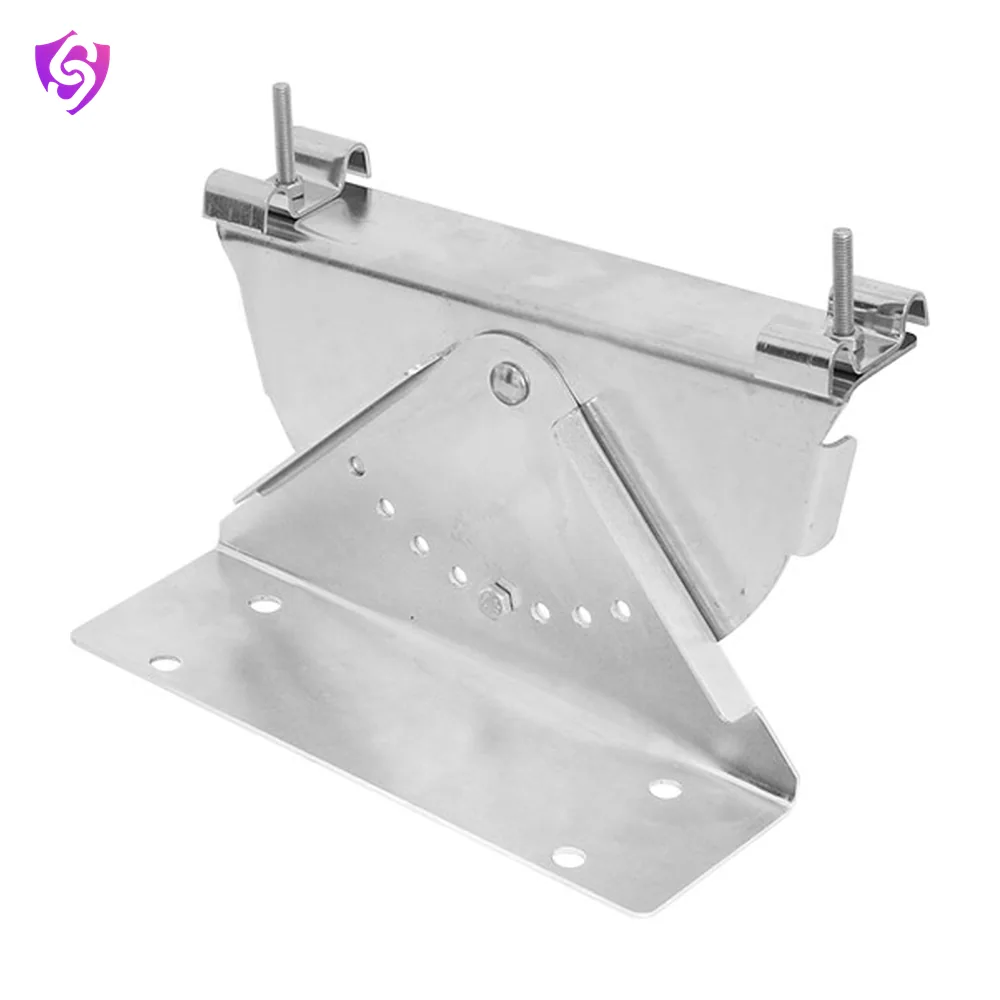

Walkway Wide Bracket with Fixation Clamp

Name: Karam Walkway Wide Bracket with Fixation Clamp
Brand: Karam

The WW 01S(SS)SUB3 Walkway Wide Bracket with Fixation Clamp is specifically designed for standing seam roofs to provide secure and anti-slip access to roof structures with angles ranging from 0° to 48°.

Model WW01S(SS)SUB3 IS 800

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	WW01S(SS)SUB3
Material	Stainless Steel (SS-316)
Finish	Electropolished / E-Coated
Weight	1.36 kgs. ± 0.05 kgs
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	IS 800

Key features

Walkway bracket for Standing seam roof with wide bottom to provide safe anti‑slip access to roof structures having roof angle from 0° to 48°.
Walkway SS Bracket specially designed to be fixed on Standing seam roof with clamps.
Maximum span length between two consecutive brackets is 800mm to 1000mm or 3 brackets per 3-meter-long grating.
Comes with two fixation clamps to install the grating on this bracket.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
