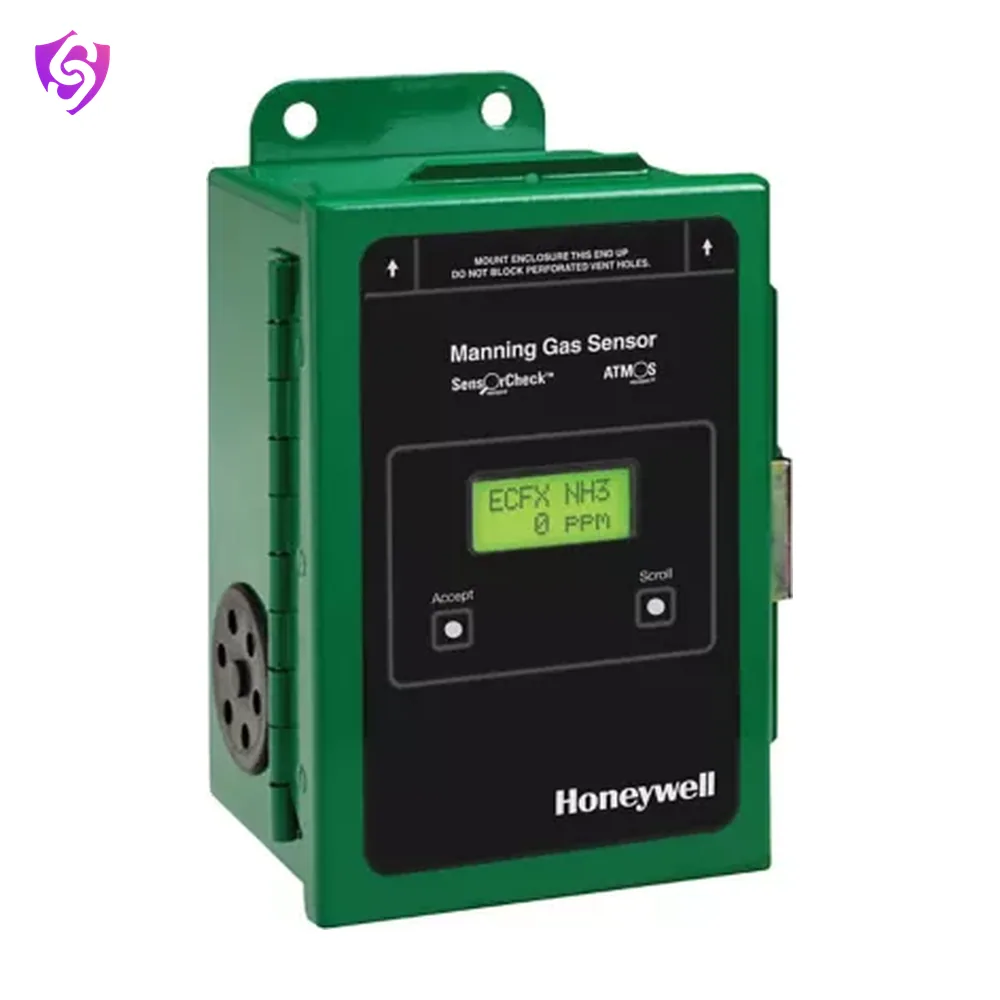

Manning EC-FX-NH3 Gas Detector
Now one tough sensor can work in three harsh environments. With the stability you can count and low cost you want, the EC-FX-NH3 is the new gold standard in ammonia detection.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | 3 Years from Date of Shipment |
| Display Type | LCD |
| Display Included | Yes |
| Relay Included | Yes |
| Sensors Included | 1 |
| Wireless Technology | ATMOS™ Technology |
| Visual Indicators | LED Indicator |
| Replacement Parts | Ammonia (NH3) Cell |
| Repeatability | <10% Full Scale |
| Weight range | 3 lbs |
| Humidity Range | 5 to 100% RH (Condensing) |
| Number of Analog Outputs | 1 |
| Analog Output Signal Type | mA |
| Display Matrix | Alpha Numeric |
| Accuracy | ± 5% Full Scale |
| Maximum Pressure | 10 psig |
| Gas Type | NH3 |
| Measuring Range | High Range: 0-500 ppm, 0-1000 ppm / Low Range: 0-100 ppm (Standard), 0-200 ppm, 0-250 ppm |
| Minimum Temperature | -45°C |
| Storage Temperature | -40 to +49°C |
| Analog Output Signal Current | 4 to 20 mA |
| Power Requirement | 24 VDC |
| Operating Voltage | 24 VDC |
| Material | Stainless Steel |
| Enclosure Material | Stainless Steel |
| Specifications Met | 0.125 (ID) x 0.250 (OD) |
| NEMA Rating | NEMA 1 |
| Ingress Protection | IP44 |
| Application | Cold Storage / Engine Rooms / Refrigeration Systems |
| Industry | Energy |
Key features
- Responds quickly to ammonia concentrations in low parts per million (PPM)
- Rugged construction for long-term reliability
- ATMOSTM Technology for environmental flexibility
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
