Honeywell

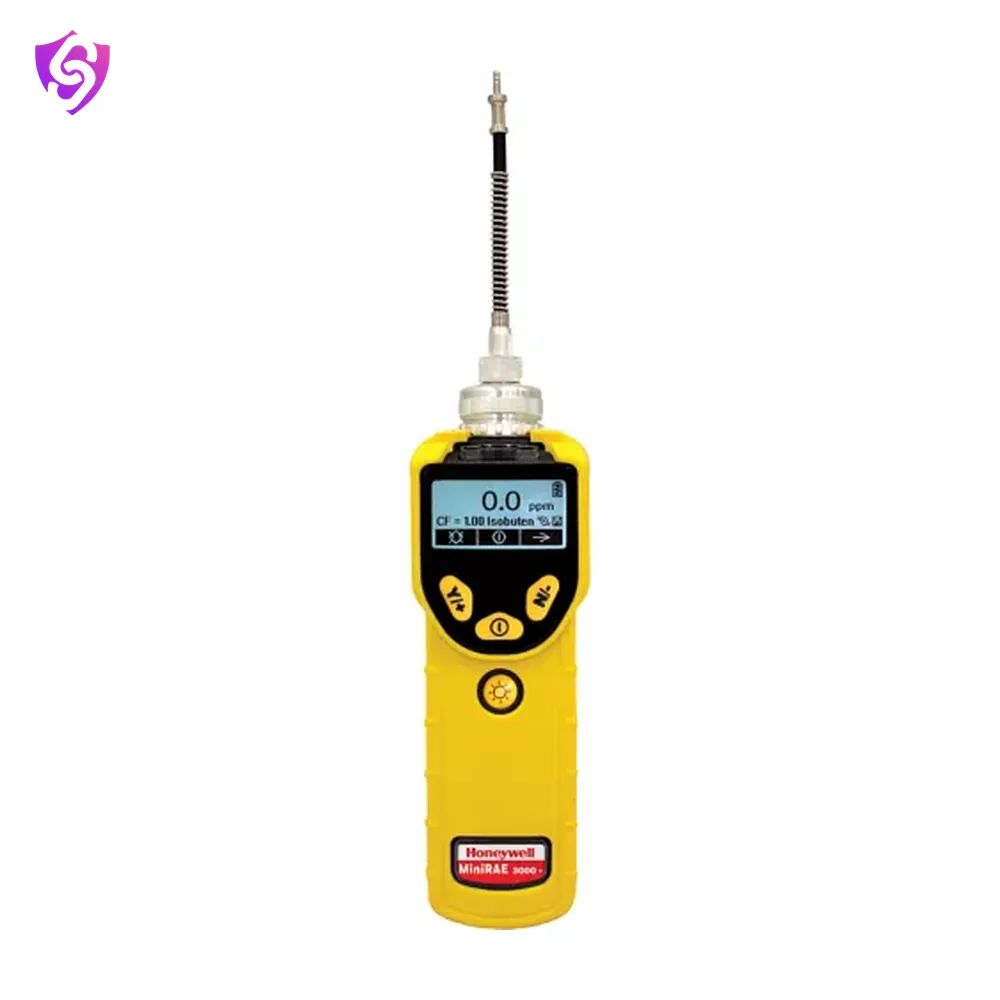

MiniRAE 3000 + Portable Handheld VOC Monitor

Name: Honeywell MiniRAE 3000 + Portable Handheld VOC Monitor
Brand: Honeywell

Elevate your gas detectors’ potential with Honeywell's expert maintenance services!

ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	26 ounce av / 738 gram
Instrument Size	10 in L x 3.0 in W x 2.5 in H (25.5 x 7.6 x 6.4 cm)
Weight range	738 g gram
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Sensor Range	0-999.9 ppm / 1,000 to 15,000 ppm
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	122 degree Fahrenheit / 50 degree Celsius
Alarm Settings	Additional Diagnostic Alarm and Display Message for Low Battery and Pump Stall / Alarm Latching with Manual Override or Automatic Reset / High: 3 Beeps and Flashes per sec / Low: 2 Beeps and Flashes per sec
Alarm Type	Audible (95 dB) / Visual (LED)
Alarm Included	Yes
Series Name	MiniRAE 3000 + (PGM-7320)
Languages	Multi-Language Support with 10 Languages Encoded
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	16 Hours (12 Hours with Alkaline Battery Adapter) hours
Calibration Procedures	Reflex PID Technology Calibration Memory for 8 Calibration Gases, Alarm Limits, Span Values and Calibration Dates
Calibration Points	2 / 3
Standards	Classified as Intrinsically Safe for use in Class I, Div 1, Group A, B, C, D / Europe: ATEX II 2G EEx ia IIC T4 / US and Canada: CSA
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Standard 6 Months at 1 min Intervals / Standard 6 months at one-minute intervals
Display Viewing Area	28 x 43 mm
Display Included	Yes
Display Readout	Battery and Shutdown Voltage / Date and Time, Temperature / High Values / STEL and TWA / VOCs as ppm by volume (mg/m³)
Display Type	4 Lines, LED Backlight
Filter Included	No
User Options	Alarms latching with manual override or automatic reset
Sampling Pump Location	Horizontally and Vertically
Sampling Pump Included	Yes
Sampling Pump Range	100 ft meter / 100ft (30m) meter

Key features

Most advanced handheld VOC monitor on the market
PID measures from 0-15,000 ppm
Humidity compensation
Patented PID lamp auto-cleaning technology
Patented Reflex PID Technology™
Optional Mesh Radio for ConneXT compatibility
Optional built-in Bluetooth transmitter that transmits real-time data up to 2 miles with RAELink3 wireless router
Sample pump draws from up to 100 feet
Correction factors for more than 200 compounds
IP 65/67 water-proof and dust-tight
Logs up to 6 months of data at 1-minute intervals
Multi-language capability – up to 10 languages
