Honeywell

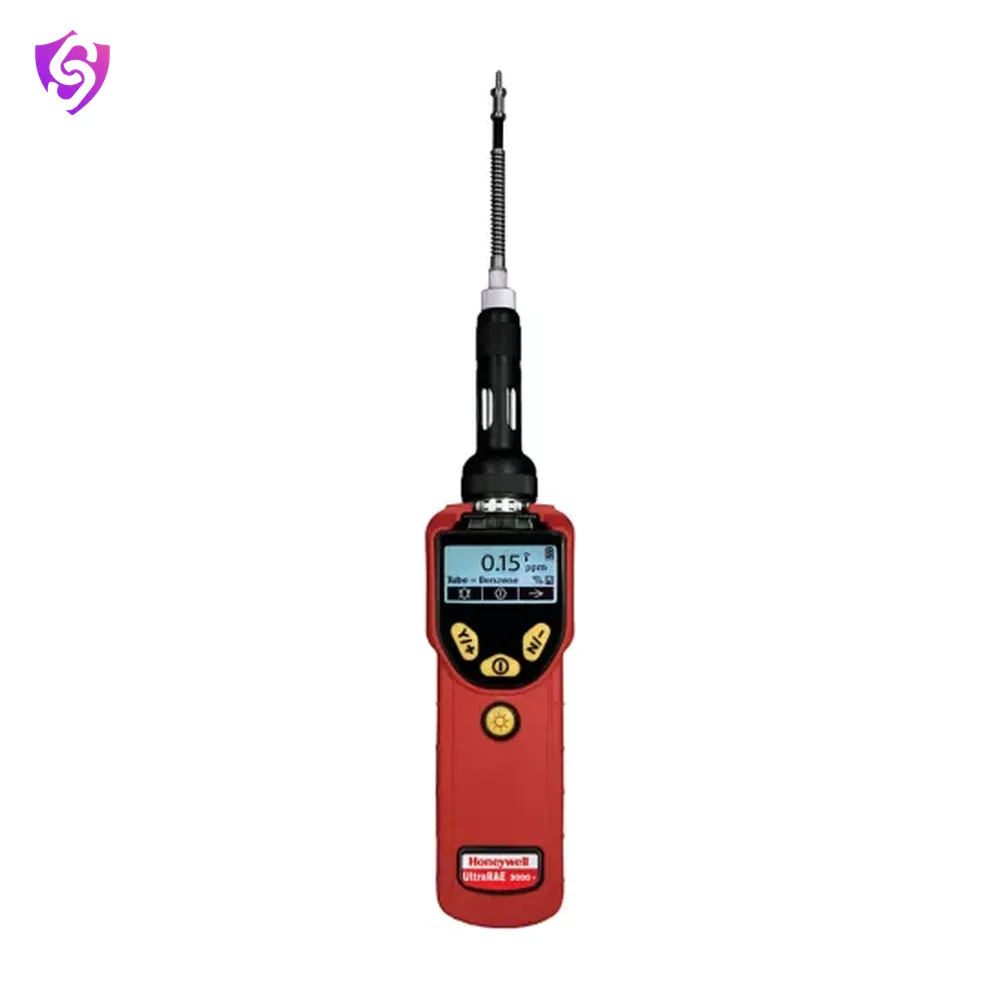

UltraRAE 3000 + PID9.8 Portable Handheld Computer

Name: Honeywell UltraRAE 3000 + PID9.8 Portable Handheld Computer
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	738 gram
Weight range	738 g gram
Instrument Size	10” L x 3.0” W x 2.5” H (25.5 x 7.6 x 6.4 cm)
Sensor Range	Benzene 0 -200 ppm / Butadiene 0-200 ppm / VOC (0-10000ppm)- Benzene (0-200ppm)- Butadiene (0-200ppm) / VOCs 0 to 99.99 ppm, 100 to 999.9 ppm, 1000 to 9999 ppm
Humidity Range	0 to 95% RH (Non-Condensing) percent
Extended Range	0.01-10,000 ppm
Minimum Temperature	-20 degree Celsius
Maximum Temperature	50 degree Celsius
Alarm Included	Yes
Series Name	UltraRAE 3000+ PID9.8
Languages	Multi-Language Support
Alarm Type	Audible (95 dB) / Audible- Visual- Vibrating / Visual (LED)
Alarm Settings	Additional Diagnostic Alarm and Display Message for Low Battery and Pump Stall / Alarm Latching with Manual Override or Automatic Reset / High: 3 Beeps and Flashes per sec / Low: 2 Beeps and Flashes per sec
Battery Run Time	16 Hours hours
Batteries Required	Yes
Batteries Included	Yes
Calibration Procedures	Calibration Memory for 8 Calibration Gases, Alarm Limits, Span Values and Calibration Dates / Reflex PID Technology / Two-Point or Three-Point Calibration for Zero and Span
Calibration Points	2 / 3
Standards	Europe: ATEX II 2G EEx ia IIC T4 / IECEx CSA 10.0005 Ex ia IIC/IIB GbT4 / US and Canada: CSA, Classified as Intrinsically Safe for use in Class I, Div 1 Group A, B, C, D / US and Canada: CSA- Classified as Intrinsically Safe for use in Class I- Division 1
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Standard 6 Months at 1 min Intervals
Display Viewing Area	28 x 43 mm
Display Included	Yes
Filter Included	No
User Options	Alarms latching with manual override or automatic reset
Sampling Pump Rate	400
Sampling Pump Range	100 ft meter
Sampling Pump Included	Yes
Sensor Type	Photoionization
