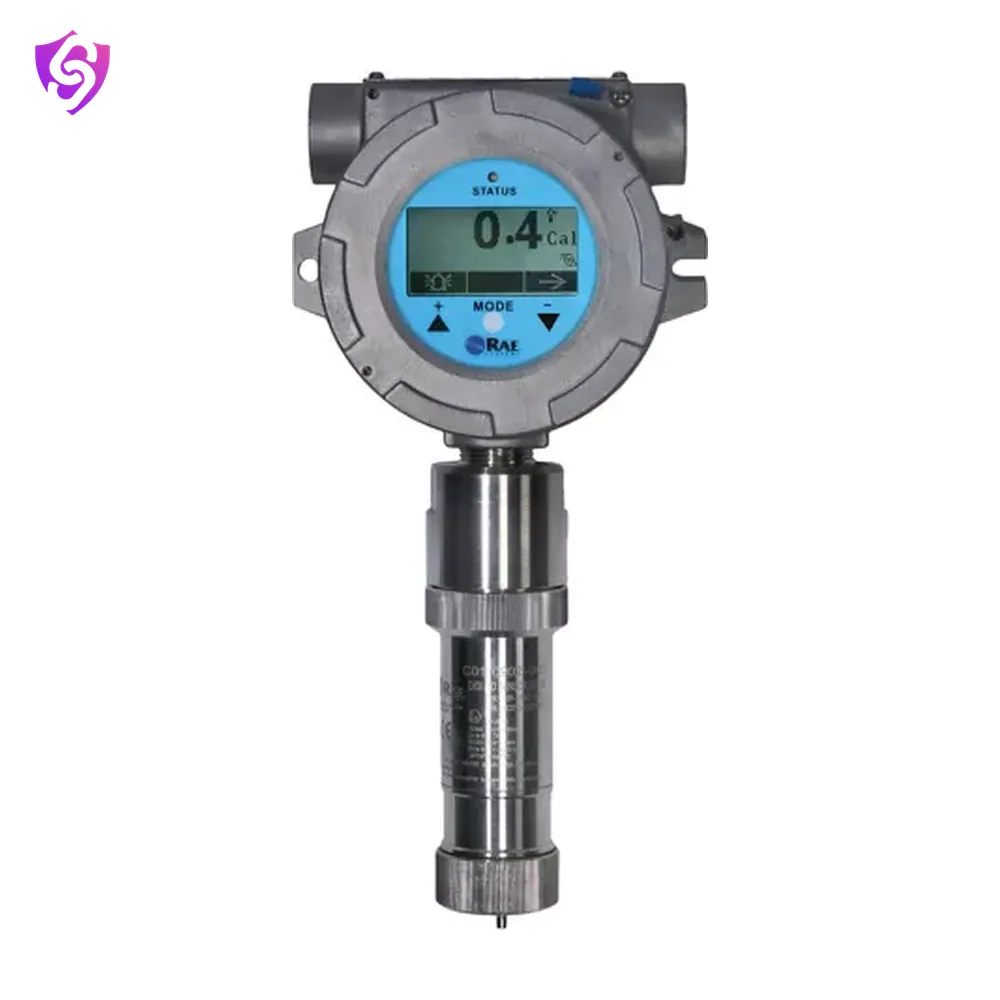

RAEGuard 2 PID Gas Detector

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs)

Specifications

Brand	Honeywell
Warranty	1 Year for the Pump / 2 Years for the Housing and Electronics
Alarm Included	Yes
Display Type	LCD
Display Included	Yes
Filter Included	Yes
Sampling Pump Included	Yes
Wireless Technology	Mesh
Replacement Parts	DigiPID Sensor Module, Lamp
Vibration	Meets or Exceeds MIL Spec 810C Method 514.2, Curve AW12
Weight range	3.5 Kg
Inlet Connector Thread	0.75 in
Dimension	L: 10.1 in W: 7.9 in H: 4.2 in
Humidity Range	0 to 95% RH (Non-Condensing)
Number of Analog Outputs	1
Analog Outputs	4 to 20 mA
Analog Output Connection	3-Wire
Calibration Procedures	Zero and Span Low, Zero, Span Low and Span High
Calibration Points	2
Calibration Gas	Isobutylene
Calibration	Automatic, Fresh Air
Display Viewing Area	128 x 64
Filter Type	Coalescing
Filter Required	Yes
Number of Digital Communication Ports	1
Relay Rated Load	30 VDC, 2A
Relay Circuit Resting Configuration	NO, NC
Sampling Pump Location	Internal
Sensor Mechanism	PID
Sensing Method	PID
Operating Life	2

Faster response time - Thanks to the sample flow-through design
Reduce maintenance cost - Easy to remove sensor module in hazardous locations without using of tools
No false alarms - Large UV lamp and better sealing allows greater sensitivity, faster speed of response and better resolution
