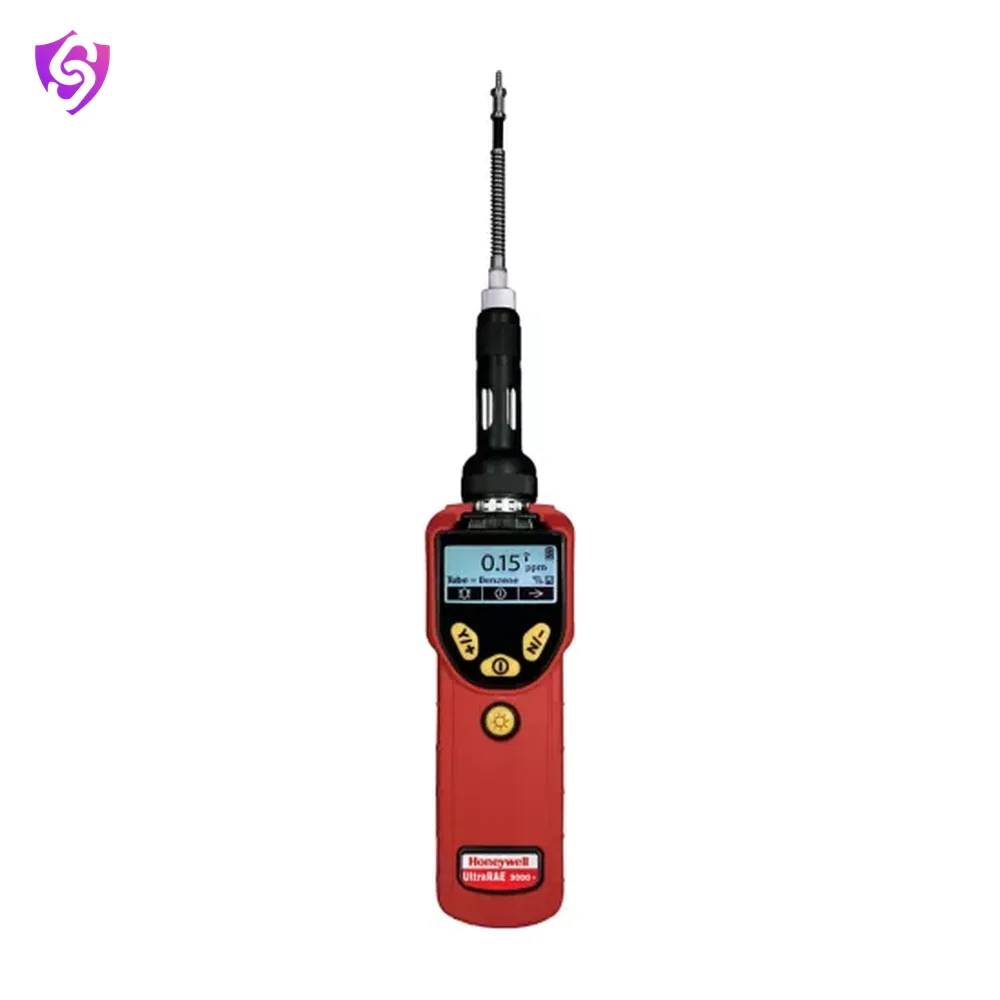

UltraRAE 3000 + Portable Handheld Compound Specific VOC Monitor

Name: Honeywell UltraRAE 3000 + Portable Handheld Compound Specific VOC Monitor
Brand: Honeywell

The UltraRAE 3000 is the most advanced Compound-Specific Monitor on the market.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	26 ounce av / 738 gram
Instrument Size	10” L x 3.0” W x 2.5” H (25.5 x 7.6 x 6.4 cm)
Weight range	738 g gram
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Extended Range	0.01-10,000 ppm
Sensor Range	Benzene 0 -200 ppm / Butadiene 0-200 ppm / VOCs 0 to 99.99 ppm, 100 to 999.9 ppm, 1000 to 9999 ppm
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	122 degree Fahrenheit / 50 degree Celsius
Alarm Settings	Additional Diagnostic Alarm and Display Message for Low Battery and Pump Stall / Alarm Latching with Manual Override or Automatic Reset / High: 3 Beeps and Flashes per sec / Low: 2 Beeps and Flashes per sec
Alarm Type	Audible (95 dB) / Visual (LED)
Alarm Included	Yes
Series Name	UltraRAE 3000+
Languages	Multi-Language Support
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	16 hours
Calibration Procedures	Calibration Memory for 8 Calibration Gases, Alarm Limits, Span Values and Calibration Dates / Reflex PID Technology / Two-Point or Three-Point Calibration for Zero and Span
Calibration Points	2 / 3
Standards	Europe: ATEX II 2G EEx ia IIC T4 / IECEx CSA 10.0005 Ex ia IIC/IIB GbT4 / US and Canada: CSA, Classified as Intrinsically Safe for use in Class I, Div 1 Group A, B, C, D
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Standard 6 Months at 1 min Intervals / Standard 6 months at one-minute intervals
Display Viewing Area	28 x 43 mm
Display Included	Yes
Filter Included	No
User Options	Alarms latching with manual override or automatic reset
Sampling Pump Included	Yes
Sampling Pump Range	100 ft meter / 100ft (30m) meter
Sampling Pump Rate	400
Number of Sensors Included	3

Key features

Dual detection mode for total benzene exposure assessment: 60-second snapshot or 15-minute STEL measurement
High sensitivity to benzene (as low as 10 ppb) provides a lower detection range for future benzene exposure limits
Lower risk of false alarms through advanced speciation method
Total VOC measurement mode with extended range of 0.05 to 10,000 ppm
