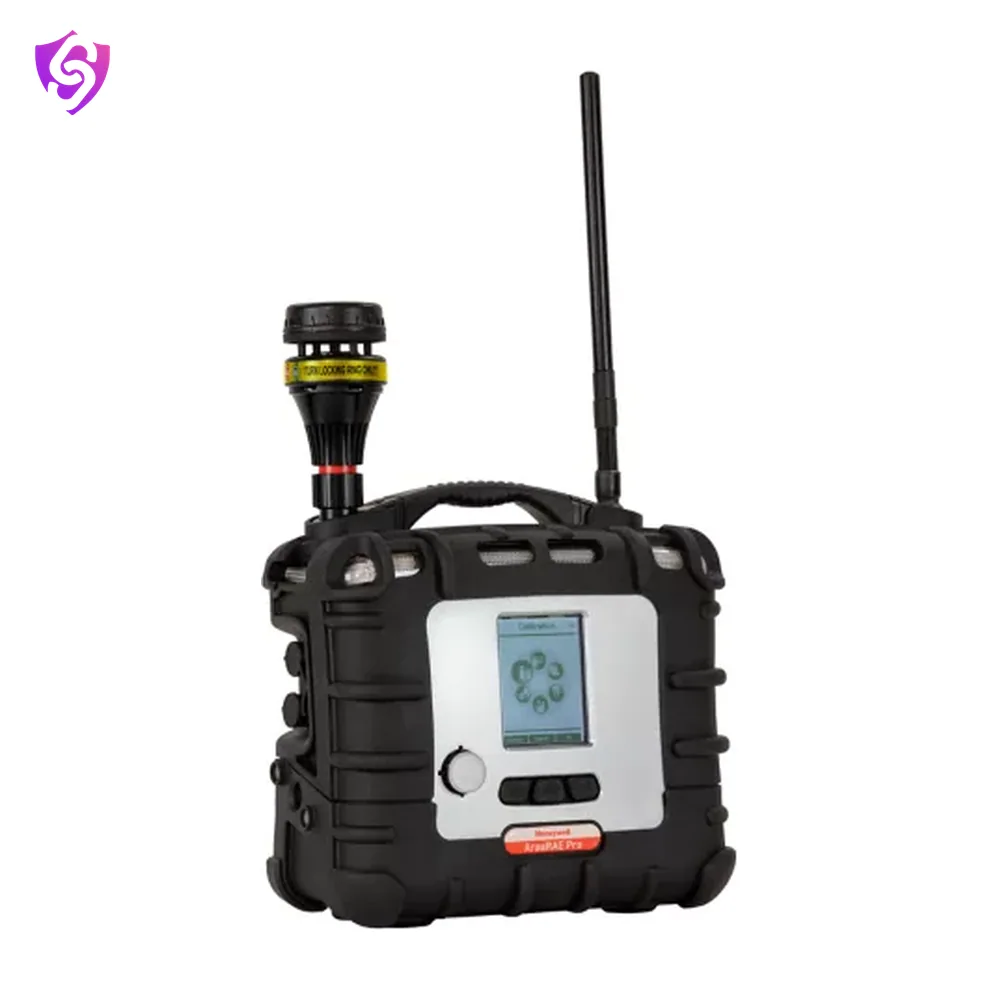

AreaRAE Pro PID (Photoionization Detector) Sensors

Once signed in, you may be able to access additional documents for your account.

Specifications

Brand	Honeywell
Warranty	Four years for O2 Liquid Oxygen sensors
Alarm Type	Audible, Visual, Vibrating
Datalogging	Continuous data logging (90 days for 7 gas sensors- 1 Gamma
User Options	3 operation and programming keys
Wireless Technology	BLE- MESH- WiFi
Instrument Size	12.36” x 12.04” x 6.53”
Sensor Range	VOC (0-2000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), NH3 (0-100ppm), CO (0-2000ppm), Cl2 (0-50ppm), ETO (0-500ppm), H2 (0-2000ppm), HCL (0-15ppm), HCN (0-50ppm), HF (0.5-10ppm), H2S (0-1000ppm), O2 (0-30%), SO2 (0-20ppm), NO (0-250ppm), NO2 (0-20ppm), PH3 (0-20ppm), Gamma (0.01 μSv/h to 0.2 mSv/h)
Humidity Range	0%-95%
Gas Type	VOC, LEL, CO2, NH3, CO, Cl2, ETO, H2, HCL, HCN, HF, H2S, O2, SO2, NO, NO2, PH3, Gamma
Standards	US / Canada: Class 1, Division 2 Groups A, B, C, D
Ingress Protection	IP65
Weight	6.5 kilogram
Sampling Pump Range	100ft (30m)
Minimum Temperature	-20 degree Celsius
Maximum Temperature	50 degree Celsius
Industry	Government & Public Sector
