Honeywell

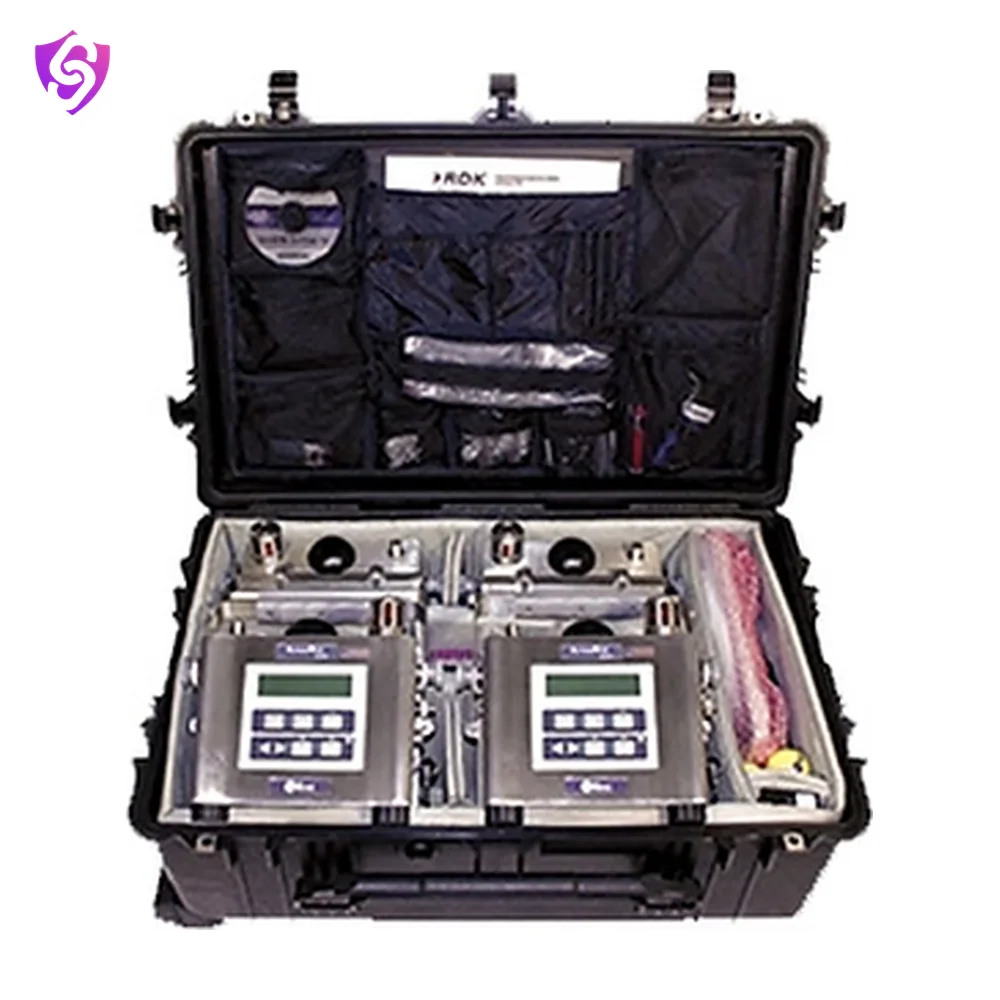

AreaRAE Pro Rapid Deployment Kit (RDK)

Once signed in, you may be able to access additional documents for your account.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight range	6.3 kg (13.88 lb) Full Option Configuration / 6.5 kg ( 14.33 lb) Full Option Configuration (+RAEMet)
Instrument Size	12.36 in x 12.04 in x 6.53 in (with Rubber Boot)
Humidity Range	0 to 95% RH (Non-Condensing)
Minimum Temperature	-20
Maximum Temperature	50
Alarm Included	Yes
Series Name	AreaRAE Pro
Alarm Type	Audio (Multi-Tone 108 dB) / Visual (Bright LED 360 Degree View)
Battery Run Time	12 Hours with Wireless Connectivity on Alkaline Battery Adapter hours / 20 Hours with Wireless Connectivity on Li-Ion Battery Pack hours
Batteries Required	Yes
Batteries Included	Yes
Standards	US/Canada: Class 1, Div 2 Group A, B, C, D
Datalogging Interval	1 to 3,600 sec (User-Configurable)
Datalogging Capable	Yes
Datalogging	Continuous Data Logging (90 Days for 7 Gas Sensors, 1 Gamma Sensor, 1 RAEMet (Wind Speed and Direction, Temp and RH), and GPS at 1 min Intervals, 24/7)
Display Viewing Area	2.5 in x 3.33 in
Display Type	LCD Backlight
Display Matrix	240 x 320
Display Included	Yes
Sampling Pump Rate	450
Sampling Pump Included	Yes
Sensor Type	PID, Catalytic Bead, NDIR, Electrochemical, Gamma
Number of Radiation Sensors Included	1
Number of Gas Sensors Included	22
Warranty	1 Year on All Other Sensors, Battery, and Other Consumable Parts / 2 Years for Non-Consumable Components, Catalytic LEL Sensor and 10.6ev 7R+ PID Lamp / 3 Years for CO, and H2S Sensors / 4 Years for O2 Liquid Oxygen sensors / 6 Months for 9.8ev Lamp PID Sensor
Wireless Enabled	Yes
Ingress Protection	IP65
Decibels	108
Combustible Concentration	Catalytic Bead Sensor (0-100% LEL)
Combustible	Yes
