Honeywell

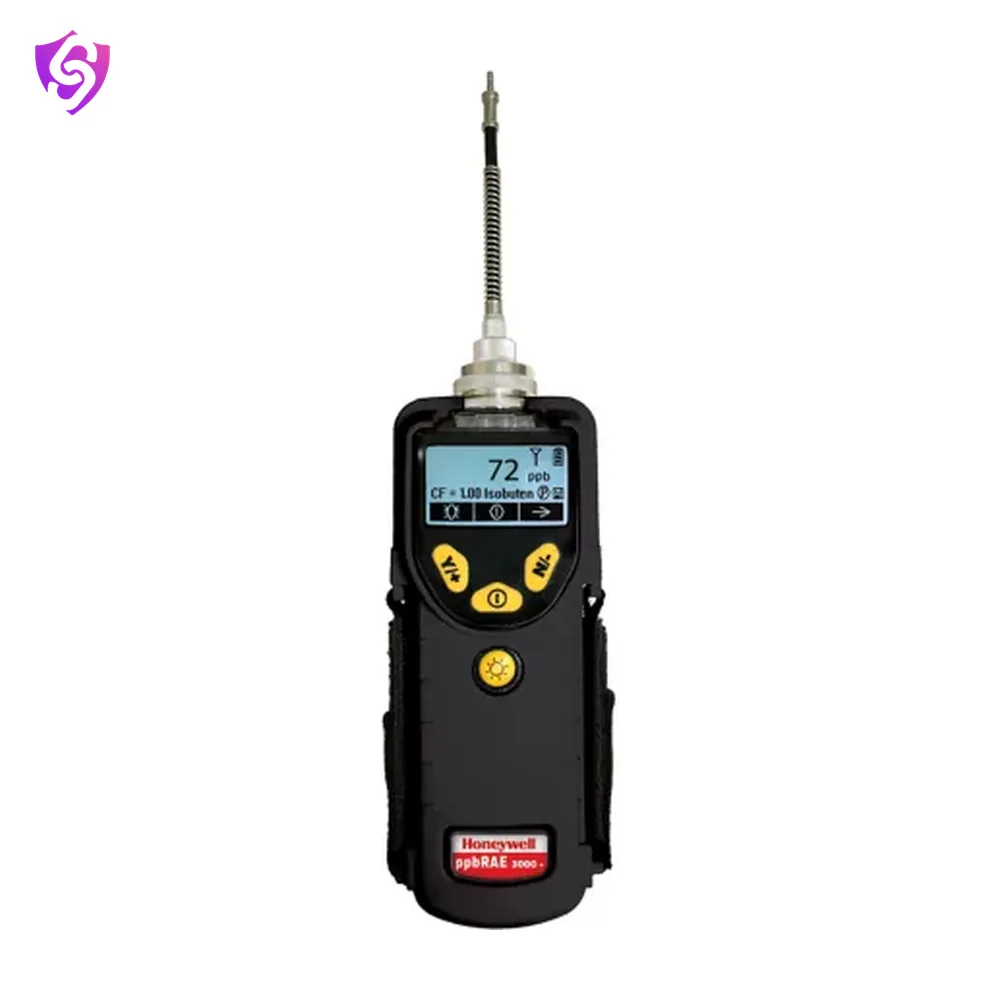

ppbRAE 3000 + Portable Handheld VOC Monitor

Name: Honeywell ppbRAE 3000 + Portable Handheld VOC Monitor
Brand: Honeywell

Elevate your gas detectors’ potential with Honeywell's expert maintenance services!

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	26 ounce av / 738 gram
Instrument Size	10” L x 3.0” W x 2.5” H (25.5 x 7.6 x 6.4 cm)
Weight range	738 g gram
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Extended Range	1 ppb to 10,000 ppm
Sensor Range	0-999.9 ppm / 1,000 to 15,000 ppm
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	113 degree Fahrenheit / 50 degree Celsius
Alarm Settings	Additional Diagnostic Alarm and Display Message for Low Battery and Pump Stall / Alarm Latching with Manual Override or Automatic Reset / High: 3 Beeps and Flashes per sec / Low: 2 Beeps and Flashes per sec
Alarm Type	Audible (95 dB) / Visual (LED)
Alarm Included	Yes
Series Name	ppbRAE 3000 +
Languages	Multi-Language Support with 10 Languages Encoded
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	16 Hours (12 Hours with Alkaline Battery Adapter) hours
Calibration Procedures	Reflex PID Technology Calibration Memory for 8 Calibration Gases, Alarm Limits, Span Values and Calibration Dates
Calibration Points	2 / 3
Standards	Europe: ATEX Ex II 2GEx ia IIC/IIB T4 / IECEx: Ex ia IIC/IIB T4 / US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Div 1 Group A, B, C, D
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Standard 6 Months at 1 min Intervals / Standard 6 months at one-minute intervals
Display Viewing Area	28 x 43 mm
Display Included	Yes
Display Type	4 Lines, LED Backlight
Filter Included	No
User Options	Alarms latching with manual override or automatic reset
Sampling Pump Location	Horizontally and Vertically
Sampling Pump Included	Yes
Sampling Pump Range	100 ft meter / 100ft (30m) meter

Key features

Measures from 1ppb up to 10,000ppb
3-second response time
Humidity compensation
Optional Mesh Radio for ConneXt compatibility
Optional built-in Bluetooth transmitter that transmits real-time data up to 2 miles with RAELink3 wireless router
Sample pump draws from up to 100 feet
Correction factors for more than 350 compounds
Large display reports gas type, correction factor, concentration
Rugged housing for harsh environments
Sensor and lamp auto-cleaning
Multi-language capability – up to 10 languages
MIL-STD-810F certified rugged housing for harsh environments
