Honeywell

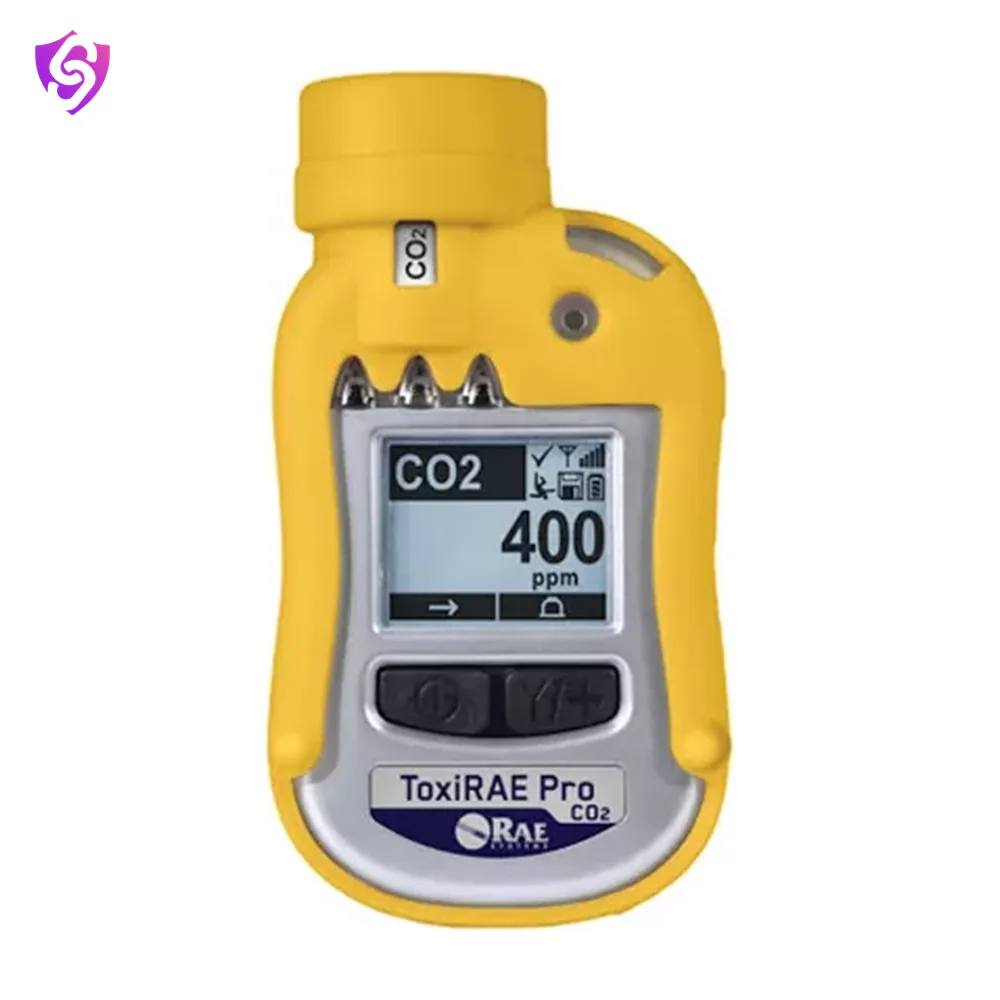

ToxiRAE Pro CO2 Monitor

Once signed in, you may be able to access additional documents for your account.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Warranty	1 Year on All Other Sensors, Battery, and Other Consumable Parts / 2 Years on Non-Consumable Components
Maximum Temperature	131 degree Fahrenheit / 55 degree Celsius
Weight	220 gram / 7.76 ounce av
Alarm Included	Yes
Alarm Type	Audible (95 dB) / Vibrating / Visual (Flashing Bright Red LEDs)
Datalogging Interval	1 Min / 1 to 3,600 sec
Datalogging	Continuous (3 Months) / Three-month capacity
Display Readout	Real-Time Reading of Gas Concentrations in ppm or mg/m3; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality / STEL, TWA, and peak values
User Options	Wireless remote alarm notification; audible (95 dB @ 30 cm)
Wireless Technology	MESH Network
Includes	AC Adapter (100 to 240 V, 50/60 Hz AC to 12 V DC) / CD with Documentation / Calibration Adapters / Calibration Card, Quality Certificate, and Warranty/Registration Card / Charging and PC Communication Cradle / PC Communication Cable / Quick Start Guide / ToxiRAE Pro CO2 Monitor with Sensor as Specified, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery Installed
Instrument Size	4.6 in H x 2.4 in W x 1.2 in D (118 x 60 x 30 mm)
Weight range	220 g
Dimension	H: 118 mm W: 60 mm D: 30 mm
Humidity Range	0 to 95% RH (Non-Condensing) / 0%-95%
Sensor Range	0 to 50,000 ppm / CO2 (0-50000ppm)
Calibration	Automatic with AutoRAE 2 Test and Calibration System or Manual
Sensor Type	Nondispersive Infrared Sensor. Range: 0 to 50,000 ppm. Resolution: 100 ppm
Gas Type	CO2
Communication and Data Download	Data Download and Instrument Setup on PC via Charging and PC Communication Cradle / Data Download via AutoRAE 2 Automatic Test and Calibration System / Wireless Data and Status Transmission via Built-in RF Modem (Optional)
Wireless Frequency	ISM License-Free Bands
Wireless Network	Closed-Loop Network with the EchoView Host / ProRAE Guardian Real-Time Wireless Safety System
Wireless Range	ToxiRAE Pro to Mesh Router or EchoView Host - 660 ft (200m) / ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh Modems - 330 ft (100m)
Battery Life	11 Hours
Keypad Type	2 Buttons for Operation and Programming
Resolution	100 ppm
Sampling	Diffusion
Batteries Required	Rechargeable Li-Ion Battery
Batteries Included	Yes
Battery Run Time	11 Hours
