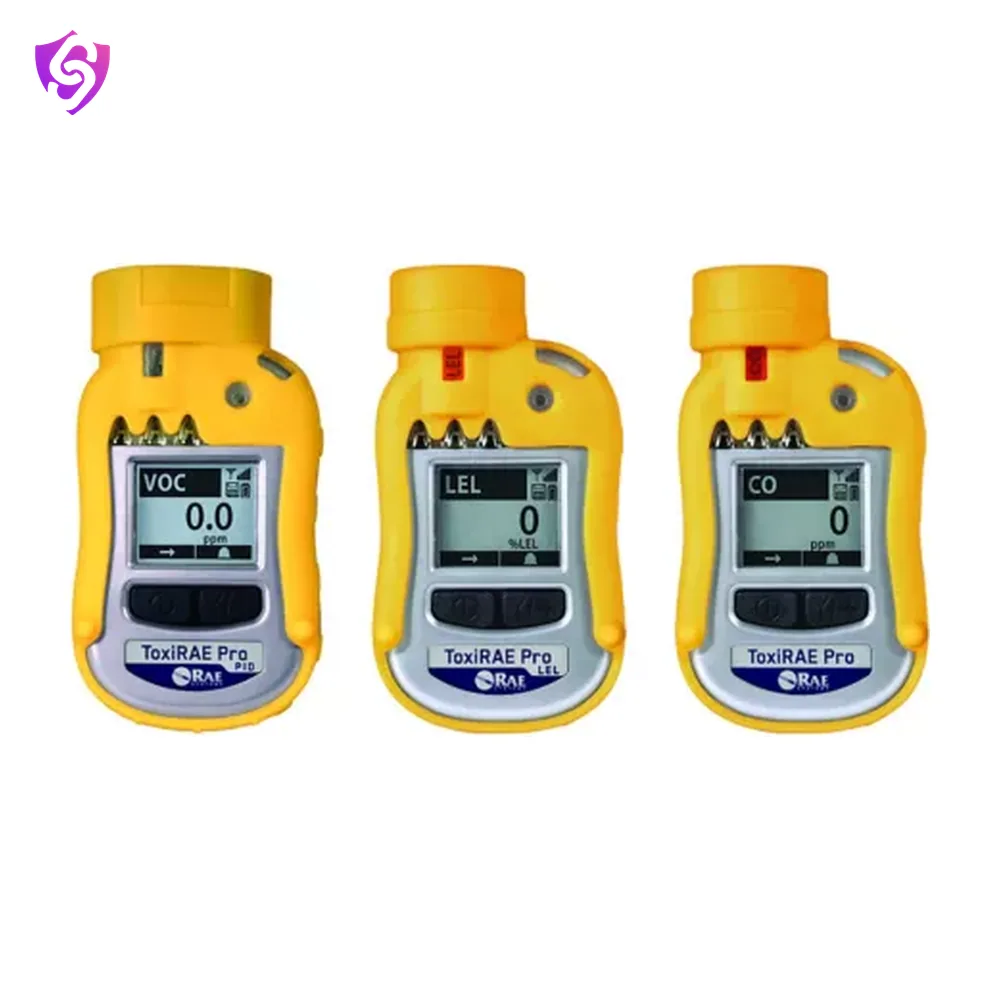

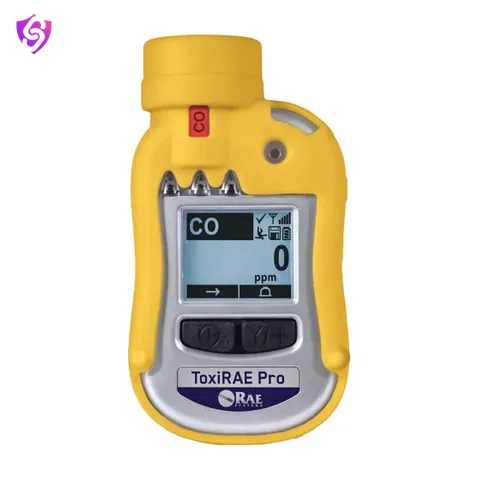

ToxiRAE Pro Family Gas Monitor
Once signed in, you may be able to access additional documents for your account.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | 3 Years / One year on all other sensors, battery, and other consumable parts / Three years on H2S and CO sensors / Two years on O2 sensor / Two years on non-consumable components |
| Weight | 220 gram / 7.76 ounce av |
| Maximum Temperature | 131 degree Fahrenheit / 55 degree Celsius |
| Alarm Included | Yes |
| Alarm Type | Audible (95 dB) / Vibrating / Visual (Flashing Bright Red LEDs) |
| Datalogging Interval | 1 Min / 1 to 3,600 sec |
| Datalogging | Continuous (3 Months) / Three-month capacity |
| Display Type | Graphical LCD Display with White LED Backlighting |
| Display Readout | Real-Time Reading of Gas Concentrations in ppm or mg/m3; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality / STEL, TWA, and peak values |
| Display Included | Yes |
| User Options | Wireless remote alarm notification; audible (95 dB @ 30 cm) |
| Number of Sensors Included | 1 |
| Wireless Technology | MESH Network |
| Includes | AC Adapter (100 to 240 V, 50/60 Hz AC to 12 V DC) / CD with Documentation / Calibration Adapters / Calibration Card, Quality Certificate, and Warranty/Registration Card / Charging and PC Communication Cradle / Multi-Unit Charging Station for up to Five Monitors / PC Communication Cable / Quick Start Guide / ToxiRAE Pro Monitor with Sensor as Specified, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery Installed |
| Weight range | 220 g |
| Instrument Size | 4.6 in H x 2.4 in W x 1.2 in D (118 x 60 x 30 mm) |
| Dimension | H: 118 mm W: 60 mm D: 30 mm |
| Sensor Range | NH3 (0-100ppm), CO (0-500ppm), Cl2 (0-50ppm), ClO2 (0-1ppm), ETO (0-500ppm), HCHO (0-10ppm), H2 (0-1000ppm), HCN (0-50ppm), H2S (0-100ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), HCl (0-15ppm), HF (0-10ppm) |
| Humidity Range | 0 to 95% RH (Non-Condensing) / 0%-95% |
| Extended Range | 0 to 1,000 ppm |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or Manual |
| Sensor Mechanism | Electrochemical Sensors |
| Gas Type | NH3, CO, Cl2, ClO2, ETO, HCHO, H2, HCN, H2S, CH3-SH, NO, NO2, O2, PH3, SO2, HCl, HF |
| Wireless Range | ToxiRAE Pro to Mesh Router, EchoView Host, or Mesh Reader2 - 660 ft (200m) / ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh Modems - 330 ft (100m) |
| Wireless Network | Closed-Loop Network with the EchoView Host / ProRAE Guardian Real-Time Wireless Safety System |
| Wireless Frequency | ISM License-Free Band. IEEE 802.15.4 Sub 1 GHz |
| Wireless Approvals | CE R&TTE / FCC Part 15 |
| Sampling | Diffusion |
| Keypad Type | 2 Buttons for Operation and Programming |
| EMI/RFI | EMC Directive: 2004/108/EC |
Key features
- Easy to maintain and calibrate
- Anytime, anywhere access to real-time instrument reading and alarm status with ProRAE Guardian Software or EchoView Portable Controller
- Five-way alarm notification – man down, and 4 instrument alarms
- Rugged, IP-54 (PID) and IP-65 (EC, LEL, and CO2) protection rating
- Compact and lightweight
- 3 months of continuous data logging
- Field-replaceable battery, filter, sensor, and PID fan
- Fully automated calibration with AutoRAE2
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
