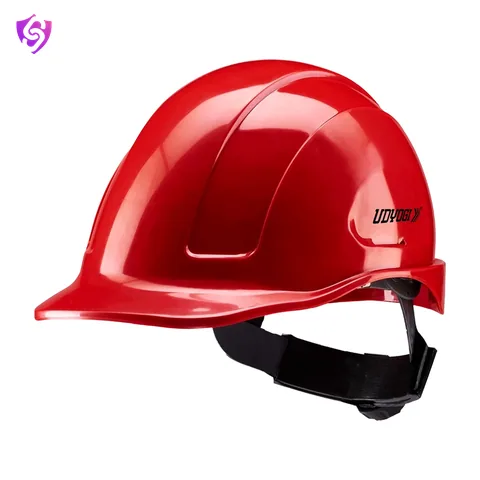

Electra

Name: Udyogi Electra
Brand: Udyogi

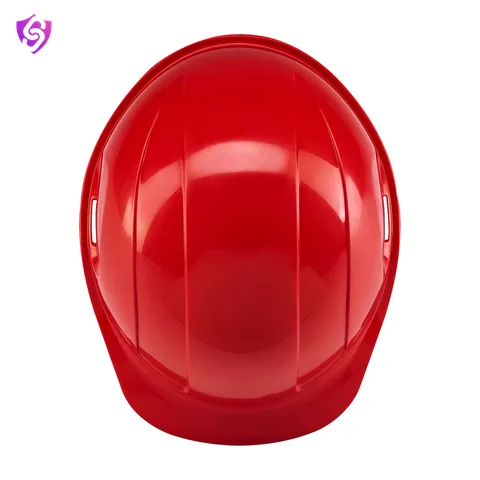

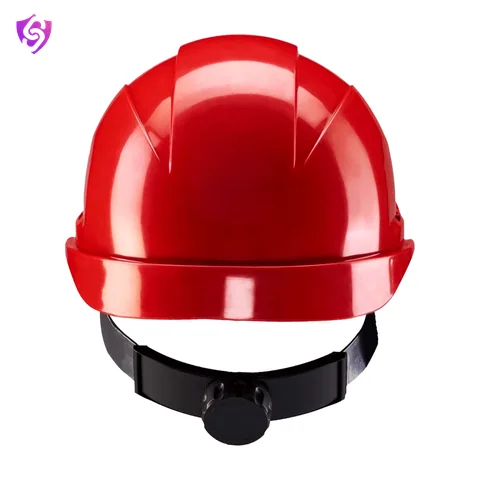

Electrical helmet- conform to ANSI class E, non-ventilated HDPE shell, 8-point textile suspension, Y-shape chin strap & ratchet fit.

ANSI Z89.1

Colour: Red

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Shell	HDPE (High Density Polyethylene)
Ventilation	Non ventilated

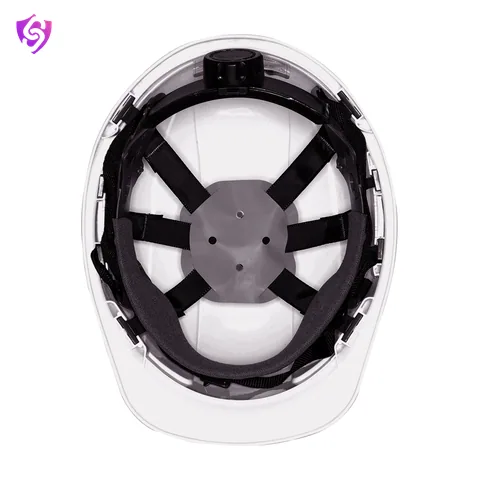

Suspension	8-point textile suspension
Head adjustment	Ratchet fit
Peak size	35 mm
Accessories slot size	30 mm
Internal vertical clearance	49 mm
Wearing height	80 mm
Circumference of Headband	520 – 630 mm
Cradle width	19 mm
Chin strap width	15 mm
Weight	423 grams
Standards	ANSI Z89.1-2014, Type I, Class G,E,C
Colours	Red, White, Orange

Key features

ANSI Z89.1-2014, Type I, Class G,E,C certified helmet (Qualified 20,000 Volt. for 3 min.)
HDPE provides excellent impact resistance, making these helmets effective in protecting against shocks and collisions.
Sweat band maximizes comfort, long time use
8-point textile suspension with ratchet fit adjustment allows for quick and easy adjustments to ensure a secure and comfortable fit.
Designed to accommodate non-conductive accessories such as face shields, visors etc.
Y shape chinstrap, Holds the shell perfectly, universal fit
Excellent rain management system to effectively reduce the flow of water down the neck.

Applications

Power, Transmission & distribution
Oil & Gas
Cement
Cellular Tower & Infrastructure
Transmission Cleaning
Maintenance

Care and replacement

Inspect the shell and harness before each use. Replace the helmet after any significant impact, or if the shell is cracked, dented or discoloured. Replace within the service life marked by the manufacturer. Do not paint or apply solvents to the shell.
