Marine Chain
Mega Link Marine Chain is a high-strength G80 alloy steel chain engineered for marine, shipbuilding, and offshore applications.
- Test certificate available on request
Sizes and ratings

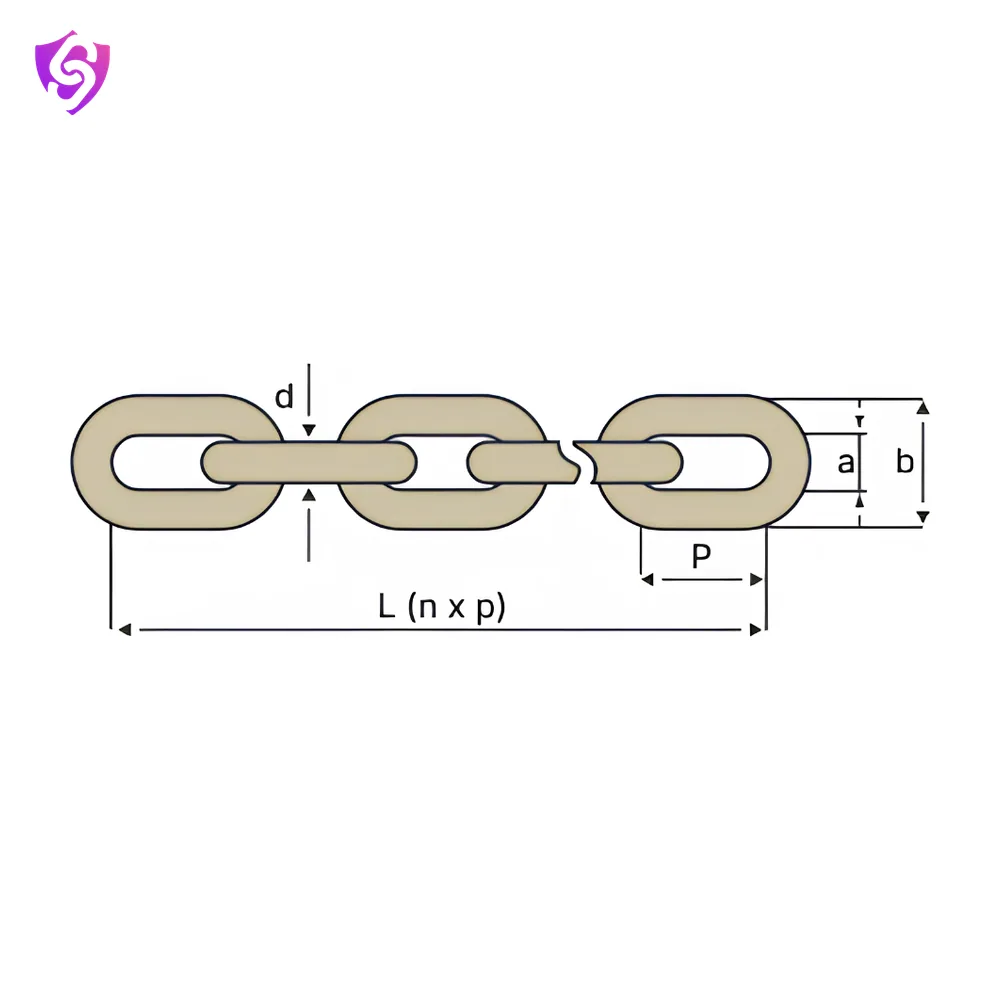

10 sizes| Size d x p (mm) | Width mm (Inside Min. a) | Width mm (Outside Min. b) | Weight (kg/m) |
|---|---|---|---|
| 14 x 50 | 17 | 48 | 4 |
| 14 x 78 | 24 | 55 | 3.6 |
| 16 x 55 | 18.5 | 52 | 5.1 |
| 16 x 55 | 18.5 | 52 | 5.1 |
| 18 x 64 | 21 | 60 | 6.6 |
| 18 x 90 | 30 | 69 | 6 |
| 20 x 80 | 23 | 67 | 7.7 |
| 20 x 90 | 30 | 73 | 7.6 |
| 22 x 86 | 33 | 80 | 9.9 |
| 22 x 86 | 33 | 80 | 9.9 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Marine / Shipbuilding & Offshore |
| Material | High-Quality Alloy Steel |
| Color | Self Color / Galvanized |
| Country Of Origin | Made In India |
| Manufacture Standard | NACM 2010 |
| Quality Grade | G80 |
| Safety Factor | Min 4 |
| Surface Treatment | Self-color, Polishing, Blackened, Painted, Plastic Coating, Hot-dip Galvanised, Electro-Galvanized |
| Product Marking | “MEGA” or as required by client Custom non-standard chains available on request |
| Standards | NACM 2010 |
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
