SLA Manual Chain Hoist
The SLA Manual Chain Hoist (0.5–30 tons) uses a multi-support structure for reasonable force distribution, flexible operation, and a low transmission failure rate.
EN 13157EN 818
- Test certificate available on request
Sizes and ratings
13 sizes| Model | Unit | SAL-0.5 | SAL-1T |
|---|---|---|---|
| Capacity load | (t) | 0.5 | 1 |
| Standard lift | (m) | 2.5 | 2.5 |
| Load chain Number of falls | (mm) | 1 | 1 |
| Load chain specification | (mm) | 2×15 | 6×18 |
| Effort required to lift max load | (N) | 240 | 250 |
| Gross weight | (kg) | 9.8 | 12.7 |
| Net weight | (kg) | 9.3 | 12.2 |
| Packing size | (cm) | 30×19×22 | 30×19×22 |

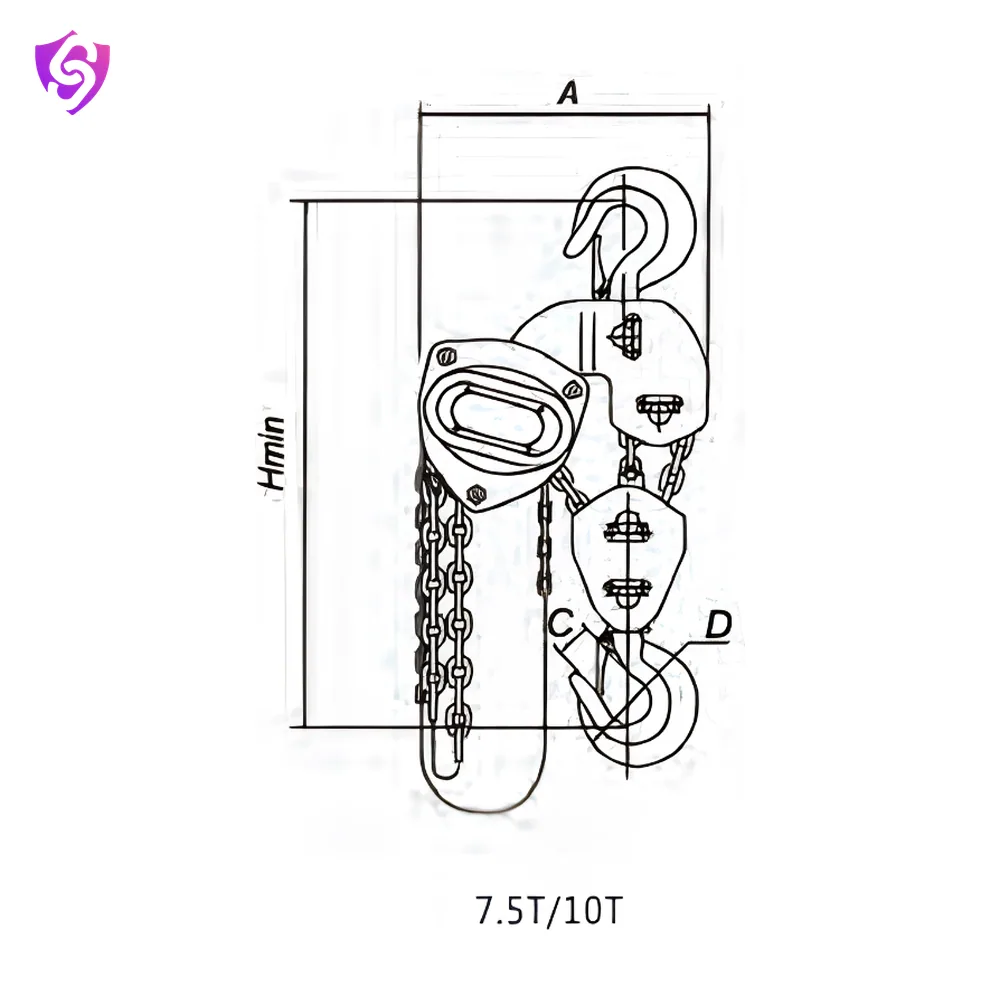

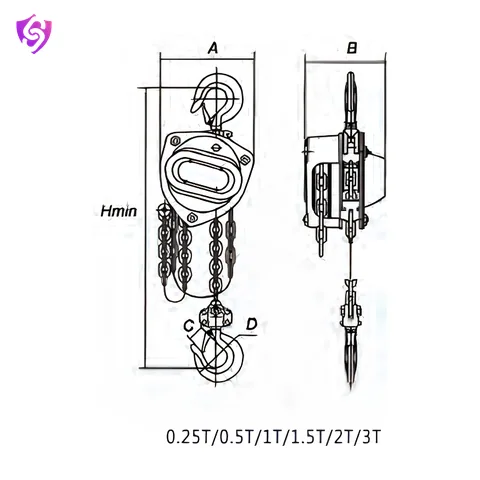

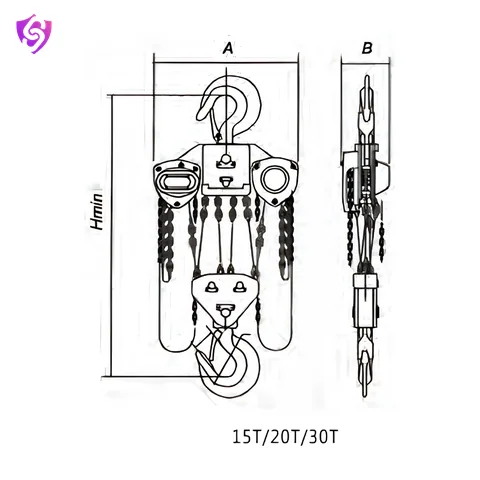

| Dimensions (mm) | A | 148 | 172 |
| Dimensions (mm) | B | 132 | 151 |
| Dimensions (mm) | C | 23 | 27 |
| Dimensions (mm) | D | 35 | 40 |
| Dimensions (mm) | H min | 345 | 367 |
Specifications
| Brand | Mega |
|---|---|
| Model | SLA |
| Usage/Application | Chain hoisting; Grade 80 alloy steel galvanized load chain |
| Country Of Origin | India Standard |
| Capacity range | 0.5 ton to 30 ton; multi-support structure |
| Standards | EN 13157, EN 818-7 |
Key features
- EN13157 (load chain complies with EN 818-7, safety factor 4)
- Double pawls increase safety factor by 2 times
- All nuts in anti-slip nuts; smooth rotation, high efficiency, light hand pull
- Special crimping process for hand chain to prevent tilting/snapping
- Galvanized finish for corrosion resistance
Applications
- Workshops and maintenance bays
- Erection and shutdowns
- Warehouses
- Pump and motor removal
Care and replacement
Before use, check the hook latch, the load chain for wear and twist, and that the brake holds the load. Have blocks examined by a competent person at the interval the factory rules set.
