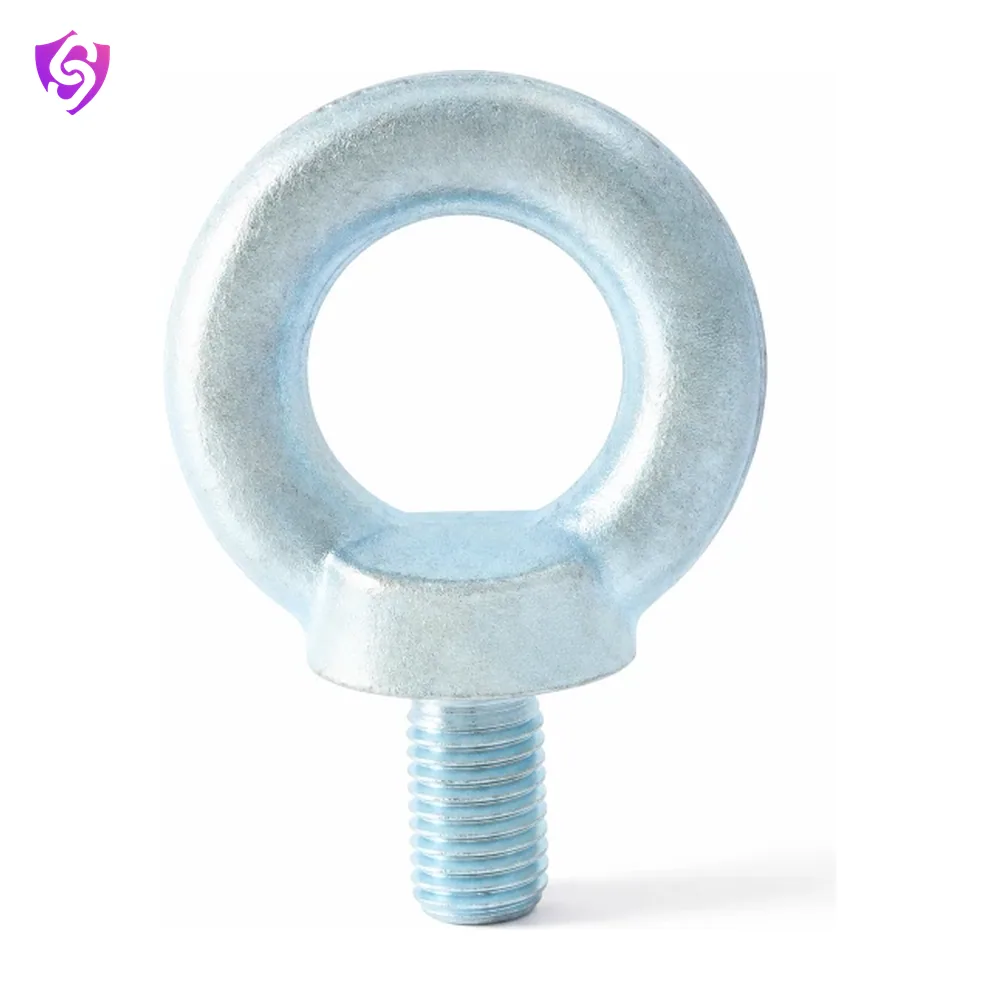

Eye Bolt (DIN580)
100% tested at 2.5 times working load limit
- Test certificate available on request

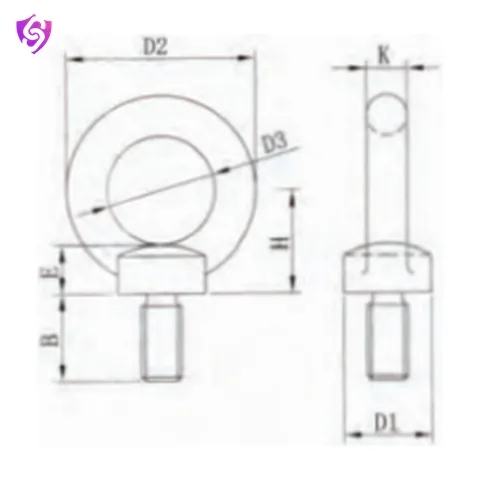

Sizes and ratings
20 sizes| Size (mm) | 90° W.L.L. (T) | 0° W.L.L. (T) | Weight (kg/pc) |
|---|---|---|---|
| M6 | 0.07 | 0.09 | 0.05 |
| M8 | 0.095 | 0.14 | 0.06 |
| M10 | 0.17 | 0.23 | 0.11 |
| M12 | 0.24 | 0.34 | 0.18 |
| M14 | 0.28 | ||
| M16 | 0.50 | 0.70 | 0.28 |
| M18 | 0.45 | ||
| M20 | 0.83 | 1.20 | 0.45 |
| M22 | 0.67 | ||
| M24 | 1.27 | 1.80 | 0.78 |
| M27 | 0.88 | ||
| M30 | 2.60 | 3.60 | 1.66 |
| M33 | 1.66 | ||
| M36 | 3.70 | 5.10 | 2.65 |
| M39 | 4.03 | ||
| M42 | 5.00 | 7.00 | 4.03 |
| M45 | 6.38 | ||
| M48 | 6.10 | 8.60 | 6.38 |
| M52 | 8.80 | ||
| M56 | 8.30 | 11.50 | 8.80 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Lifting & Rigging |
| Country Of Origin | India |
| Standard | G100 |
| Material | Forged super alloy steel |
| 90° W.L.L. range | 0.07–8.3 T |
Key features
- 100% tested at 2.5 times working load limit
- 100% magnaflux crack detection
- Sampling break test for each lot
- Fatigue tested at 1.5 times working load limit for 20000 cycles
- Pinn are 100% eddy-current teat flaw detaction
- Suitable for G100 chain
Applications
- Machinery and moulds
- Dies and fixtures
- Panel and enclosure lifting
- Motors and gearboxes
Care and replacement
Check threads for damage and the eye for wear and deformation before use. Never load an eye bolt sideways across the plane of its eye.
