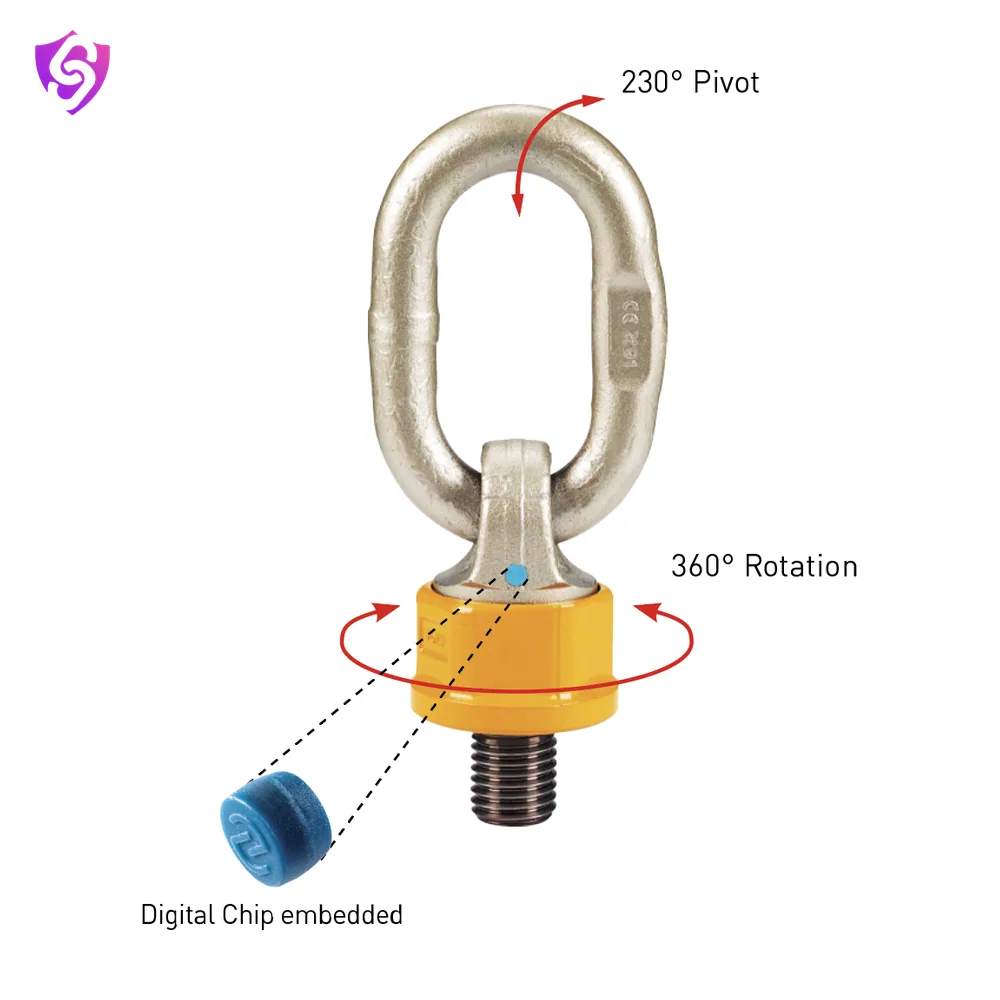

Super Point
Collared DIN 580 eye bolts and swivel lifting points, threaded from M6 upwards, for lifting machinery, moulds and dies.
Model 8-251 and 8-252
- Test certificate available on request
Sizes and ratings
22 sizes| Code | WLL (tonnes) | Thread version (M) | Thread version (E) |
|---|---|---|---|
| 8-251-400-04 | 40.0 | M100 | 150 |
| 8-251-400-025 | 40.0 | M90 | 135 |
| 8-251-400-01 | 40.0 | M80 | 120 |
| 8-251-400-005 | 40.0 | M72 | 108 |
| 8-251-350-01 | 35.0 | M80 | 120 |
| 8-251-350-005 | 35.0 | M72 | 108 |
| 8-251-280-01 | 28.0 | M64 | 96 |
| 8-251-200-01 | 20.0 | M64 | 96 |
| 8-251-007-02 | 0.7 | M12 | 18 |
| 8-251-004-01 | 0.3 | M8 | 12 |
| 8-251-170-06 | 18.0 | M56 | 84 |
| 8-251-170-045 | 17.0 | M52 | 78 |
| 8-251-170-04 | 17.0 | M48 | 72 |
| 8-251-125-05 | 12.5 | M48 | 72 |
| 8-251-125-03 | 12.5 | M42 | 63 |
| 8-251-100-02 | 10.0 | M36 | 54 |
| 8-251-080-02 | 8.0 | M30 | 45 |
| 8-251-067-02 | 6.7 | M30 | 45 |
| 8-251-040-02 | 4.0 | M24 | 36 |
| 8-251-025-01 | 2.5 | M20 | 30 |
| 8-251-014-04 | 1.7 | M20 | 30 |
| 8-251-014-02 | 1.4 | M16 | 24 |
Specifications
| Brand | Yoke |
|---|---|
| Model | 8-251 and 8-252 |
| WLL range | 0.3–40 tonnes |
Applications
- Machinery and moulds
- Dies and fixtures
- Panel and enclosure lifting
- Motors and gearboxes
Care and replacement
Check threads for damage and the eye for wear and deformation before use. Never load an eye bolt sideways across the plane of its eye.
