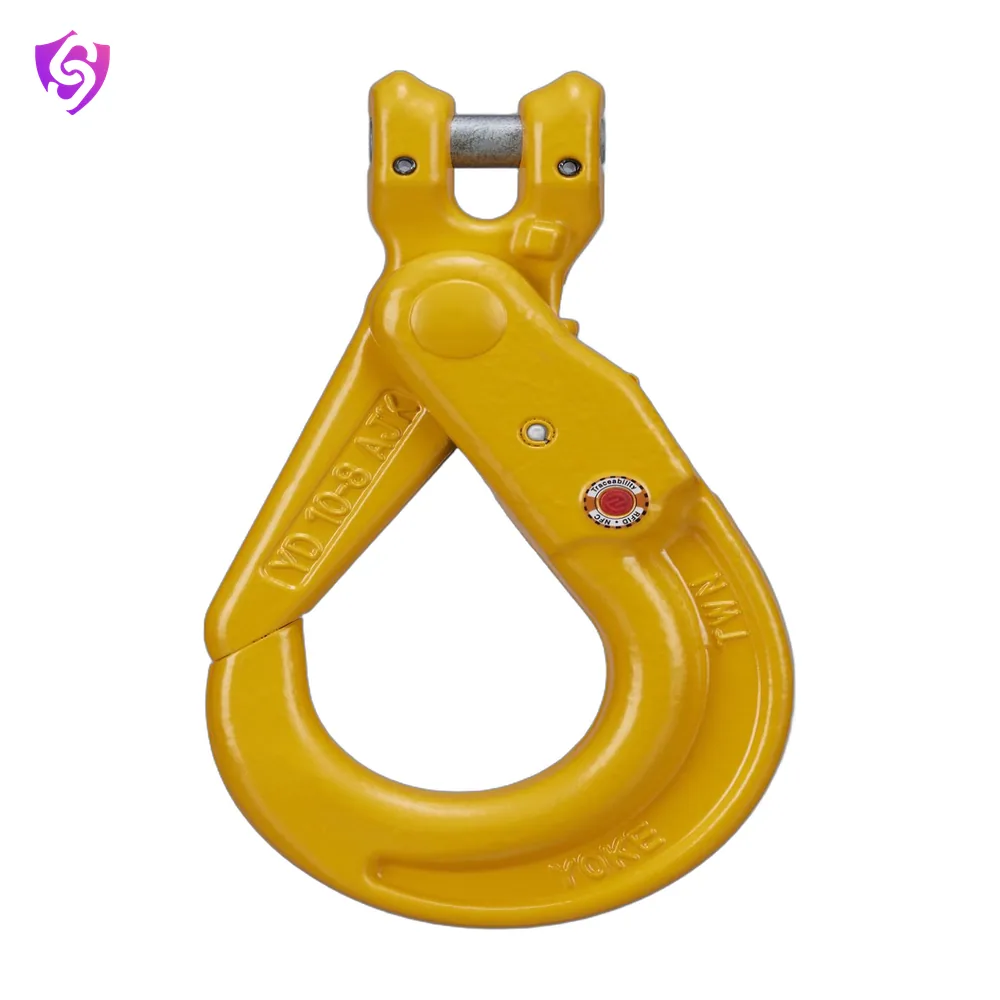

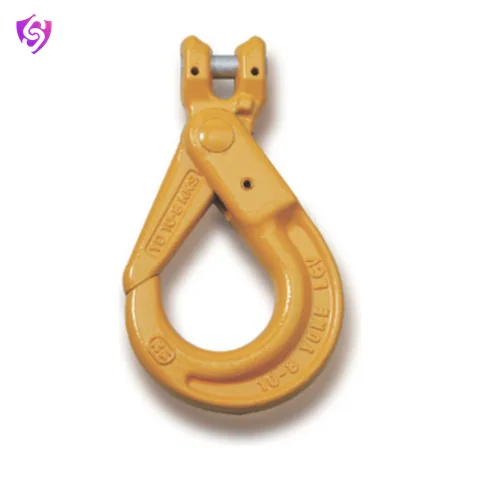

Clevis Self Locking Hook.
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model 8-026
- Test certificate available on request
Sizes and ratings
7 sizes| Code | WLL (tonnes) | For Grade 80 Chain (mm) | Weight (kg) |
|---|---|---|---|
| 8-026-06 | 1.12 | 6 | 0.5 |
| 8-026-07 | 2.00 | 7, 8 | 0.8 |
| 8-026-10 | 3.15 | 10 | 1.4 |
| 8-026-13 | 5.30 | 13 | 2.9 |
| 8-026-16 | 8.00 | 16 | 5.6 |
| 8-026-20 | 12.50 | 18, 20 | 9.0 |
| 8-026-22 | 15.00 | 22 | 13.0 |
Specifications
| Brand | Yoke |
|---|---|
| Model | 8-026 |
| Grade | 80 |
| WLL range | 1.12–15 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
