Yoke

Eye Sling Hook

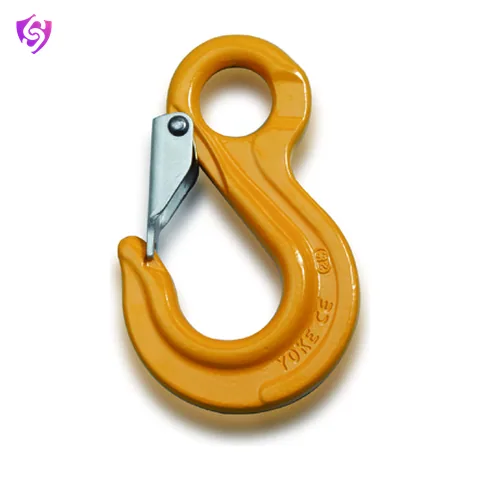

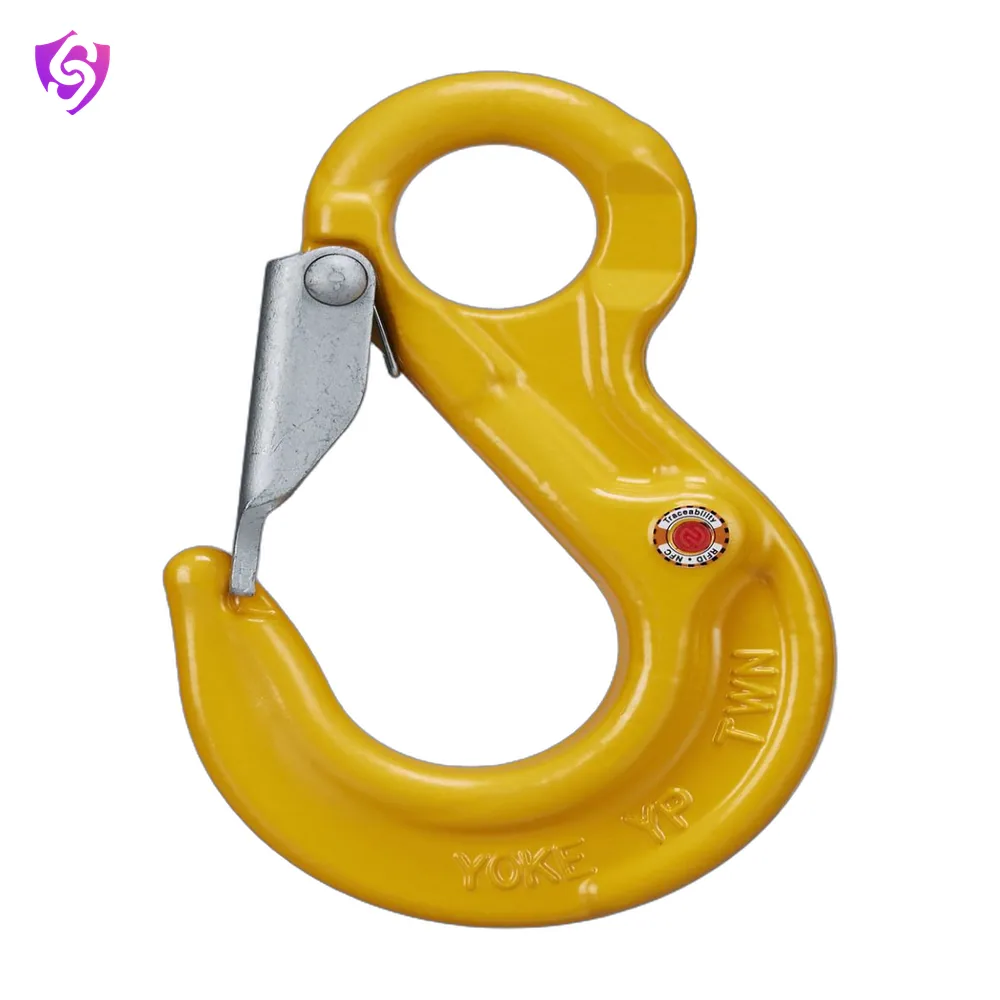

Name: Yoke Eye Sling Hook
Brand: Yoke

Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.

Model 8-044S

WLL (tonnes) · For Grade 80 Chain (mm) · Weight (kg)

DatasheetSizes, ratings, specifications

Test certificate available on request

Sizes and ratings

9 sizes

Code	WLL (tonnes)	For Grade 80 Chain (mm)	Weight (kg)
8-044/S-06	1.12	6	0.3
8-044/S-07	2.00	7, 8	0.5
8-044/S-10	3.15	10	1.0
8-044/S-13	5.30	13	1.7
8-044/S-16	8.00	16	3.2
8-044/S-20	12.50	18, 20	5.5
8-044/S-22	15.00	22	9.0
8-044/S-26	21.20	26	13.5
8-044/S-32	31.50	32	20.0

Specifications

Brand	Yoke
Model	8-044S
Grade	80
WLL range	1.12–31.5 tonnes

Applications

Chain sling assemblies
Wire rope sling terminations
Workshop and gantry cranes
Steel and fabrication shops

Care and replacement

Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
