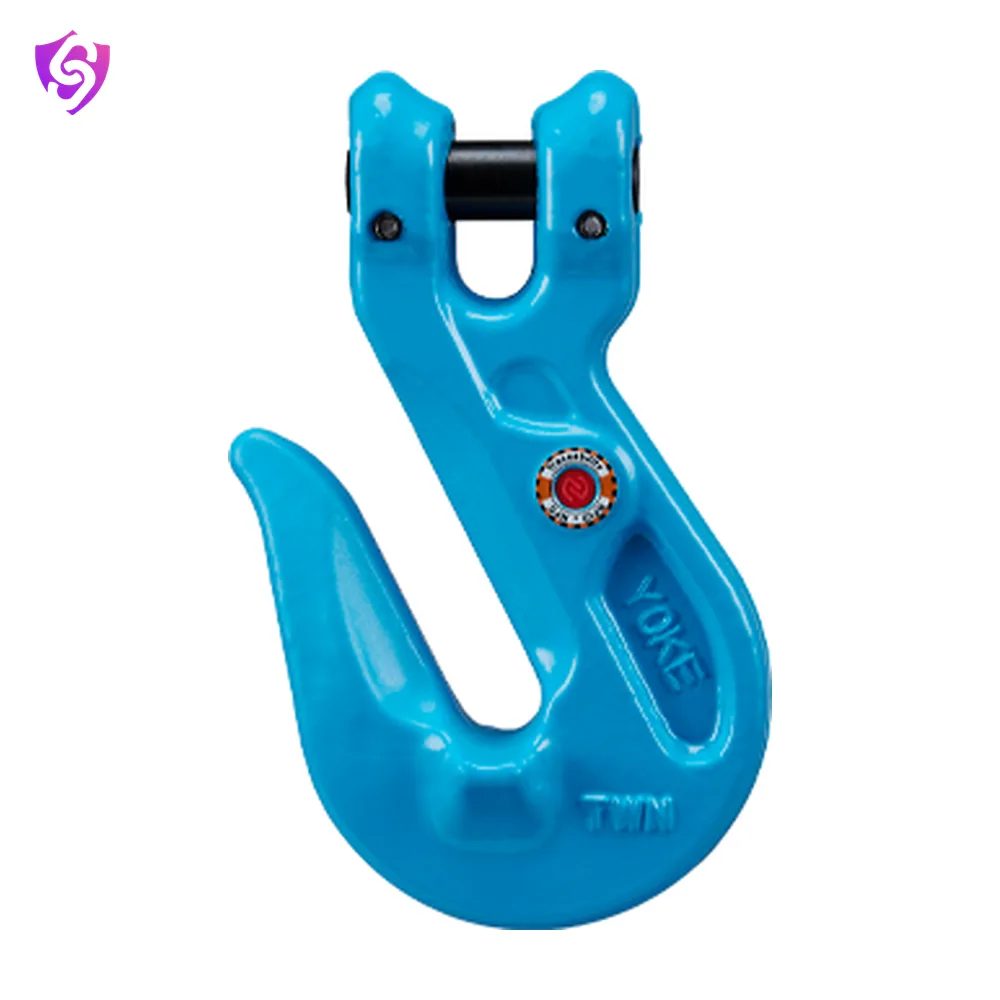

G-100 Clevis Grab Hook
Grade 80 eye, clevis, swivel and self-locking hooks for chain and wire rope slings, with replacement safety latches.
Model X-042
- Test certificate available on request

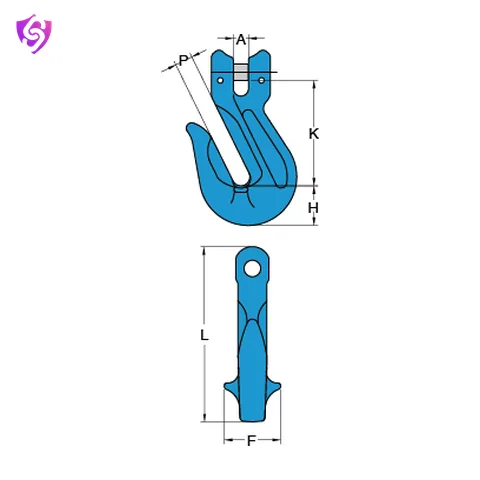

Sizes and ratings
7 sizes| Code | WLL (tonnes) | For Grade 100 Chain (mm) | Weight (kg) |
|---|---|---|---|
| X-042-06 | 1.4 | 6 | 0.2 |
| X-042-07 | 2.5 | 7, 8 | 0.4 |
| X-042-10 | 4.0 | 10 | 0.8 |
| X-042-13 | 6.7 | 13 | 1.6 |
| X-042-16 | 10.0 | 16 | 2.7 |
| X-042-20 | 16.0 | 20 | 4.8 |
| X-042-22 | 19.0 | 22 | 6.4 |
Specifications
| Brand | Yoke |
|---|---|
| Model | X-042 |
| Grade | 100 |
| WLL range | 1.4–19 tonnes |
Applications
- Chain sling assemblies
- Wire rope sling terminations
- Workshop and gantry cranes
- Steel and fabrication shops
Care and replacement
Withdraw a hook that is opened at the throat, twisted, cracked or worn at the saddle, or whose latch no longer closes. Never heat, weld or bend a hook back into shape.
