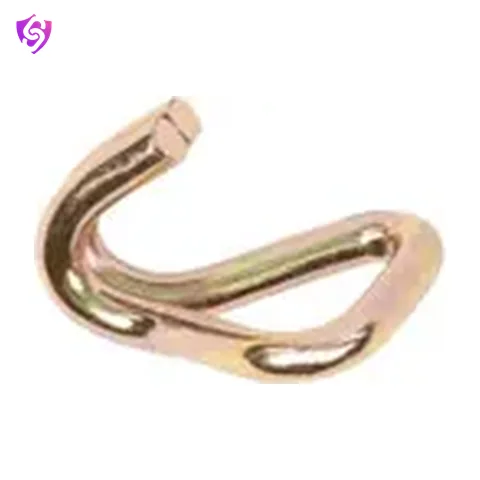

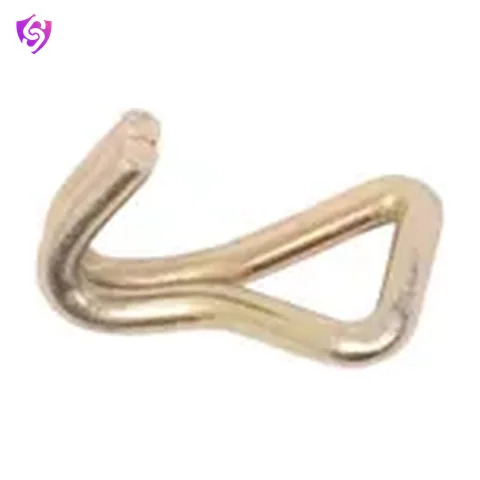

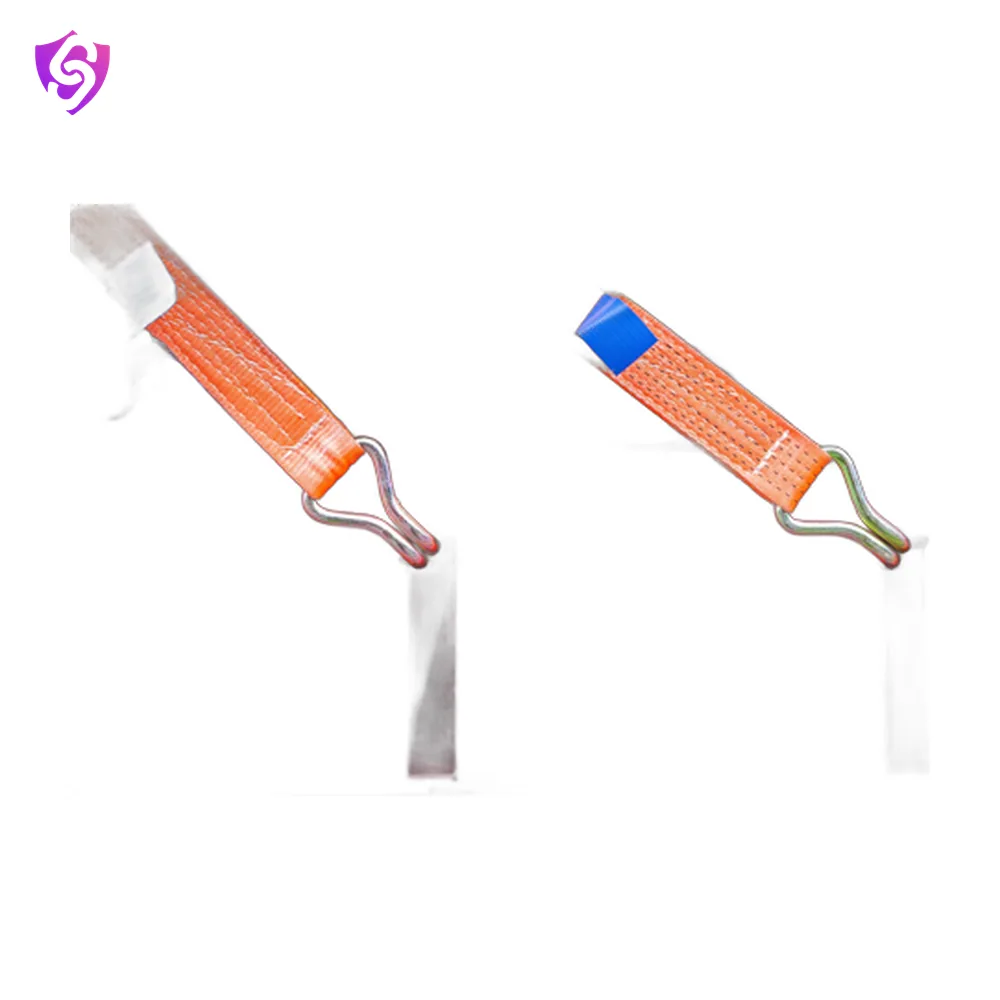

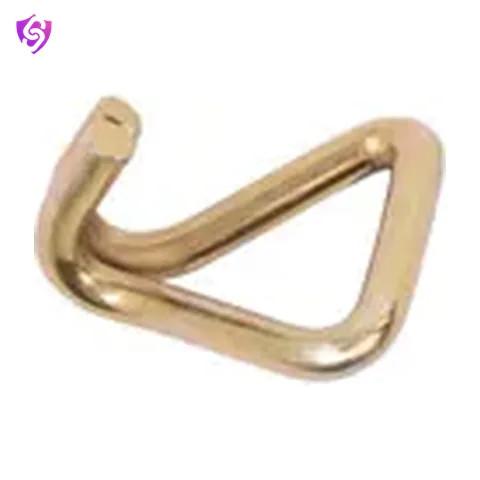

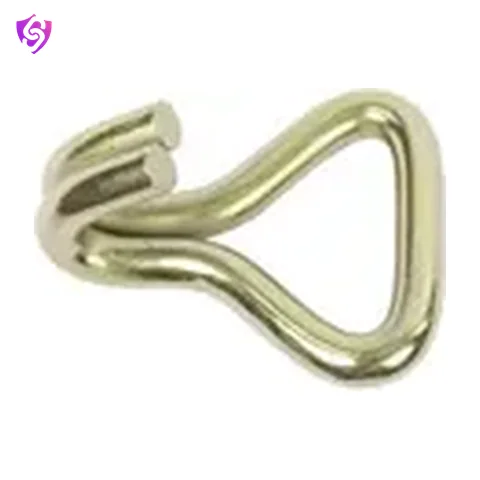

Double J Hook
End Fittings are the main method of anchoring straps to the truck so you can tighten them enough to hold the load in place.
- Test certificate available on request
Sizes and ratings
17 sizes| Size | Rating |
|---|---|
| 1.5”(35mm) | End Fitting Type Wire hook/ Double Jhook · Dia 8mm · Breaking Strength 2000kg |
| 1.5”(35mm) | End Fitting Type Wire hook/ Double Jhook · Dia 9.5mm · Breaking Strength 3000kg |
| 2”(50mm) | End Fitting Type Wire hook/ Double Jhook · Dia 9.5mm · Breaking Strength 3000kg |
| 2”(50mm) | End Fitting Type Wire hook/ Double Jhook · Dia 11mm · Breaking Strength 4000kg |
| 2”(50mm) | End Fitting Type Wire hook/ Double Jhook · Dia 12mm · Breaking Strength 5000kg |

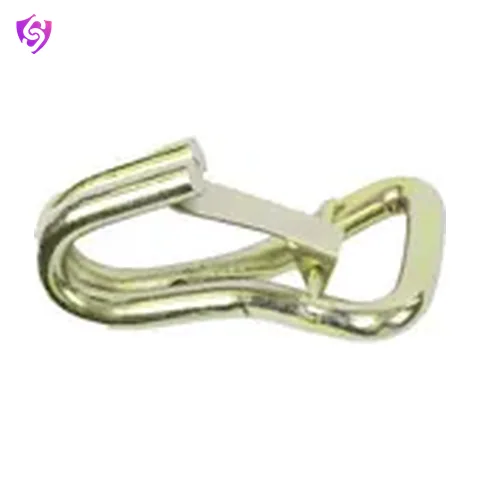

| 2”(50mm) | End Fitting Type Wire hook/ Double Jhook with Latch · Dia 12mm · Breaking Strength 5000kg |
| 2”(50mm) | End Fitting Type Wire hook/ Double Jhook with tube · Dia 12mm · Breaking Strength 5000kg |
| 2”(50mm) | End Fitting Type Wire Hook/ Welded Double Jhook · Dia 12mm · Breaking Strength 5000kg |
| 3”(75mm) | End Fitting Type Wire hook/ Double Jhook · Dia 16mm · Breaking Strength 10000kg |
| 1.5”(35mm) | End Fitting Type Claw Hook · Dia 9mm · Breaking Strength 3000kg |
| 2”(50mm) | End Fitting Type Claw Hook · Dia 12mm · Breaking Strength 5000kg |
| 3”(75mm) | End Fitting Type Claw Hook · Dia 17mm · Breaking Strength 10000kg |
| 2”(50mm) | End Fitting Type Flat Hook · Dia 4mm · Breaking Strength 2500kg |
| 2”(50mm) | End Fitting Type Flat Hook · Dia 4.5mm · Breaking Strength 4500kg |
| 2”(50mm) | End Fitting Type Flat Hook · Dia 5mm · Breaking Strength 7000kg |
| 3”(75mm) | End Fitting Type Flat Hook · Dia 5mm · Breaking Strength 10000kg |
| 1”(25mm) | End Fitting Type SHook · Dia 9mm · Breaking Strength 800kg |
Specifications
| Brand | Global |
|---|
Applications
- Truck and trailer loads
- Container stuffing
- General site rope work
- Rope haulage
Care and replacement
Withdraw a lashing with a cut or worn belt, a damaged ratchet or a missing label. Keep rope out of sunlight and chemicals when it is not in use.
