Hand Pallet Truck
The DLT Hand Pallet Truck is a manually operated pallet truck designed for efficient transport and lifting of palletized loads.
- Test certificate available on request

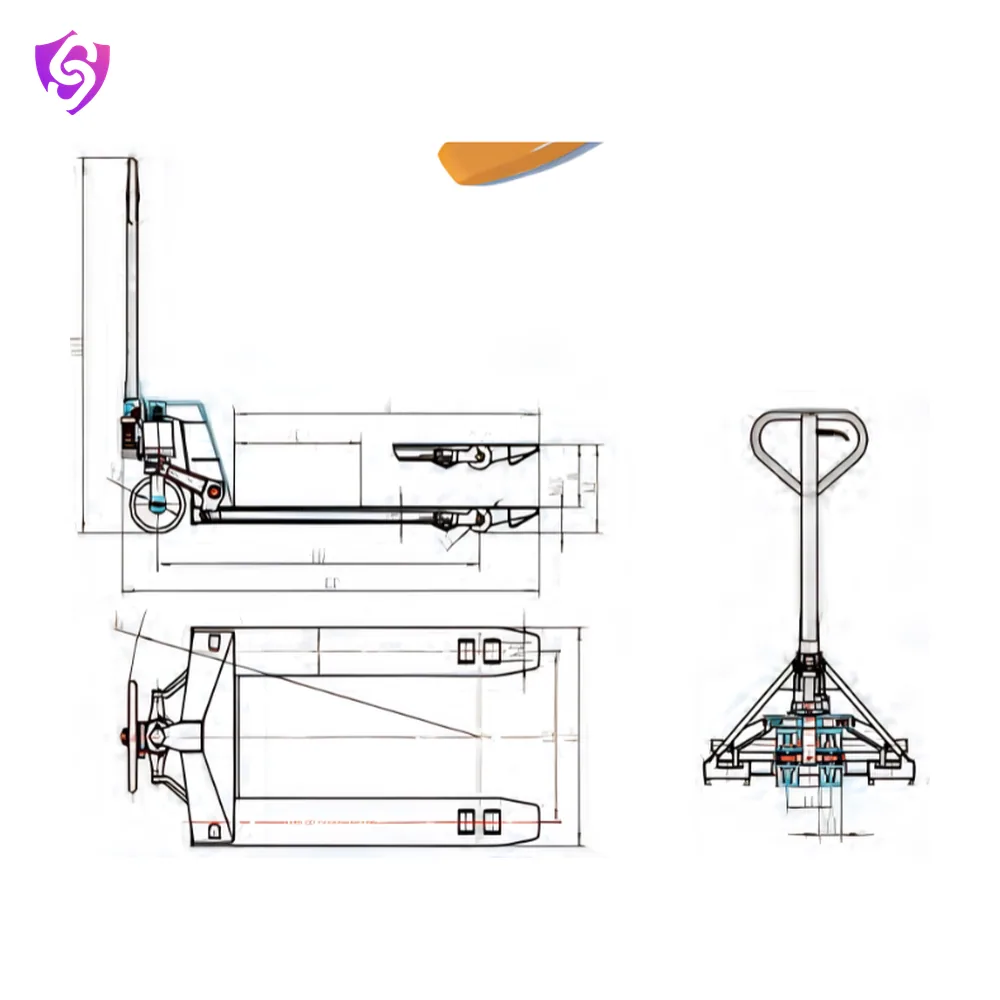

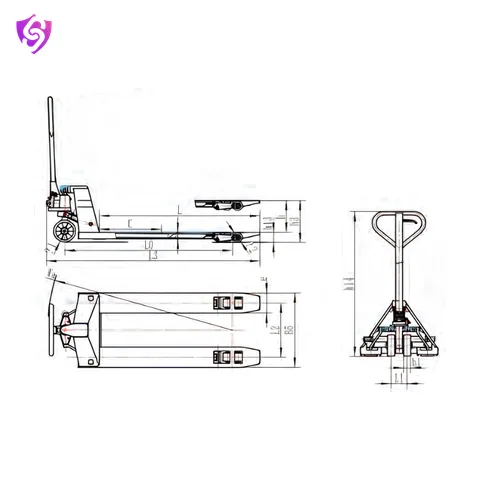

Sizes and ratings
19 sizes| Manufacturer | Unit | Heami Machinery |
|---|---|---|
| Model | DLT | |
| Drive | Manual | |
| Load capacity (Q) | kg | 2000/2500 |
| Load centre distance (C) | mm | 478 / 536 |
| Wheelbase (L0) | mm | 1202 / 1252 |
| Net weight | kg | 50–60 |
| Steer wheel | mm | Ø160×50 |
| Load wheel | mm | Ø70×60 |
| Wheels, number steer/load | 2/4 | |
| Tread width, steer (L1) | mm | 128 |
| Tread width, load (L2) | mm | 400 / 535 |
| Lift (h) | mm | 110 |
| Height of tiller in drive position (h14) | mm | 1072 |
| Height raised (h3) | mm | 185 |
| Height lowered (h13) | mm | 75 |
| Overall length (L3) | mm | 1529 / 1579 |
| Width across forks (b5) | mm | 550 / 685 |
| Fork dimensions (s/e/l) | mm | 47/150/1150 / 47/150/1200 |
| Turning radius (Wa) | mm | 1322 / 1372 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Manual transport and lifting of palletized loads in warehouses |
| Material | Steel |
| Color | Yellow/Orange |
| Country Of Origin | India Standard |
| Drive | Manual |
| Load capacity (Q) | 2000/2500 kg |
| Load centre distance (C) | 478 / 536 mm |
| Wheelbase (L0) | 1202 / 1252 mm |
| Net weight | 50–60 kg |
| Steer wheel | Ø160×50 mm |
| Load wheel | Ø70×60 mm |
| Wheels, number steer/load | 2/4 |
| Tread width, steer (L1) | 128 mm |
| Tread width, load (L2) | 400 / 535 mm |
| Lift (h) | 110 mm |
| Height of tiller in drive position (h14) | 1072 mm |
| Height raised (h3) | 185 mm |
| Height lowered (h13) | 75 mm |
| Overall length (L3) | 1529 / 1579 mm |
| Width across forks (b5) | 550 / 685 mm |
| Fork dimensions (s/e/l) | 47/150/1150 / 47/150/1200 mm |
| Turning radius (Wa) | 1322 / 1372 mm |
Key features
- Nylon wheel with Welding pump option
- PU wheel with Casting pump option
Applications
- Warehouses and godowns
- Factories and stores
- Construction sites
- Loading bays
Care and replacement
Check wheels, forks and the hydraulic unit for leaks before use, and never ride on a pallet truck or stand under a raised load.
