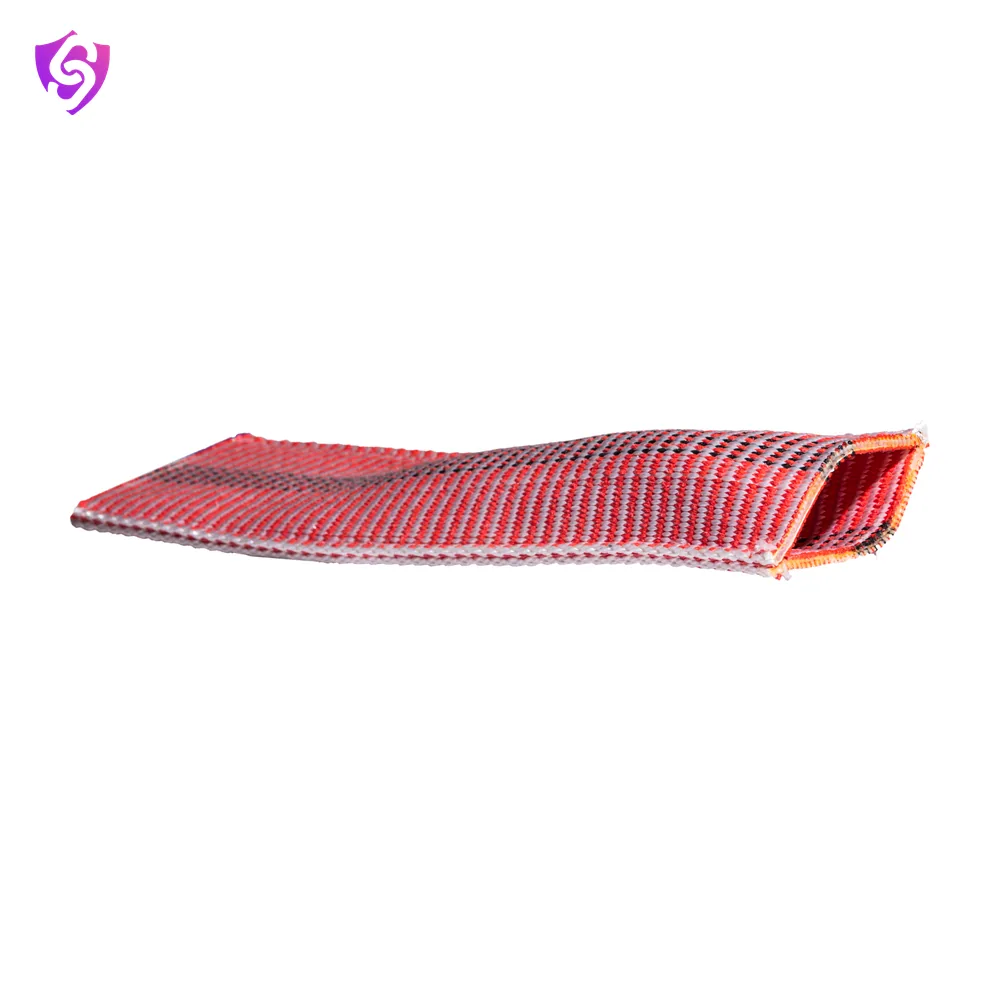

Cut & Abrasion Resistant Sleeves
GarSafe anti-cut and anti-abrasion sling sleeves are engineered to protect lifting slings against cuts, tears, and abrasions -significantly extending sling service life and reducing operational downtime.
Model GarSafe® Cut, Abrasion & Anti-Cut Sleeves
- Test certificate available on request
Sizes and ratings
11 sizes| Size | Rating |
|---|---|
| 1 MT | Width 25 mm · Minimum Breaking Strength 5000 kgs · Colour Code Violet |
| 2 MT | Width 50 mm · Minimum Breaking Strength 10000 kgs · Colour Code Green |
| 3 MT | Width 75 mm · Minimum Breaking Strength 15000 kgs · Colour Code Yellow |
| 4 MT | Width 100 mm · Minimum Breaking Strength 20000 kgs · Colour Code Grey |
| 5 MT | Width 125 mm · Minimum Breaking Strength 25000 kgs · Colour Code Red |
| 6 MT | Width 150 mm · Minimum Breaking Strength 30000 kgs · Colour Code Brown |
| 8 MT | Width 200 mm · Minimum Breaking Strength 40000 kgs · Colour Code Blue |
| 10 MT | Width 250 mm · Minimum Breaking Strength 50000 kgs · Colour Code Orange |
| 12 MT | Width 300 mm · Minimum Breaking Strength 60000 kgs · Colour Code Orange |
| 16 MT | Width 200 mm · Minimum Breaking Strength 80000 kgs · Colour Code Blue |
| 20 MT | Width 250 mm · Minimum Breaking Strength 100000 kgs · Colour Code Orange |
Specifications
| Brand | Garware |
|---|---|
| Model | GarSafe® Cut, Abrasion & Anti-Cut Sleeves |
| SWL | 1 to 20 MT |
| Width | 25 to 300 mm |
| Minimum Breaking Strength | 5000 to 100000 kgs |
Key features
- Armored against toughest edges
- Engineered for Toughest environments
- High Endurance and Long life
- Ease of Use
Applications

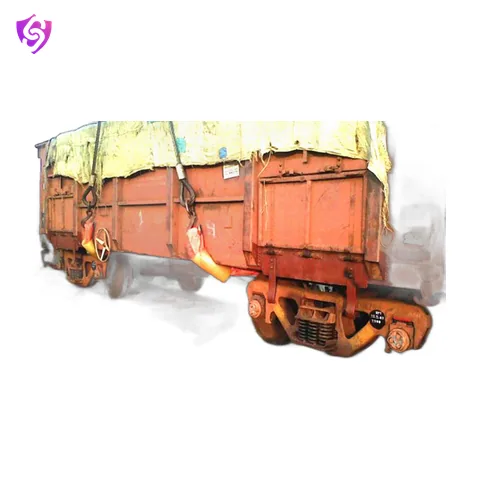

- Train Lifting

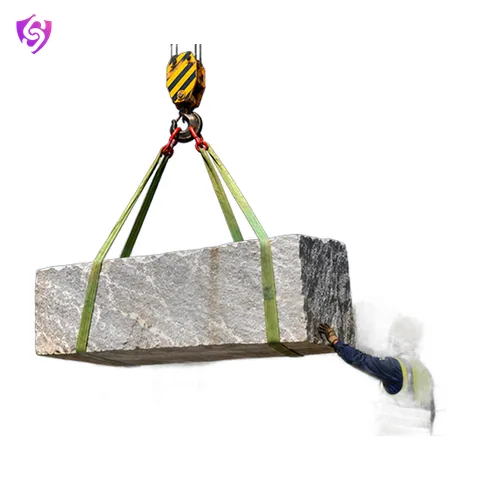

- Stone Lifting
- Gurdle Lifting

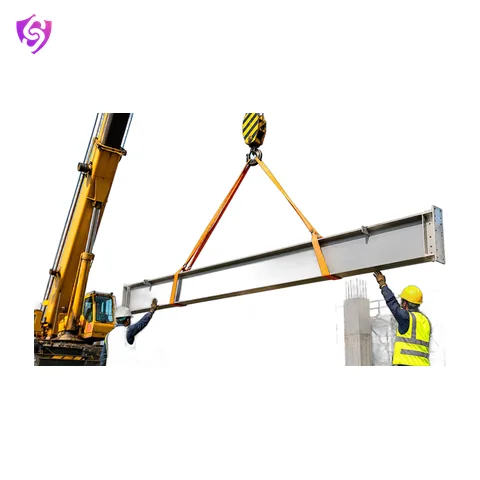

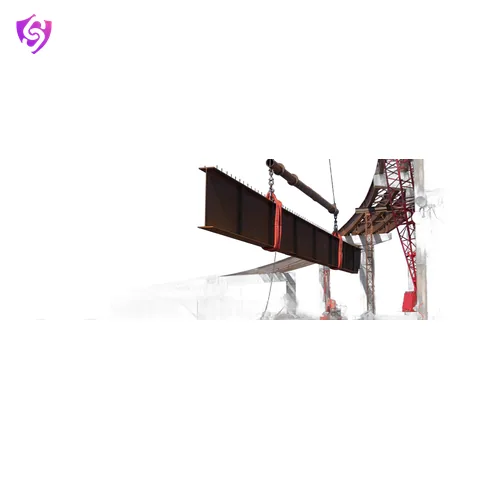

- Girder Lifting
Care and replacement
Withdraw a sling that is cut, torn, burnt, chemically stained or whose label is missing. Keep slings away from heat and sharp corners, and dry them out of direct sunlight.
