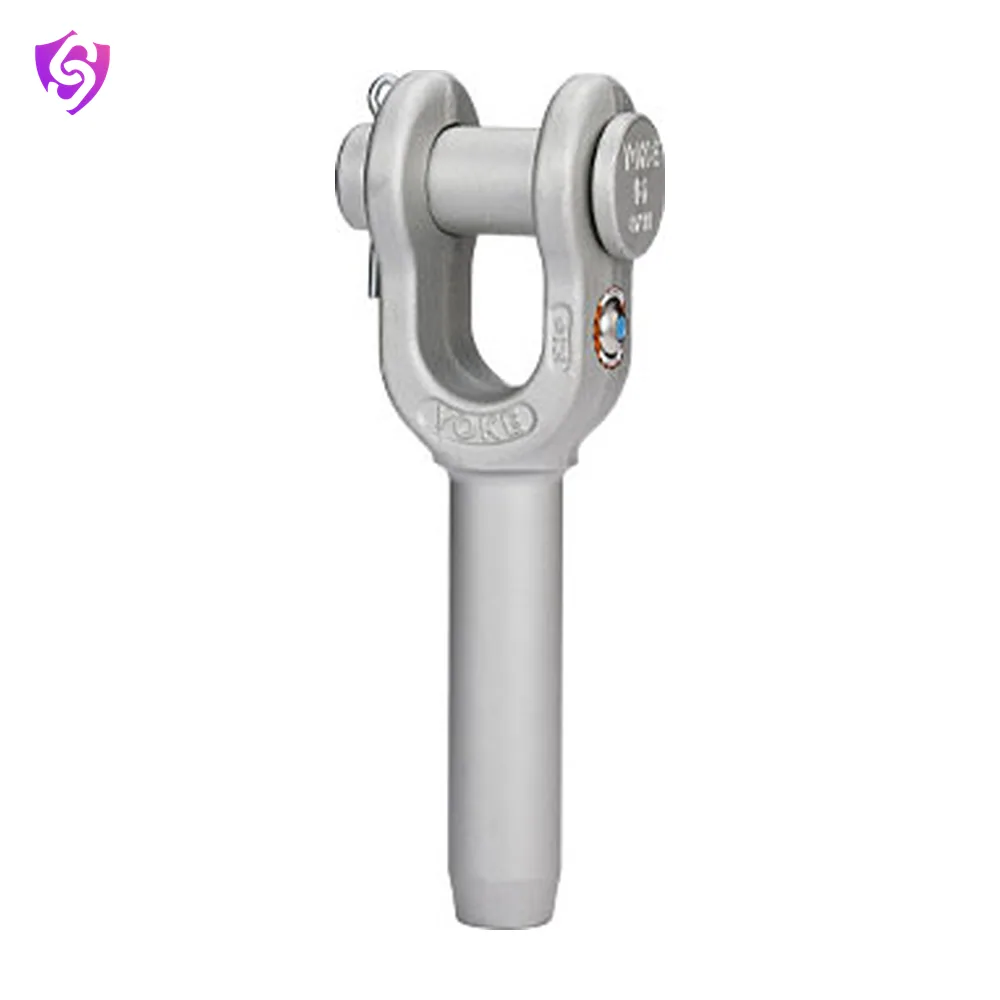

Forged Open Swage Socket with Round Pin
Wire rope clamps, thimbles and turnbuckles in galvanised, forged and stainless steel, and the press that crimps the ferrules.
Model 8-731
- Test certificate available on request
Sizes and ratings
16 sizes| Code | Weight (kg) | Item No. (Galvanized) | Rope Size (mm) |
|---|---|---|---|
| 8-731-06 | 0.3 | 8-731-06G | 6 - 7 |
| 8-731-08 | 0.7 | 8-731-08G | 8 |
| 8-731-10 | 0.6 | 8-731-10G | 9 - 10 |
| 8-731-11 | 1.2 | 8-731-11G | 11 - 12 |
| 8-731-13 | 1.1 | 8-731-13G | 13 |
| 8-731-14 | 2.1 | 8-731-14G | 14 - 15 |
| 8-731-16 | 2.1 | 8-731-16G | 16 |
| 8-731-19 | 3.8 | 8-731-19G | 18 - 20 |
| 8-731-22 | 5.4 | 8-731-22G | 22 - 23 |
| 8-731-26 | 8.1 | 8-731-26G | 24 - 25 |
| 8-731-28 | 12.5 | 8-731-28G | 28 |
| 8-731-32 | 17.5 | 8-731-32G | 32 |
| 8-731-36 | 20.9 | 8-731-36G | 35 - 36 |
| 8-731-38 | 30 | 8-731-38G | 38 |
| 8-731-45 | 40.3 | 8-731-45G | 44 - 45 |
| 8-731-50 | 66.4 | 8-731-50G | 48 - 51 |
Specifications
| Brand | Yoke |
|---|---|
| Model | 8-731 |
Applications
- Wire rope terminations
- Guy lines and fencing
- Marine and outdoor rigging
- Tensioning
Care and replacement
Check clamp nuts for tightness and turnbuckle threads for wear and locking before each use. Replace any fitting that is cracked, bent or corroded.
