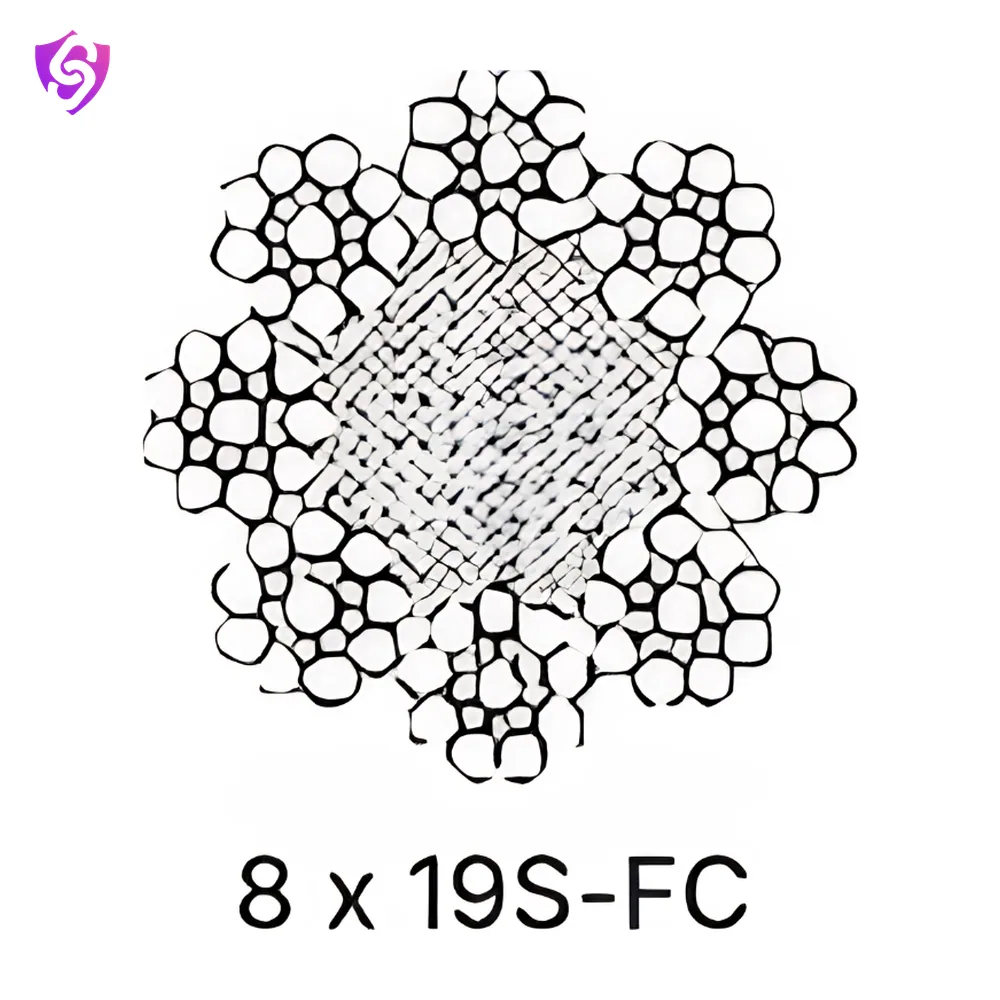

8 x 19S-FC Wire Ropes
Bright, galvanised, stainless and PVC coated steel wire rope, in 6 × 19 and 6 × 36 constructions with a steel or fibre core.
EN 12385
- Test certificate available on request
Sizes and ratings
22 sizes| Nominal Rope Diameter (mm) | Approx Weight FC (kg/100m) | MBL 1570 FC (kN) | MBL 1770 FC (kN) |
|---|---|---|---|
| 8 | 22.8 | 29.4 | 33.2 |
| 9 | 28.9 | 37.3 | 42.0 |
| 10 | 35.7 | 46.0 | 51.9 |
| 11 | 43.2 | 55.7 | 62.8 |
| 12 | 51.4 | 66.2 | 74.7 |
| 13 | 60.3 | 77.7 | 87.6 |
| 14 | 70.0 | 90.2 | 102 |
| 16 | 91.4 | 118 | 133 |
| 18 | 116 | 149 | 168 |
| 20 | 143 | 184 | 207 |
| 22 | 173 | 223 | 251 |
| 24 | 206 | 265 | 299 |
| 26 | 241 | 311 | 351 |
| 28 | 280 | 361 | 407 |
| 32 | 366 | 471 | 531 |
| 36 | 463 | 596 | 672 |
| 40 | 571 | 736 | 830 |
| 44 | 691 | 891 | 1000 |
| 48 | 823 | 1060 | 1190 |
| 52 | 965 | 1240 | 1400 |
| 56 | 1120 | 1440 | 1630 |
| 60 | 1290 | 1660 | 1870 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Mobile cranes, offshore winches, construction hoisting – 8-strand design for better drum spooling |
| Color | Bright (Ungalvanised) / Galvanised |
| Material | High Carbon Steel (Carbon 0.4–1%, Manganese 0.3–1%) |
| Country Of Origin | India |
| Standard | IS / EN 12385 |
Applications
- Cranes and hoists
- Winches and haulage
- Guying and structural work
- Sling making
Care and replacement
Keep rope lubricated and off the ground. Inspect for broken wires, reduced diameter, corrosion, kinks and bird-caging, and replace it when its maker's discard criteria are reached.
