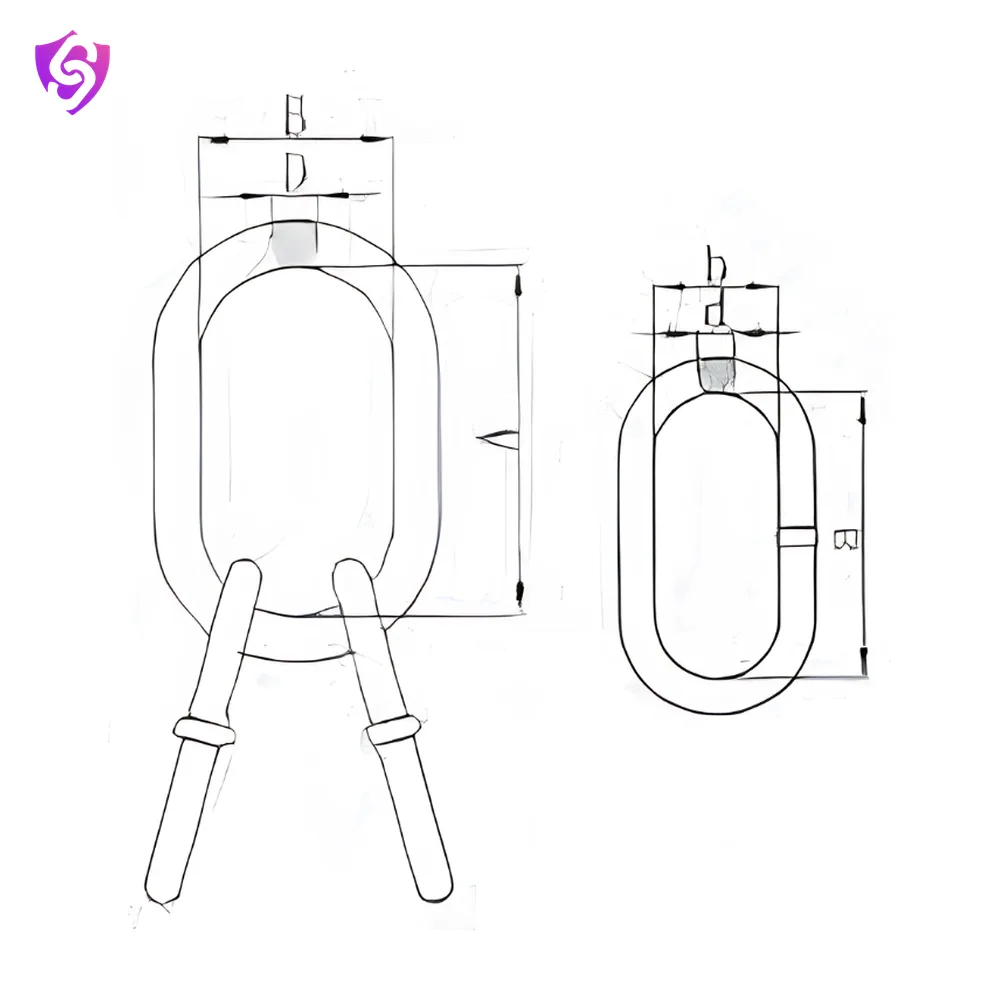

A345 Us Type Master Link Assembly
100% tested at 2.5 times working load limit
- Test certificate available on request
Sizes and ratings
9 sizes| Size (mm) | Weight (kg) | American Chain | 3 or 4 Chain Working Load (T) (The Angle 0-45°) |
|---|---|---|---|
| 3/4 | 1.70 | 1/4 5/16 | 3.15 4.25 |
| 7/8 | 2.18 | 5/16 3/8 | 4.25 6.7 |
| 1 | 3.31 | 3/8 | 6.7 |
| 1¼ | 6.08 | 1/2 5/8 | 11.2 17 |
| 1½ | 12.28 | 5/8 3/4 | 17 23.6 |
| 1¾ | 18.63 | 3/4 7/8 | 23.6 31.5 |
| 2 | 27.14 | 7/8 | 31.5 |
| 2½ | 64.40 | 1 | 45 |
| 2¾ | 89.00 | 1¼ | 67 |
Specifications
| Brand | Mega |
|---|---|
| Model | A345 |
| Usage/Application | Lifting & Rigging |
| Material | forged super alloy steel |
| Country Of Origin | India |
| For chain sling | Minimum ultimate load is 4 times the working loss limit |
| For steel rope sling | Minimum ultimate load is 5 times the working load limit |
| 3 or 4 Chain Working Load (T) (The Angle 0-45°) range | 6.7–67 |
Key features
- 100% tested at 2.5 times working load limit
- 100% magsaflux crack detection
- Sampling break test for each lot
- There will be pressing flat only on request
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
