A346 Master Link Assembly With Flat
100% tested at 2.5 times working load limit
EN 1677EN 818EN 1492
- Test certificate available on request

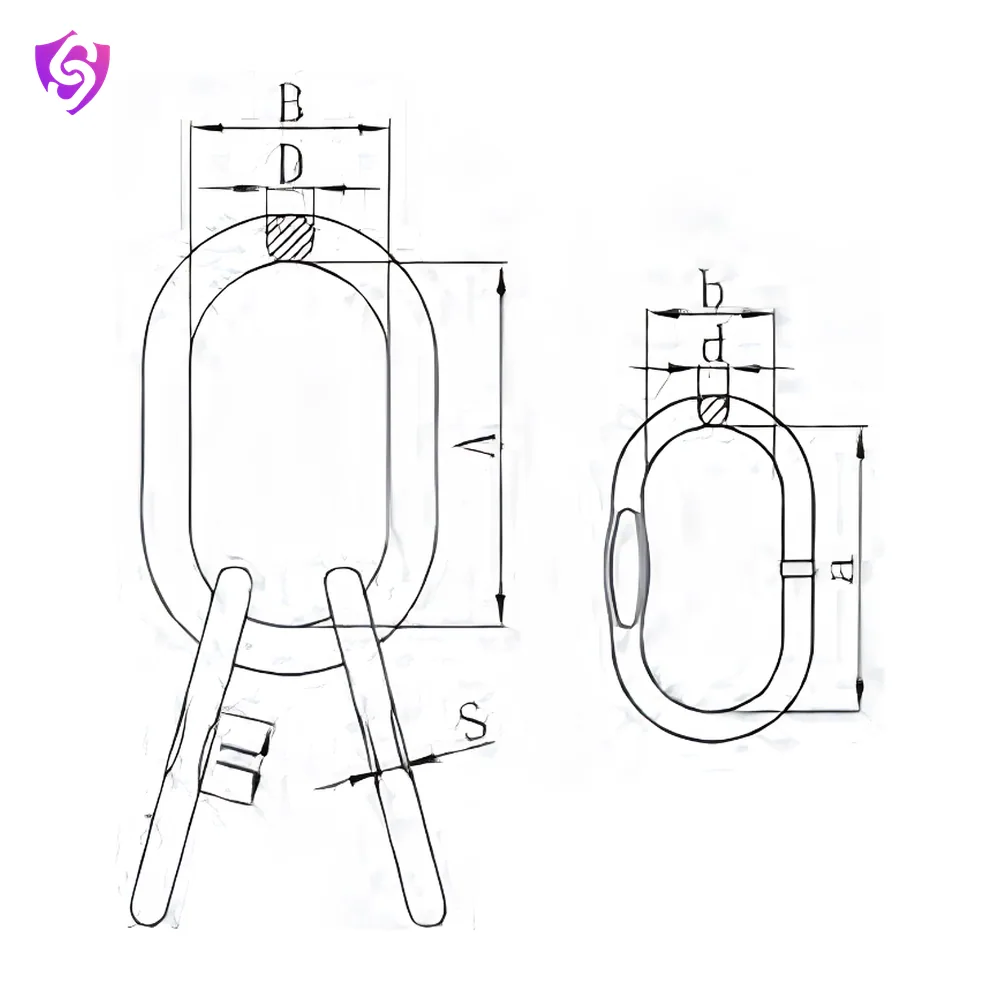

Sizes and ratings
12 sizes| Size (mm) | Weight (kg) | WLL (T) | S × H |
|---|---|---|---|
| 6 | 1.18 | 2.36 | 7+0.3×25 |
| 7 | 1.24 | 3.15 | 7+0.5×25 |
| 8 | 2.20 | 4.25 | 8+0.5×28 |
| 10 | 3.40 | 6.7 | 11±0.5×35 |
| 13 | 6.10 | 11.2 | 13±0.5×43 |
| 16 | 9.50 | 17.0 | 17±0.5×55 |
| 18 | 20.01 | 21.2 | 18±0.5×59 |
| 20 | 23.51 | 26.5 | 20±0.5×64 |
| 22 | 25.49 | 31.5 | |
| 26 | 35.20 | 45 | |
| 28 | 47.00 | 50 | |
| 32 | 66.46 | 63 |
Specifications
| Brand | Mega |
|---|---|
| Model | A346 |
| Usage/Application | Lifting & Rigging |
| Country Of Origin | India |
| Material | forged super alloy steel |
| Standard | EN1677-4 |
| WLL range | 2.36–63 T |
Key features
- 100% tested at 2.5 times working load limit
- 100% magsaflux crack detection
- Sampling break test for each kit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Suitable for 3 or 4 legs GBD chain sling as per EN818-4 G80 Components
- Ultimate load is 4 times the working load limit
- For use with wire rope sling, refer to DIN3088 standard
- For use with synthetic sling, refer to EN1492-1 standard
- There will be pressing flat only on request
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
