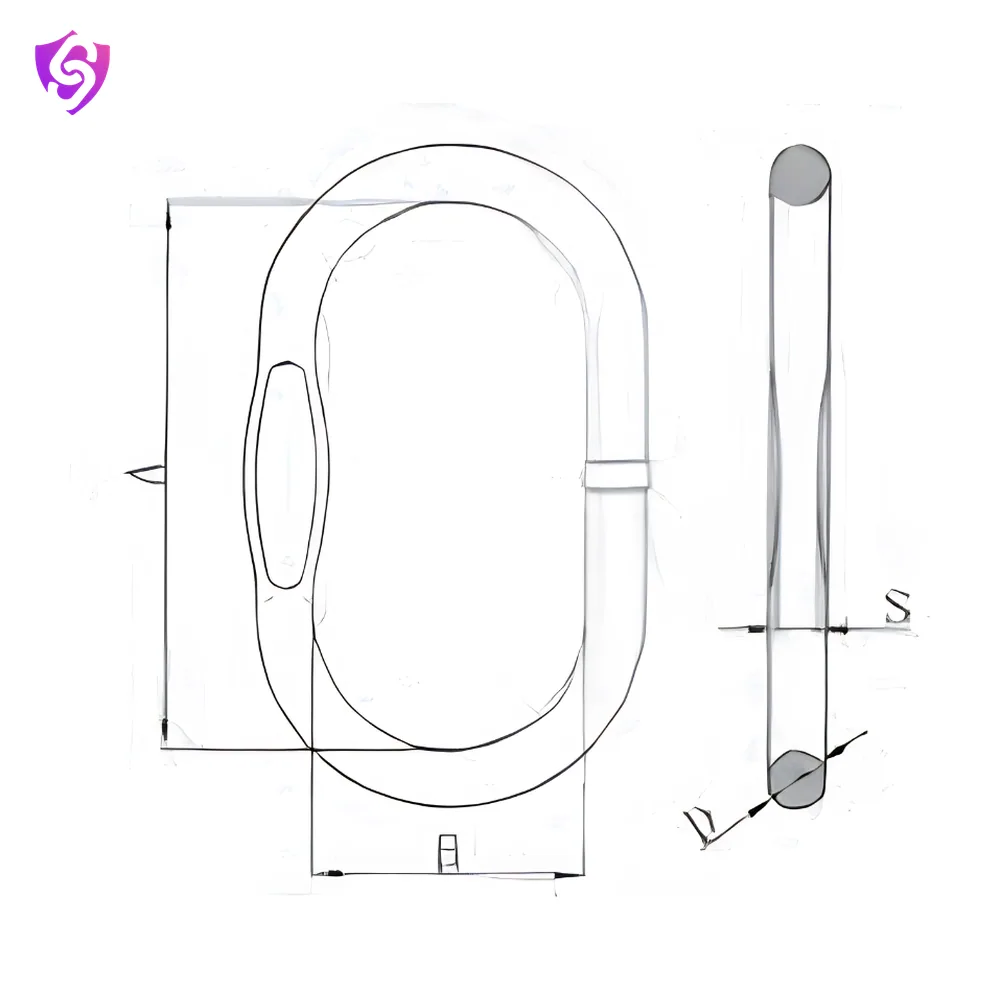

G80 Master Link Assembly
100% tested at 2.5 times working load limit
- Test certificate available on request
Sizes and ratings
20 sizes| Size (mm) | W.L.L. (LBS) | Weight (kg) |
|---|---|---|
| 13B6 | 2.4 | 0.35 |
| 16B6 | 3.8 | 0.58 |
| 16B7 | 2.8 | 0.86 |
| 18B6 | 4 | 0.89 |
| 18B7 | 4 | 1.00 |
| 20B7 | 5.8 | 1.25 |
| 22B6 | 7.6 | 1.53 |
| 22B7 | 6.4 | 1.83 |
| 22B8 | 5.8 | 2.29 |
| 25B6 | 10 | 2.20 |
| 25B7 | 8 | 3.00 |
| 28B7 | 10.5 | 3.80 |
| 32B6 | 15.2 | 5.05 |
| 38B6 | 25.1 | 7.29 |
| 38B7 | 17 | 10.77 |
| 45B6 | 34 | 12.77 |
| 45B7 | 24.5 | 17.05 |
| 50B6 | 40 | 17.64 |
| 60B6 | 58 | 28.82 |
| 70B6 | 84 | 45.44 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Lifting & Rigging |
| Material | Forged super alloy steel |
| W.L.L. range | 2.4–84 LBS |
Key features
- 100% tested at 2.5 times working load limit
- 100% magnaflux crack detection
- Sampling break test for each lot
- Fatigue tested at 1.5 times working load limit for 20,000 cycles
- Ultimate load is 4 times the working load limit
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
