Ordinary Mild Steel Link Chain

Name: Mega Ordinary Mild Steel Link Chain
Brand: Mega

Mega Link Ordinary Mild Steel Link Chain is a versatile general-purpose chain available in short, medium, and long link configurations to suit a wide range of commercial and industrial applications.

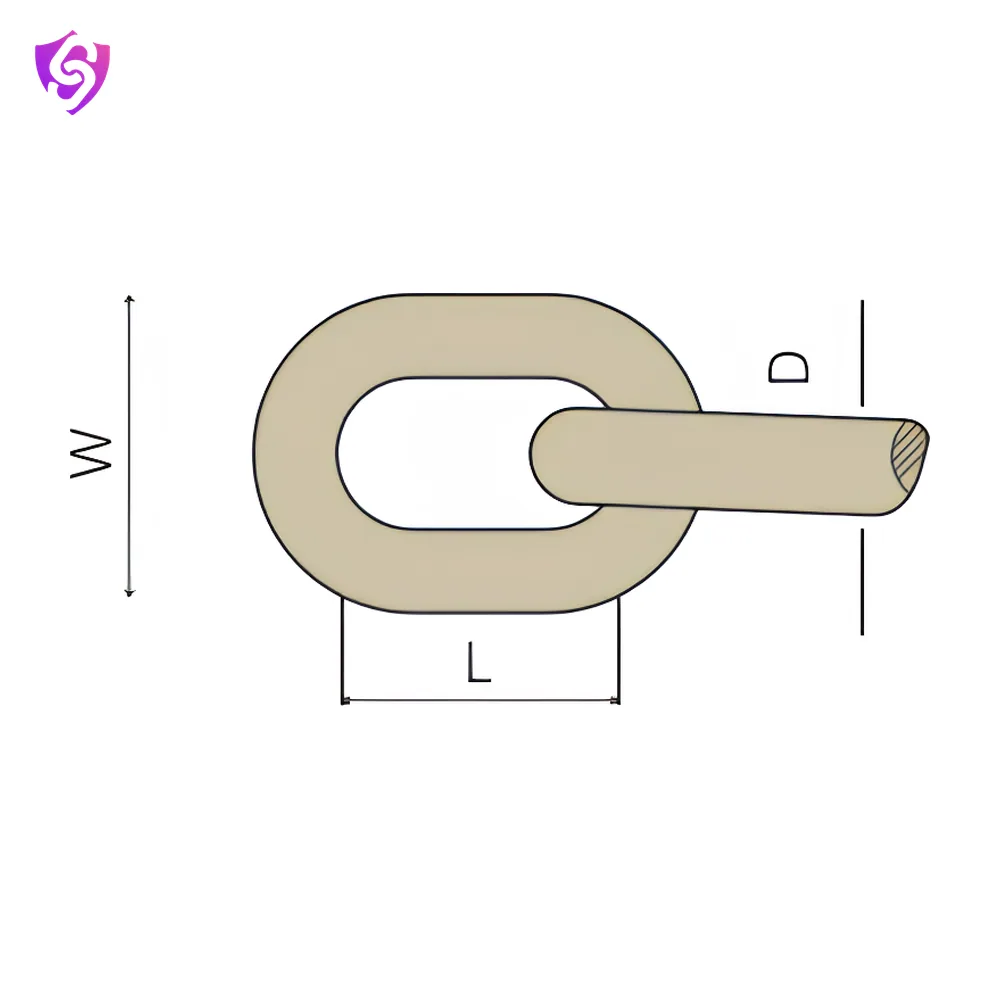

Link Specification (D / mm) · Link Specification (L / mm) · Link Specification (W / mm)

DatasheetSizes, ratings, specifications Mega brochure

Test certificate available on request

Sizes and ratings

13 sizes

Link Specification (D / in)	Link Specification (D / mm)	Link Specification (L / mm)	Link Specification (W / mm)
1/8	3.20	16	12
5/32	4.00	18.5	14.5
3/16	4.70	19	17
7/32	5.50	20	19
1/4	6.35	22	21
5/16	7.94	26.5	27.2
3/8	9.50	30	32
7/16	11.11	34	36
1/2	12.70	39	43
5/8	15.80	45	53
3/4	19.00	55	63
7/8	22.20	64	74
1	25.40	73	84

Specifications

Brand	Mega
Usage/Application	General Purpose / Commercial Material – Mild Steel
Country Of Origin	Made In India
Material	Mild steel
Surface Treatment	Self-Color (B.F.), Hot-dip Galvanised (H.D.G.)
Available Types	Short Link, Medium Link, Long Link
Available Sizes	1/8″ – 1″ (3.20 mm – 25.40 mm)

Key features

Custom non-standard chains available on request

Applications

Chain sling assembly
Steel plants and foundries
Heavy engineering
Ports and yards

Care and replacement

Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
