Transport Chain – General
Mega Link Transport Chain is a high-strength alloy steel chain designed for secure cargo lashing and load restraint in road, rail, and sea transport, available in two classes with consistent elongation and breaking load performance across all size ranges.
- Test certificate available on request
Sizes and ratings

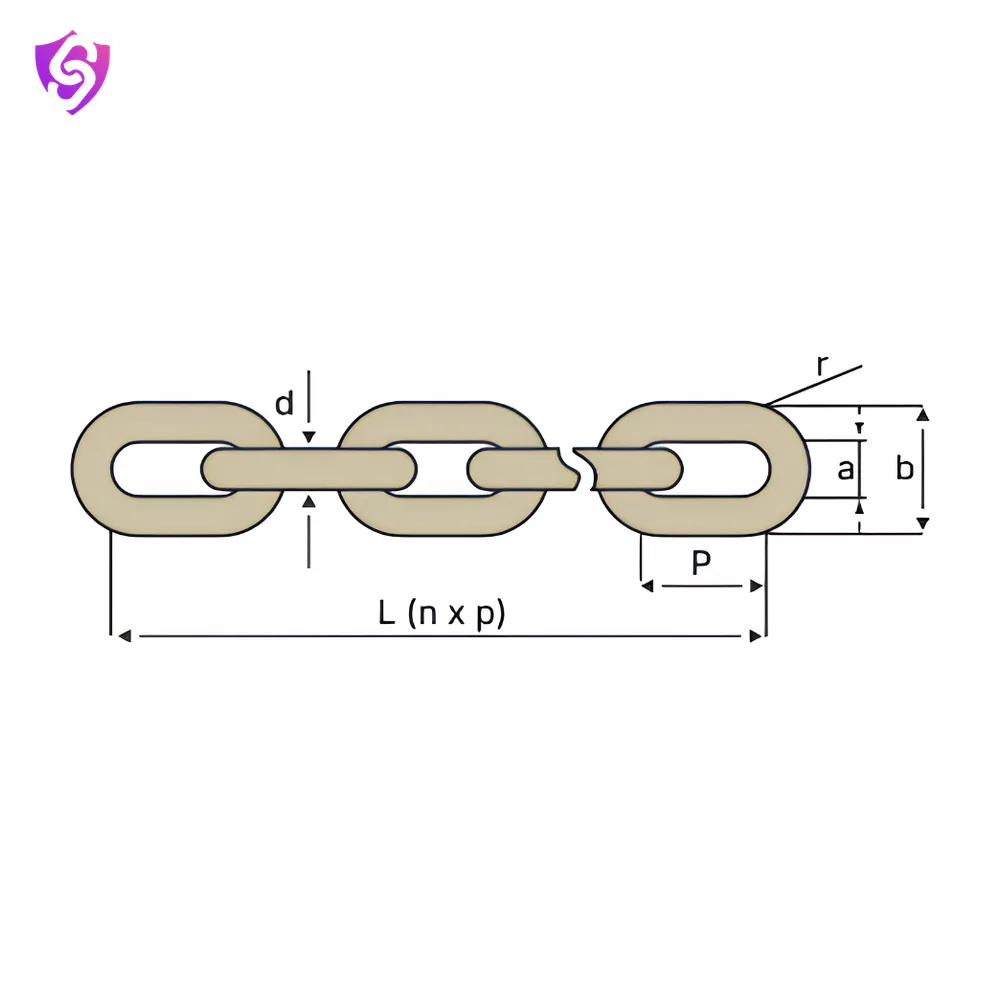

9 sizes| Size d x p (mm) | Width (Inside Min. a) | Width (Outside Max. b) | Curve Radius r (mm) |
|---|---|---|---|
| 10 x 40 | 12 | 34 | 15 |
| 14 x 50 | 17 | 48 | 22 |
| 18 x 64 | 21 | 60 | 28 |
| 19 x 64.5 | 22 | 63 | 28.5 |
| 22 x 86 | 26 | 74 | 34 |
| 24 x 86 | 28 | 79 | 37 |
| 24 x 87.5 | 28 | 79 | 37 |
| 26 x 92 | 30 | 86 | 40 |
| 30 x 108 | 34 | 98 | 46 |
Specifications
| Brand | Mega |
|---|---|
| Usage/Application | Transport / Lashing |
| Standard | ISO, EN, DIN, BS, JIS, ASTM |
| Color | Self Color / Galvanized |
| Country Of Origin | Made In India |
| Material | High-Quality Alloy Steel |
| Elongation at Test Load Max | 1.4% (Class 1), 1.6% (Class 2) |
| Breaking Elongation | 12% |
| Available Sizes | 10mm x 40mm – 30mm x 108mm |
| Surface Treatment | Self-color, Hot-dip Galvanised, Electro-Galvanized |
Key features
- Custom non-standard chains available on request
Applications
- Chain sling assembly
- Steel plants and foundries
- Heavy engineering
- Ports and yards
Care and replacement
Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
