DA-001

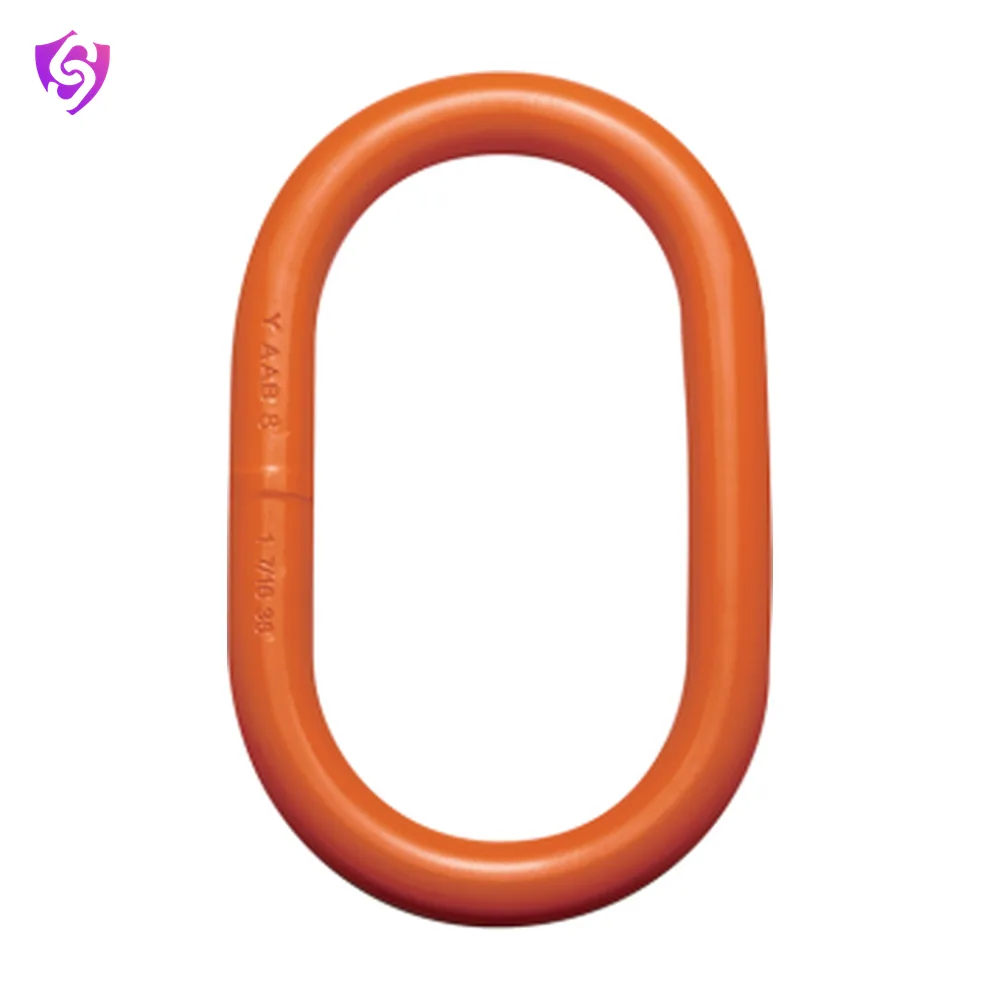

Name: Yoke DA-001
Brand: Yoke

Grade 80 alloy steel load chain, master links, master link assemblies and connecting links, the parts a chain sling is built from.

Code No · WLL β 0-45° (tonnes) · Used to single hook according to DlN 15401 NO.

DatasheetSizes, ratings, specifications

Test certificate available on request

Sizes and ratings

11 sizes

Code	Code No	WLL β 0-45° (tonnes)	Used to single hook according to DlN 15401 NO.
DA-001-13	FD-13	2.8	2.5
DA-001-16	FD-16	4	6
DA-001-19	FD-19	6.7	6
DA-001-22	FD-22	8.9	8
DA-001-25	FD-25	11.5	10
DA-001-28	FD-28	13	16
DA-001-32	FD-32	17.1	16
DA-001-36	FD-36	24	20
DA-001-40	FD-40	28.1	20
DA-001-45	FD-45	38.3	25
DA-001-50	FD-50	45	32

Specifications

Brand	Yoke
Model	DA-001
WLL β 0-45° range	2.8–45 tonnes

Applications

Chain sling assembly
Steel plants and foundries
Heavy engineering
Ports and yards

Care and replacement

Inspect chain link by link for stretch, nicks, gouges, bent links and wear at the bearing points. Remove from service any chain that has stretched or worn beyond the limits its maker gives.
